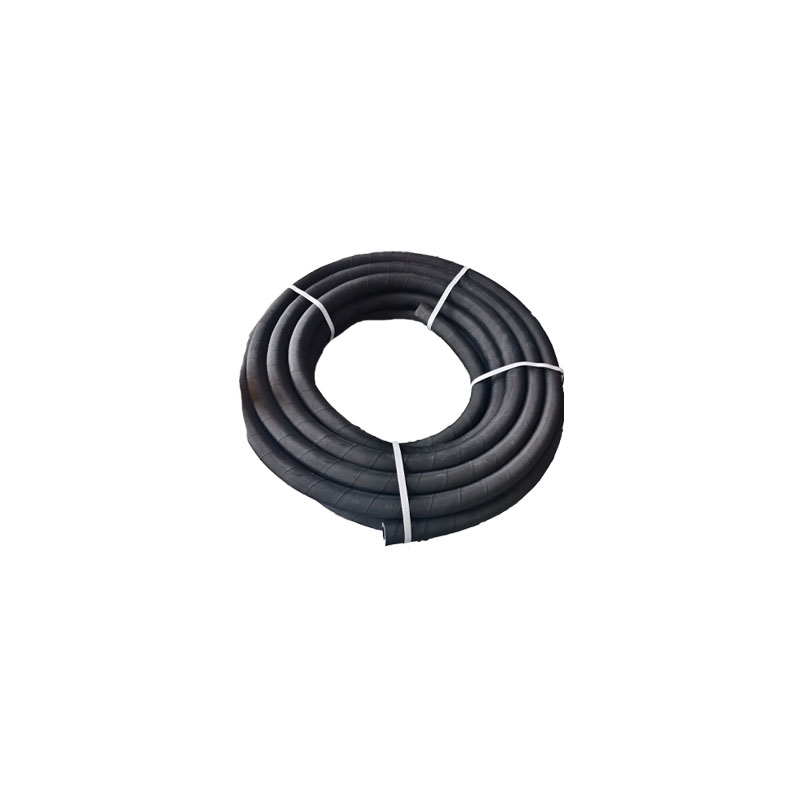

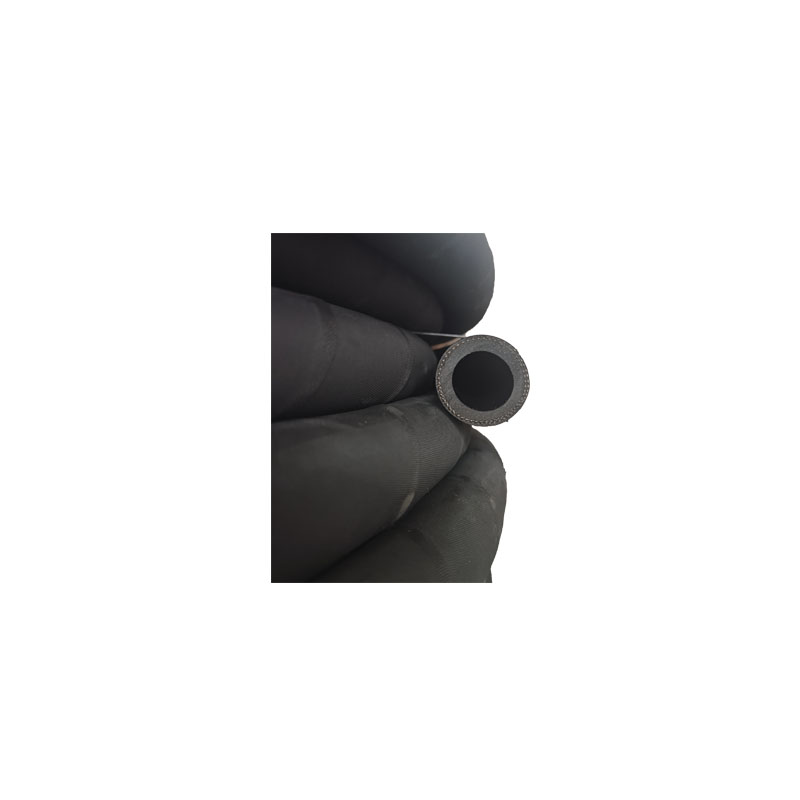

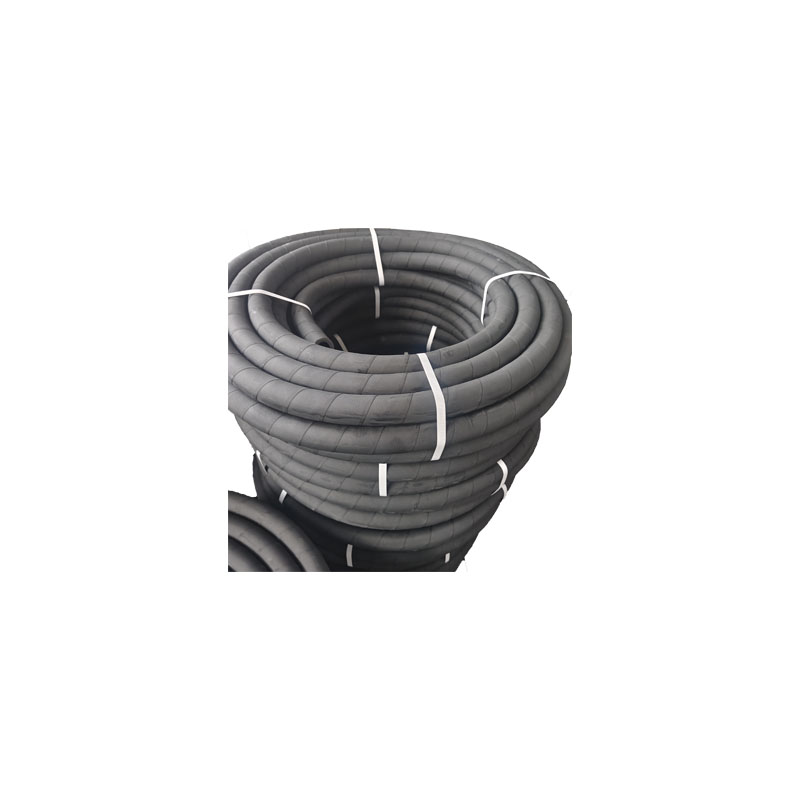

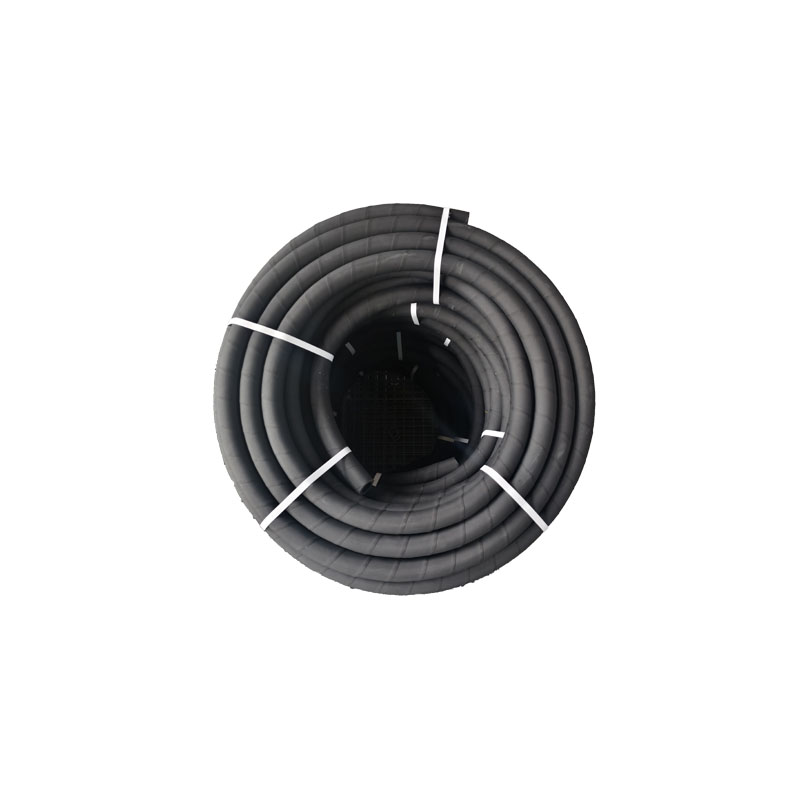

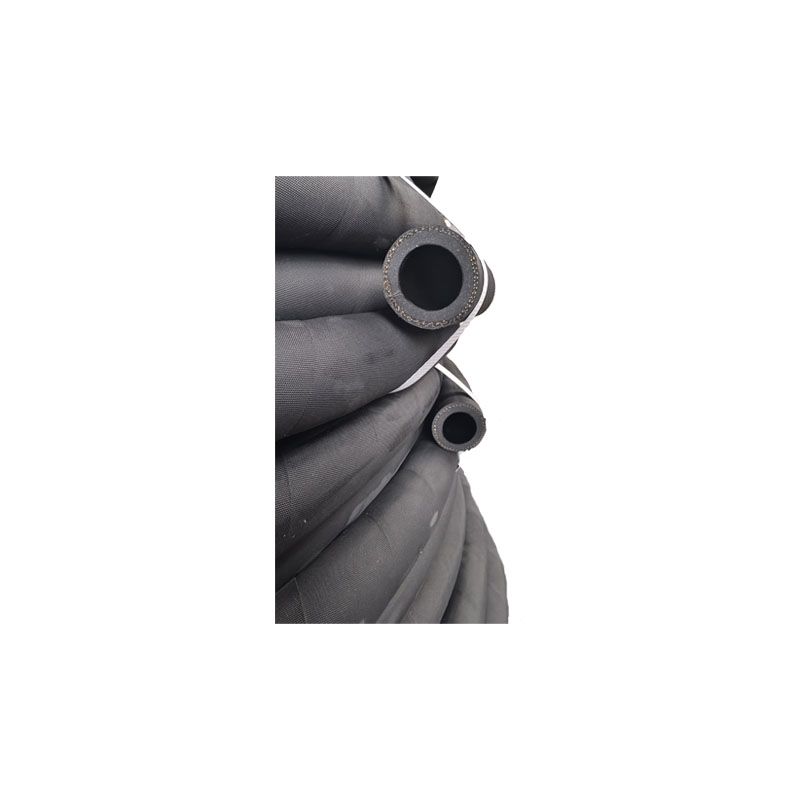

Gost Hot Water Hose With Fabric Insert ГОСТ 18698-79

Size: 12-100mm
Working pressure: 6bar/8bar/10bar
Lenght: 10m/20m/40m
Type:В(II) , Г(IV)

Availability:

Quantity:



Inquire Add to Basket

Product Description

Russia Standard: ГОСТ 18698-79 — В(II) , Г(IV)
Size: 12-100mm
Working pressure: 6bar/8bar/10bar
Lenght: 10m/20m/40m
Type:В(II) , Г(IV)
Applications: ГОСТ 18698-79 — В(II) is for water , solutions of inorganic acids and alkali concentration up to 20% (except nitric acid). ГОСТ 18698-79 — Г(IV) is for air, carbon dioxide and other inert gases
Temperature range : From -30℃ to +80 ℃

Диаметр (внутр.), мм	Диаметр (наружн.), мм	Давление, МПа	Класс	Длина, м
ID , mm	OD,mm	Pressure, Mpa	Type	Length , m
12	23	0.6;0.8;1.0	В(II) , Г(IV)	10; 20/40
16	27	0.6;0.8;1.0	В(II) , Г(IV)	10; 20/40
18	29	0.6;0.8;1.0	В(II) , Г(IV)	10; 20/40
20	31	0.6;0.8;1.0	В(II) , Г(IV)	10; 20/40
25	38	0.6;0.8;1.0	В(II) , Г(IV)	10; 20/40
32	43	0.6;0.8;1.0	В(II) , Г(IV)	10; 20/40
38	49	0.6;0.8;1.0	В(II) , Г(IV)	10; 20/40
50	62	0.6;0.8;1.0	В(II) , Г(IV)	10; 20/40
65	77	0.6;0.8;1.0	В(II) , Г(IV)	9.5; 10/40
75	87	0.6;0.8;1.0	В(II) , Г(IV)	9.5; 10/40
100	111	0.6;0.8;1.0	В(II) , Г(IV)	4;10/40

Gost Hot Water Hose With Fabric Insert ГОСТ 18698-79
