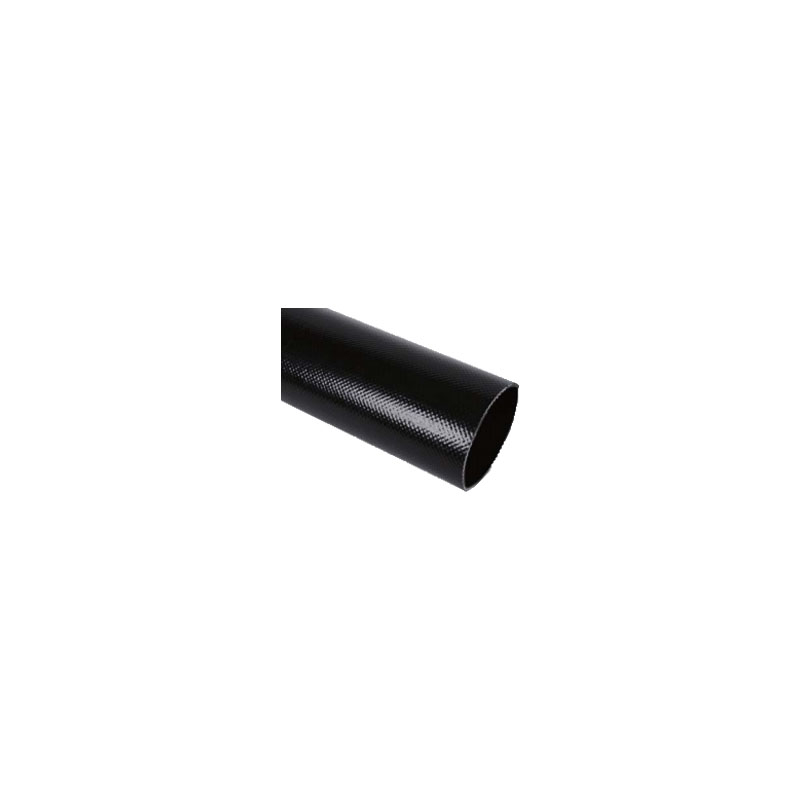

PU Layflat Hose

Application: Suitable for use and recommended for temporarily transferring oil, fuel, and produced water transfer etc.
Inner tube and cover: Smooth PU cover and tube.
Reinforcement: Circular woven polyester jacket with static wire incorporated
Operating Temperature Range: From -60° F to 176° F (-50° C to 80° C)
Standard Color: NATO Green, other colors available per request
Standard Length: 50ft, 100ft, 330ft/100m, 660ft/200m; other lengths available per request;
Couplings: Aluminum LDHC V couplings, Aluminum LDHC FM Couplings, Storz couplings, etc.
Warranty: Ten years guarantee

Availability:

Quantity:



Inquire Add to Basket

Product Description

Designed for transferring oil or fuel temporarily etc. ...

Honestflex is one type of through-the -weave polyurethane (PU) covered hose. Honestlex hoses shall be made from 100% high tenacity synthetic yarn circular woven and completely, totally embedded in the PU compound, excellent protected against mechanical damage, forming a single homogenous construction without the use of any glues or adhesives of any type.Incorporated copper wire is used to transfer static electricity.

ID		Wall Thickness		Weight		Working Pressure	Bursting Pressure
Inch	mm	Inch	mm	lbs/ft	kg/m	PSI/bar	PSI/bar
1 1/2”	35+1.5	0.09”	2.2	0.20	0.30	250PSI/17bar	750PSI/51bar
2”	51+1.5	0.11”	2.7	0.34	0.50	250PSI/17bar	750PSI/51bar
2 1/2”	64+1.5	0.12”	2.9	0.44	0.65	250PSI/17bar	750PSI/51bar
3”	76+2.0	0.12”	3.0	0.50	0.75	250PSI/17bar	750PSI/51bar
4”	103+2.0	0.13”	3.2	0.78	1.16	250PSI/17bar	750PSI/51bar
6”	153+2.5	0.17”	4.2	1.56	2.33	200PSI/14bar	600PSI/42bar
8”	204+3.0	0.175”	4.5	2.30	3.43	215PSI/15bar	645PSI/45bar
