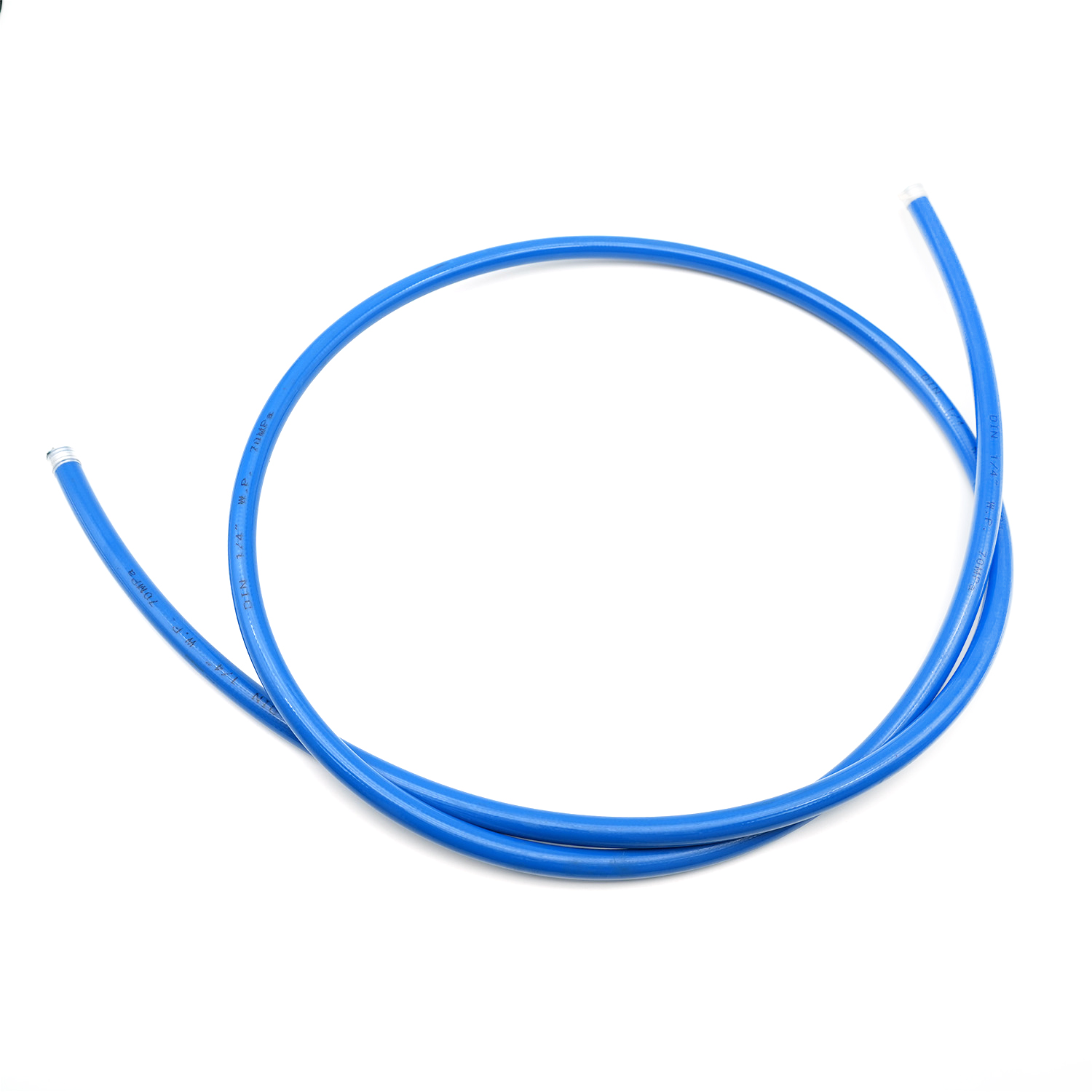

The Honestflex Paint Spray Hose are core accessories specifically developed for demanding paint spraying operations, designed to achieve stable and efficient paint delivery under high pressure. This hose features a multi-layered composite structure: the inner layer is made of seamless nylon material, ensuring chemical compatibility with various solvents and paints; the reinforcing layer uses single or double layers of high-strength aramid fiber braiding or steel wire braiding, providing excellent pressure resistance while ensuring 100% conductivity to eliminate the risk of static electricity buildup; the outer layer is made of pinhole-treated polyurethane material, giving the hose excellent abrasion resistance and flexibility. This series of hoses has excellent flattening properties, facilitating storage and operation, while effectively absorbing pressure shocks and controlling volume expansion, ensuring uniform and stable spray atomization. The operating temperature range is -40℃ to +100℃, adaptable to various working environments from cold outdoor environments to high-temperature industrial workshops.
This hose is designed for demanding fluid transport and surface treatment applications, and is widely used in professional spraying and industrial manufacturing:
High-Pressure Airless Spraying Systems:As a core connector, it links the paint pump to the spray gun, delivering various coating materials including paints, varnishes, latex paints, epoxy resins, and high-solids coatings, ensuring stable material supply under high operating pressure.
Heavy-Duty Corrosion Protection and Industrial Maintenance: Suitable for spraying operations in heavy-duty corrosion protection projects such as shipbuilding, bridge steel structures, storage tanks, and pipelines, it can withstand rust-preventive paints and chemical coatings containing strong solvents.
Chemical Production and Transportation: Its excellent chemical inertness allows for the transport of specific types of solvents, thinners, and other chemicals, meeting the liquid transfer needs of fine chemical and laboratory settings.
Professional Architectural Coating: Provides flexible material transport solutions for spraying equipment in interior and exterior wall coatings, flooring construction, and waterproofing projects, especially suitable for applications requiring frequent movement and operation in confined spaces.
This series of paint spray hoses offers significant advantages in terms of user experience, safety, and durability thanks to its technological characteristics:
Superior Lightweight and Flexible Design: Special material selection and structural design make the hose lightweight and flexible, maintaining good bending performance even in low-temperature environments. This significantly reduces operator fatigue and facilitates flexible movement on complex work surfaces such as scaffolding and aerial work platforms.
Reliable Static Electricity Dissipation: Conductive steel wires in the reinforcing layer or built-in dedicated static electricity dissipation elements safely conduct away static charges generated by high-speed friction during spraying, effectively preventing the accumulation of static sparks and ensuring safety in flammable and explosive environments.
Exceptional Abrasion and Aging Resistance: The outer polyurethane material has extremely high abrasion and cut resistance, resisting mechanical damage from dragging on the ground, friction from sharp edges, and crushing by heavy objects. This significantly extends the hose's service life in harsh environments such as construction sites.
Comprehensive Safety Compliance and Traceability: The product design follows a 3:1 safety factor, providing ample safety redundancy for high-pressure operations. The production date code at the connector enables full traceability, facilitating quality control and maintenance/replacement.
Wide media compatibility: The seamless nylon inner layer exhibits excellent resistance to most coatings, solvents, and chemical media, resisting swelling or degradation, ensuring stable spraying quality and reducing the risk of paint contamination and clogging due to hose material issues.
I.D. | O.D. | W.P. | B.P. | R | kg | ||||
mm | inch | mm | inch | MPa | psi | MPa | psi | mm | Kg/m |
6.4 | 1/4 | 12.5 | 0.49 | 22.7 | 3292 | 68.1 | 9874.5 | 30 | 0.13 |
6.4 | 1/4 | 14.0 | 0.55 | 40 | 5800 | 120 | 17400 | 55 | 0.21 |
6.4 | 1/4 | 15.5 | 0.61 | 50 | 7250 | 150 | 21750 | 70 | 0.25 |
8.0 | 5/16 | 13.5 | 0.53 | 22.7 | 3292 | 68.1 | 9874.5 | 75 | 0.21 |
8.0 | 5/16 | 15.0 | 0.59 | 40 | 5800 | 120 | 17400 | 90 | 0.35 |
8.0 | 5/16 | 16.5 | 0.65 | 50 | 7250 | 150 | 21750 | 105 | 0.39 |
9.5 | 3/8 | 16.0 | 0.62 | 22.7 | 3292 | 68.1 | 9874.5 | 80 | 0.31 |
9.5 | 3/8 | 19.1 | 0.75 | 40 | 5800 | 120 | 17400 | 127 | 0.34 |
9.5 | 3/8 | 21.5 | 0.85 | 50 | 7250 | 150 | 21750 | 135 | 0.40 |
Q1: What types of fluids can be conveyed through Paint Spray Hose?
This hose is specifically engineered for high-pressure airless spray systems, designed to deliver paints, enamels, lacquers, epoxy coatings, and high-solid content materials. It is also compatible with various solvents, thinners, and chemicals used in industrial coating applications.
Q2: What is the working temperature range of this hose?
The hose operates reliably within a temperature range of -40°C (-40°F) to +100°C (+212°F) for air and water-based fluids. For optimal performance and extended service life, the maximum recommended temperature for water-based fluids and air is +70°C (+158°F).
Q3: What sizes and pressure ratings are available?
The hose is available in standard inner diameters of 3/16 inch, 1/4 inch, and 3/8 inch. All sizes are designed to handle working pressures up to 3500 PSI, making them suitable for most industrial high-pressure spray applications.
Q4: Is this hose electrically conductive for static dissipation?
Yes, safety is a priority. The hose features either steel wire braid reinforcement or an integrated static drain element that ensures 100% electrical conductivity. This effectively dissipates static charge buildup during high-speed spraying, preventing spark hazards in flammable environments.
Q5: What is the safety factor of this paint spray hose?
The hose is engineered with a 3:1 safety factor, meaning its minimum burst pressure is three times the maximum recommended working pressure. This provides a substantial safety margin for operators working in demanding, high-pressure conditions.
Q6: Can the hose be supplied with different end fittings?

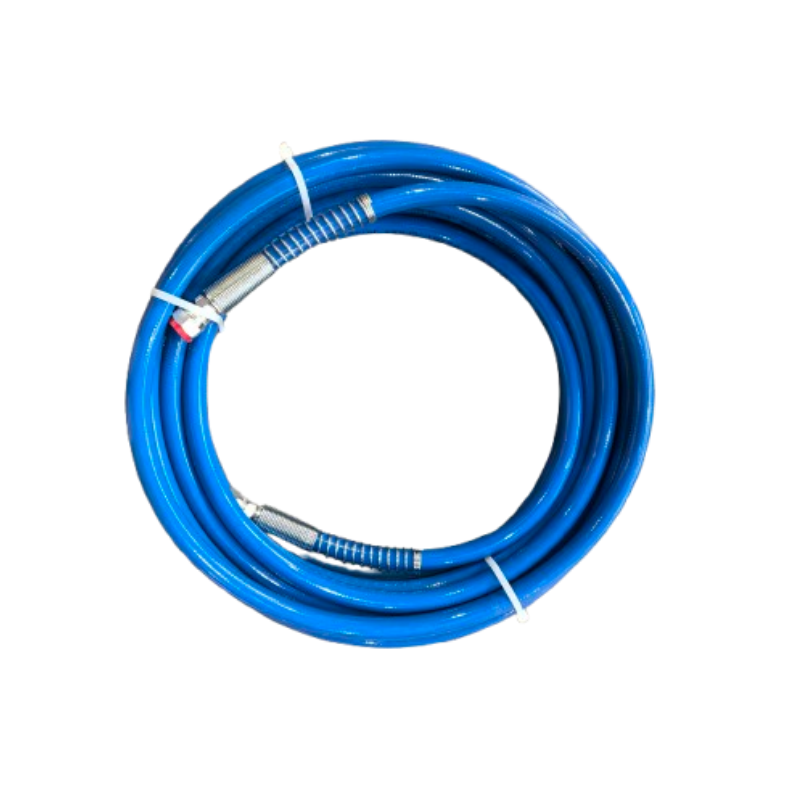

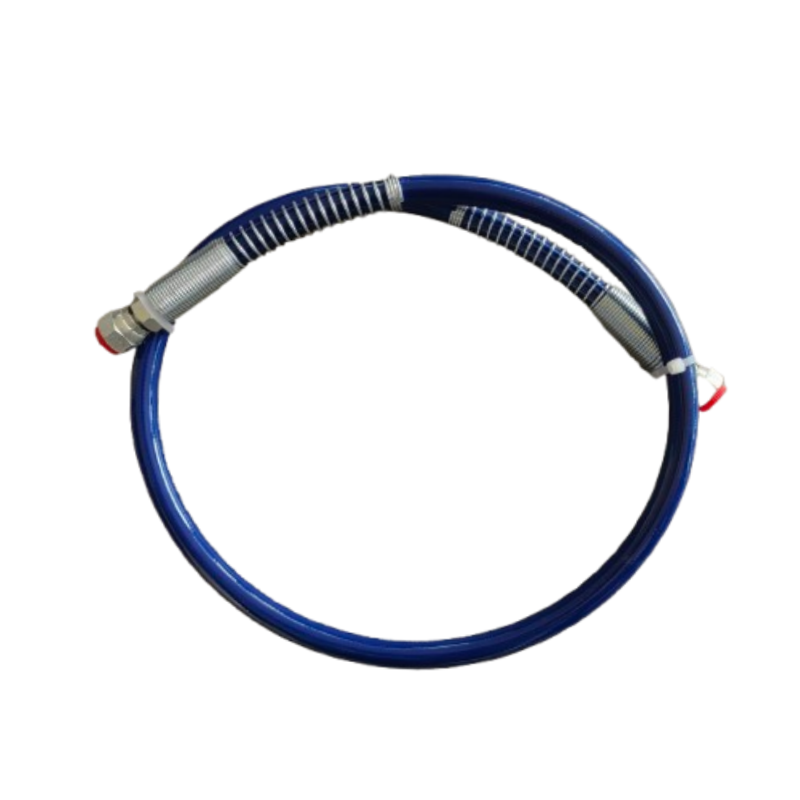

Yes, the hose can be supplied with plain ends for custom crimping, or pre-fitted with various couplings and connections. Common fittings include NPT, BSP, and JIC threads, as well as quick-connect couplers designed specifically for paint spray systems.
Q7: What is the standard hose length?
Standard lengths typically range from 15 feet (4.6 meters) to 100 feet (30 meters) or more, depending on application requirements. Custom lengths can be manufactured to meet specific project needs, with appropriate fittings attached.
Q8: Is this hose resistant to abrasion and harsh environments?
Absolutely. The outer cover is made from pin-pricked polyurethane, which offers exceptional abrasion resistance. This protective layer withstands dragging across rough surfaces, sharp edges, and continuous flexing, ensuring long-lasting performance in construction sites and industrial facilities.
Q9: Does the hose have traceability features?
Yes, quality control is enhanced through date coding on the couplings. This traceability feature allows users to track the hose's manufacturing date and production history, facilitating maintenance scheduling and regulatory compliance.
Q10: What type of reinforcement is used in this hose?

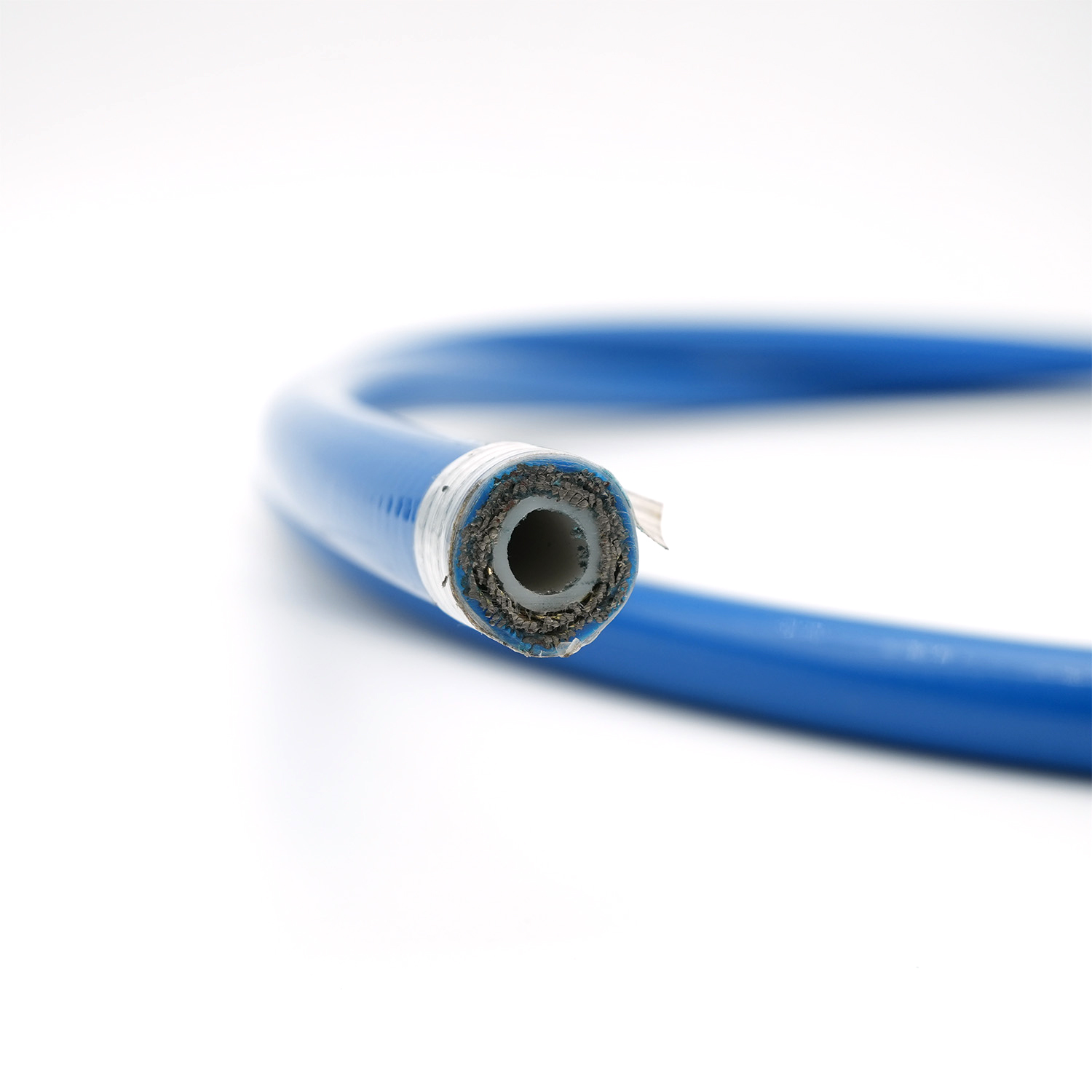

The hose features either single or double layers of high-tensile aramid fiber braid or steel wire braid. This reinforcement provides exceptional strength and pressure resistance while maintaining flexibility. The aramid version offers lightweight handling, while the steel wire version adds electrical conductivity for static dissipation.
