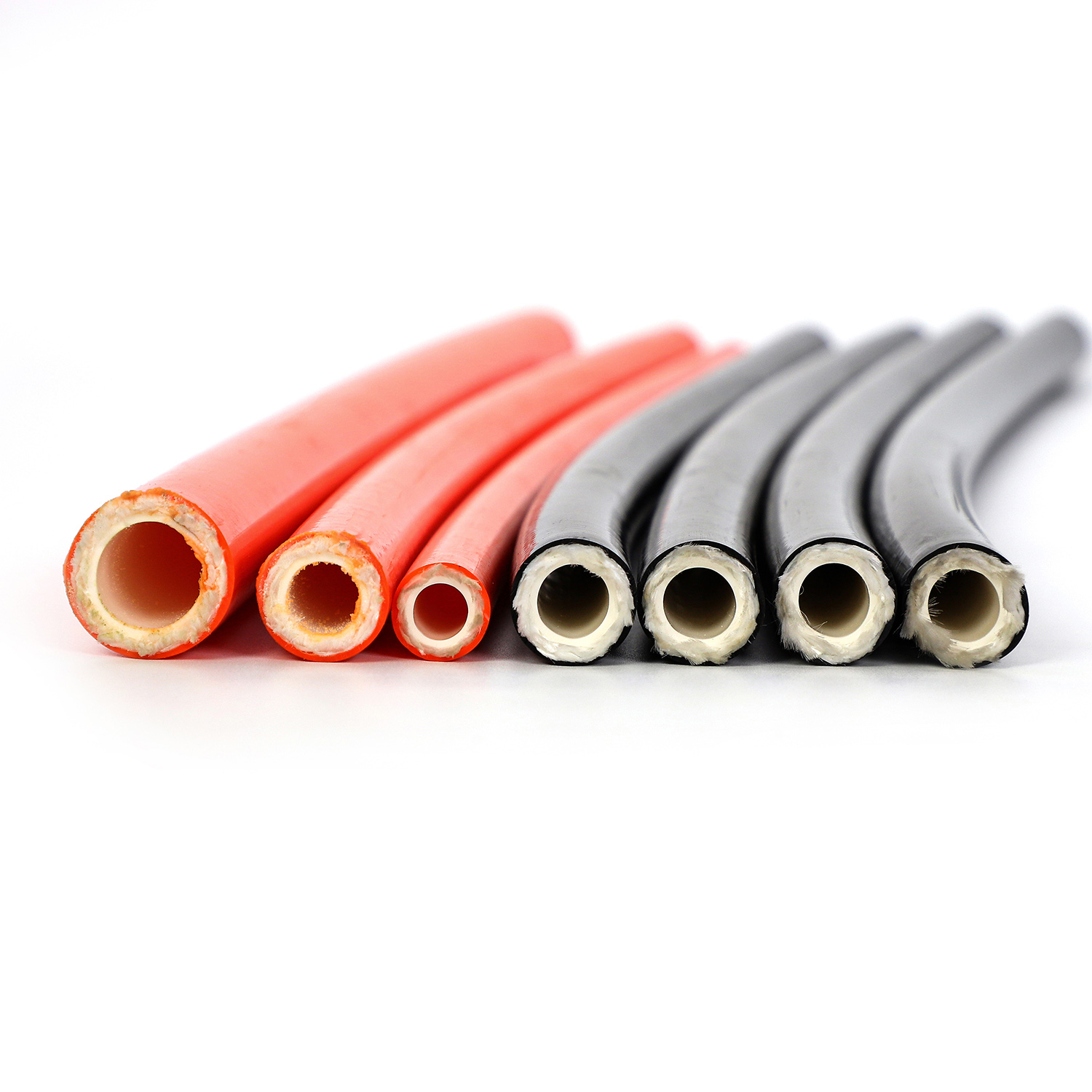

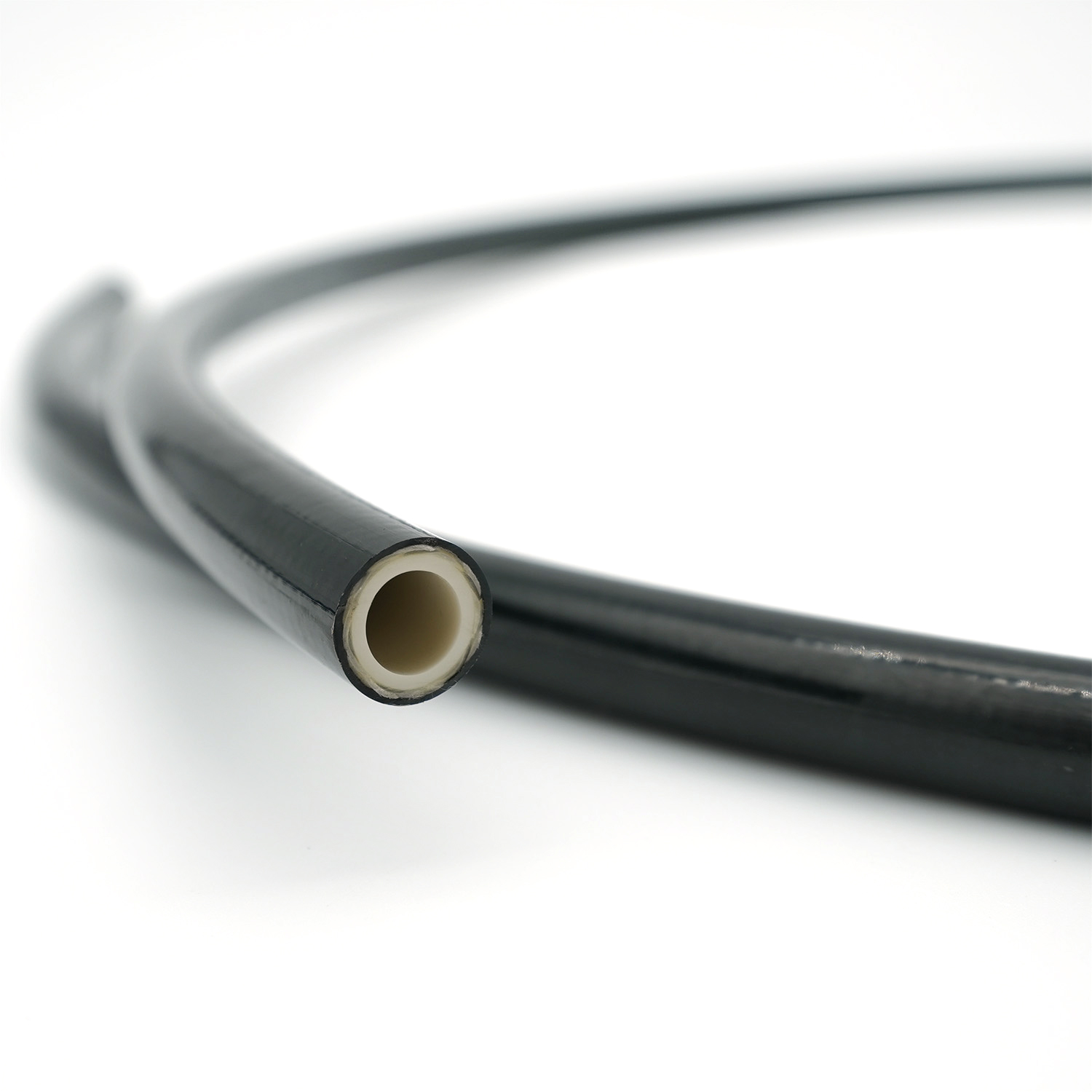

The Honestflex SAE100R7/EN855 R7 hydraulic hose is a medium-pressure hydraulic hose designed and manufactured according to the international standards of SAE 100R7 and DIN EN855 R7. It is precision-machined from all thermoplastic materials and is an ideal upgrade and replacement for traditional rubber hoses. This hose features a three-layer composite structure: the inner layer is composed of high-performance polyester elastomer (or polyamide), possessing excellent oil and chemical resistance, suitable for conveying petroleum-based hydraulic oils, synthetic ester oils, and water-based hydraulic fluids; the reinforcing layer is composed of a layer of high-tensile-strength synthetic fiber braid, ensuring the hose maintains good flexibility and dimensional stability while withstanding medium to high pressures; the outer layer is covered with highly flexible polyurethane (or nylon) material, the surface of which is usually needle-punched to release moisture, and is MSHA (Mine Safety and Health Administration) certified, possessing flame-retardant, abrasion-resistant, ozone-resistant, and UV-resistant properties. This hose is suitable for temperatures ranging from -40℃ to +100℃, with a safety factor of 4:1, making it an ideal choice for agricultural machinery, material handling equipment, and industrial hydraulic systems.
SAE100R7/EN855 R7 hydraulic hoses, due to their lightweight, flexibility, and non-conductive properties, are widely used in various hydraulic systems with special requirements for cleanliness, flexibility, and electrical insulation. Specific applications include:
Agricultural Machinery and Irrigation Equipment: Widely used in the hydraulic control circuits of tractors, combine harvesters, sprayers, and irrigation systems, resistant to sun exposure, moisture, and chemical contact during field operations.
Material Handling and Storage Equipment: Suitable for the hydraulic systems of forklifts, telescopic boom trucks, lifting platforms, and stacker cranes, especially suitable for gantry piping layouts with pulley and mast systems.
Industrial Hydraulics and Lubrication Systems:Widely used in hydraulic control and centralized lubrication systems for machine tools, presses, and automated production lines, resistant to long-term contact with mineral oils and synthetic lubricants.
Medium-Pressure Gas Transportation: Can be used for transporting compressed air, industrial gases, and some solvents; selection requires confirmation based on media compatibility.
Marine and Offshore Equipment:Some enhanced models can be used in ship deck machinery and port equipment, resistant to salt spray corrosion and high humidity environments.
Lightweight design, easier operation: The low density of thermoplastic materials means the hose weighs only about 50% of a comparable rubber hose, significantly reducing installation difficulty and operator workload. It also helps reduce the weight of mobile equipment and improve fuel economy.
Non-conductive properties, safety assurance: The outer layer and overall structure have natural electrical insulation properties, making it suitable for scenarios with strict electrical safety requirements, such as aerial work platforms and areas near electrical equipment, without the need for additional insulation.
Small bending radius, flexible routing: The excellent flexibility of thermoplastic materials results in a minimum bending radius much smaller than that of a comparable rubber hose, facilitating routing in confined spaces, reducing the number of joints, and lowering the risk of leakage.
Compact outer diameter, strong adaptability: Under the same inner diameter conditions, thermoplastic hoses have a smaller outer diameter, facilitating side-by-side laying in multi-pipe systems. They can also be manufactured in double or multi-joint structures, avoiding friction between hoses.
Excellent wear resistance: The outer polyurethane layer has 5-10 times the wear resistance of rubber, effectively resisting mechanical friction, dragging, and gravel abrasion, significantly extending the hose's service life under harsh conditions.
Excellent chemical corrosion resistance: It exhibits good resistance to mineral oils, synthetic esters, water-based hydraulic fluids, solvents, and alkaline media, and is not prone to swelling, embrittlement, or aging, offering broad media compatibility.
Ozone resistance and weather resistance: Thermoplastic materials themselves possess excellent ozone, UV resistance, and aging resistance properties. Long-term outdoor exposure will not cause cracking, fading, or hardening, making it suitable for all-weather operation.
Metric Size | Inch Size | SAE Dash size | I.D. | O.D. | Allowed Tolerance | Max W.P | Min B.P. (Mpa) | MinB.R. (mm) | W.T (g/m) | |||||
Standard | Standard(mm) | one layer | two layers | |||||||||||
mm | Inches | Dash | mm | one layer | two layers | mm | psi | psi | one layer | two layers | one layer | two layers | one layer | two layers |
5 | 3/16 | 03 | 4.8 | 10.3 | 10.8 | ±0.10 | 3045 | 3620 | 84.0 | 100.0 | 35 | 55 | 65 | 70 |
6.3 | 1/4 | 04 | 6.3 | 12.7 | 13.3 | ±0.10 | 2900 | 3980 | 80.0 | 110.0 | 50 | 75 | 80 | 125 |
8 | 5/16 | 05 | 7.9 | 14.3 | 15.0 | ±0.10 | 2755 | 3770 | 76.0 | 105.0 | 50 | 85 | 125 | 150 |
10 | 3/8 | 06 | 9.5 | 15.9 | 18.0 | ±0.10 | 2540 | 3620 | 70.0 | 100.0 | 80 | 100 | 140 | 210 |
12.5 | 1/2 | 08 | 12.7 | 19.8 | 21.6 | ±0.15 | 2030 | 3040 | 56.0 | 84.0 | 100 | 140 | 200 | 260 |
16 | 5/8 | 10 | 15.9 | 23.3 | 23.6 | ±0.15 | 1885 | 2320 | 52.0 | 64.0 | 160 | 165 | 260 | 295 |
19 | 3/4 | 12 | 18.9 | 26.5 | 26.4 | ±0.15 | 1305 | 2030 | 36.0 | 56.0 | 180 | 195 | 320 | 315 |
25 | 1 | 16 | 25.4 | 34.0 | 34.0 | ±0.20 | 1015 | 1520 | 28.0 | 42.0 | 250 | 256 | 400 | 450 |
Q1: What types of hydraulic fluids is the EN855 R7 hose compatible with?
This hose is compatible with a broad range of standard hydraulic oils, including mineral-based oils, HFA/HFB fire-resistant fluids, and water-glycol solutions, making it versatile for most industrial hydraulic systems.
Q2: What is the operational temperature range for this hose?
It is designed to function reliably within a temperature range of -40°C (-40°F) to +100°C (+212°F), accommodating both cold-start conditions and high-temperature operations.
Q3: What distinguishes the R7 type from other hydraulic hoses?
The EN855 R7 hose is classified as a high-pressure hose with textile braid reinforcement. It is engineered for applications requiring excellent flexibility combined with high working pressure and superior impulse fatigue resistance.
Q4: What are its typical size and pressure specifications?
Available in various inner diameters, it offers high working pressure ratings as defined by the EN855 R7 standard. Specific pressure and size combinations are available upon inquiry, and custom assemblies can be provided.
Q5: What end connection options are available?
The hose can be supplied with a wide array of permanent crimped fittings, including metric, BSP, and JIC types, tailored to create secure, leak-free connections for your specific hydraulic circuit layout.
Q6: Which industry standard does this product meet?
This hose is manufactured to comply with the European EN855 standard, specifically meeting all requirements for Type R7. This certification ensures consistent quality, performance, and safety for hydraulic applications.

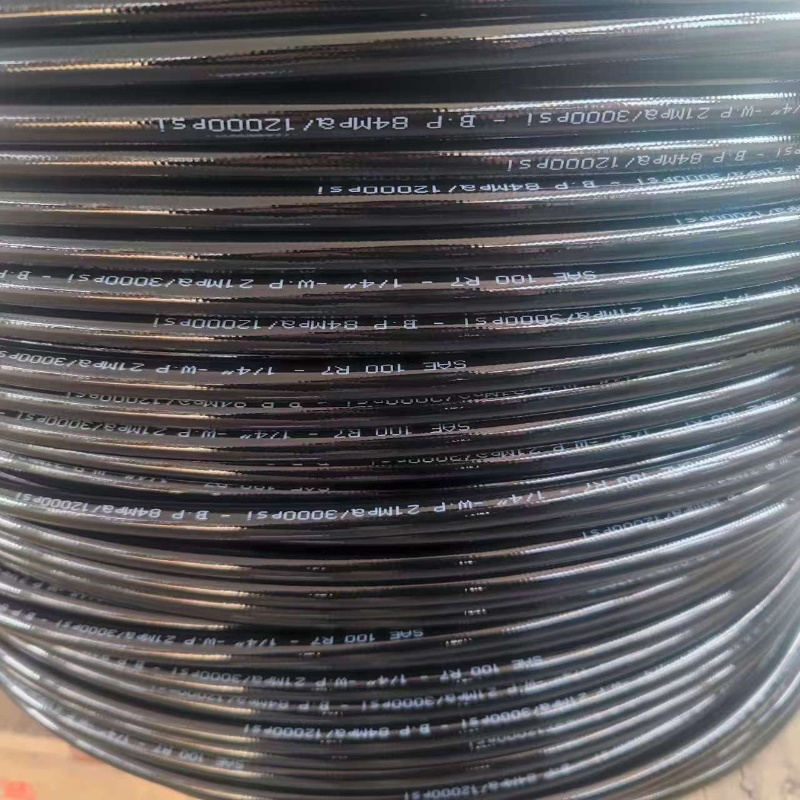

Q7: How is this hydraulic hose typically supplied?
It is commonly supplied in long, continuous lengths on reels or in straight lengths for fabrication into custom assemblies. Standard pre-made assemblies in common lengths are also available.
Q8: Can it withstand harsh environments like outdoor use?
Yes, its robust synthetic rubber cover provides excellent resistance to abrasion, weathering, ozone, and many chemicals, ensuring durable performance in both indoor and demanding outdoor settings.
Q9: Is it suitable for high-pressure pumps and dynamic machinery?
Absolutely. It is ideally suited for use with high-pressure piston and gear pumps, and for connecting to moving parts on industrial and mobile machinery where flexibility and pressure endurance are critical.
Q10: What is the reinforcement structure of this hose?
The hose is reinforced with multiple high-tensile synthetic textile braids, providing the necessary strength for high-pressure operation while maintaining greater flexibility compared to spiral wire reinforced hoses.
