Views: 0 Author: Site Editor Publish Time: 2026-03-18 Origin: Site
Hydraulic hoses are the backbone of efficient fluid power systems, and choosing the right one can save time, money, and headaches. The S.T.A.M.P.E.D. process makes this task simple, guiding you through Size, Temperature, Application, Material, Pressure, Ends, and Delivery. By following these seven factors, you can match hoses to your system’s needs, prevent leaks, and ensure long-lasting performance. Whether you’re maintaining heavy machinery or designing new equipment, understanding hydraulic hoses and their specifications is key to keeping operations smooth and safe.
The S.T.A.M.P.E.D. process is a simple tool for picking the right hydraulic hose. Its name comes from the first letters of seven key factors: Size, Temperature, Application, Material, Pressure, Ends, Delivery. Engineers, technicians, and maintenance teams use it every day to quickly match hoses to system needs. It makes hose selection easier. Instead of guessing or checking dozens of specs, you just follow the seven steps. Each factor reminds you of a critical aspect that affects safety, efficiency, and hose life.
Using S.T.A.M.P.E.D. also helps prevent common mistakes. People often choose hoses too small, incompatible with fluid, or unable to handle pressure spikes. Following this method keeps you from skipping anything important.

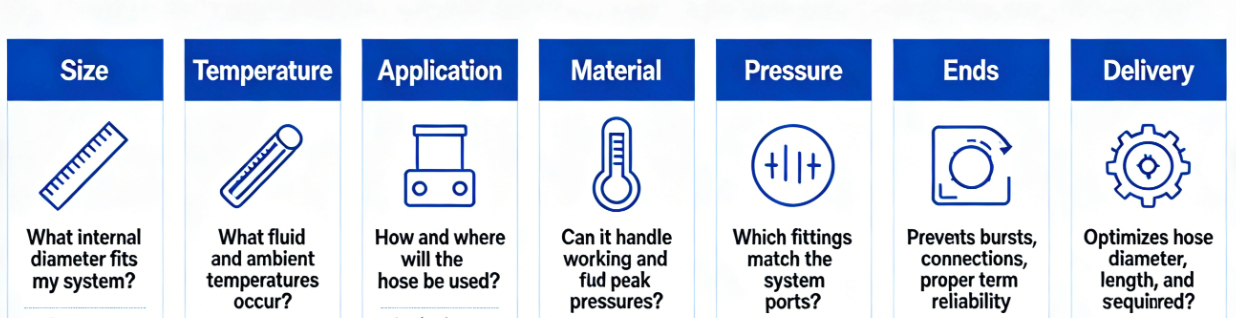

Here’s a quick look at each component:
Factor | Key Question to Ask | Why it Matters |
|---|---|---|
Size | What internal diameter fits my system? | Prevents pressure drops, turbulence, overheating |
Temperature | What fluid and ambient temperatures occur? | Ensures materials don’t degrade or fail |
Application | How and where will the hose be used? | Guides bend radius, flexibility, and cover selection |
Material | Is the hose compatible with fluid and fittings? | Avoids leaks, swelling, or chemical damage |
Pressure | Can it handle working and peak pressures? | Prevents bursts, ensures long-term reliability |
Ends | Which fittings match the system ports? | Secures leak-free connections, proper installation |
Delivery | How much fluid and flow is required? | Optimizes hose diameter, length, and system efficiency |
We can think of it like a checklist. Tick off each factor before buying. It keeps the system safe, reduces costly errors, and helps the hose last longer. Using it is faster than reading through technical sheets alone.
Choosing the correct hose size is one of the most important steps in hydraulic system design. The wrong size can lead to inefficiency, excessive wear, or even system failure.
Hose size directly affects flow rate and system efficiency. Too small an internal diameter (ID) increases fluid velocity, which can cause turbulence, heat buildup, and pressure drops. Too large, and the system may waste energy, cost more, and be harder to handle.
Inner Diameter (ID): Determines how much fluid can pass through the hose. Critical for pressure and flow calculations.
Outer Diameter (OD): Includes wall thickness. Important for fittings, space constraints, and bending allowances.
Measure the hose end-to-end, including fittings.
Consider system layout, bends, and movement.
Allow tolerance for expansion, contraction, and vibration.
Even a small miscalculation in length or diameter can affect performance.
Pressure Drops: Reduced efficiency and power at actuators.
Turbulence: Can cause vibration, noise, and premature wear.
Overheating: Excess friction generates heat, degrading hose material.
Standard | Nominal Size | Typical Use |
|---|---|---|
SAE 100R1 / EN 853 1SN | -4 (1/4") | Light-duty hydraulic lines |
SAE 100R2 / EN 853 2SN | -6 (3/8") | Medium-pressure machinery |
SAE 100R7 / R14 | -8 (1/2") | Construction, agricultural equipment |
SAE 100R12 / R13 | -12 (3/4") | Heavy-duty industrial hydraulics |
SAE 100R16 / R17 | -16 (1") | High-flow large-scale applications |
Temperature plays a huge role in hydraulic hose performance. Both the fluid and ambient conditions matter.
Fluid Temperature: The heat of the hydraulic fluid affects the inner tube material. Too hot, it can soften or degrade. Too cold, it can harden or crack.
Ambient Temperature: External environment impacts the outer cover. Sun, cold, or hot machinery nearby can reduce hose lifespan.
High temperatures accelerate wear, reduce flexibility, and may weaken reinforcement layers.
Low temperatures can make hoses brittle, increasing risk of cracking or bursting.
Sudden temperature spikes may temporarily exceed ratings, stressing the hose.
Heat Shields: Block radiant heat from engines, exhausts, or manifolds.
Thermal Wraps: Protect hoses from localized hot spots or prolonged heat exposure.
Insulation Sleeves: Keep fluid temperature stable and reduce temperature cycling damage.
Hoses for high heat often use synthetic rubbers or multi-layer reinforcement.
Cold-weather hoses use materials that retain flexibility at low temperatures.
Always verify manufacturer temperature ratings before installation.
Knowing how a hose will be used is key. It helps prevent failures and optimizes performance.
High Impulse Systems: Frequent pressure spikes require hoses with strong reinforcement.
Low Impulse Systems: More relaxed pressure conditions allow standard hoses.
Flexing Environments: Constant movement demands flexible hoses to prevent cracking.
Non-Flexing Environments: Stationary hoses focus more on pressure and abrasion resistance.
Abrasion: Hoses rubbing against surfaces need tough outer covers.
Chemicals: Some fluids or surroundings degrade ordinary hose materials.
UV & Ozone: Sunlight and ozone can weaken synthetic covers.
Vibration: Constant vibration stresses the reinforcement, reducing lifespan.
A hose bent tighter than its minimum radius can kink.
Kinks reduce flow, create turbulence, and damage internal layers.
Always check manufacturer specs for safe bending limits.
Industry | Common Hose Requirements |
|---|---|
Mining | Abrasion-resistant, high-pressure, flexible for vibration |
Industrial Plants | Chemical-resistant, temperature-tolerant, high-impulse |
Agriculture | UV-resistant, flexible for machinery movement |
Marine | Saltwater-resistant, high-pressure, durable covers |
Choosing the right material keeps hoses reliable and prevents leaks. It affects hose lifespan and safety.
Inner Tube: Must resist chemical attack from hydraulic fluids. Common options: nitrile, EPDM, thermoplastic.
Outer Cover: Protects from abrasion, UV, ozone, and environmental hazards. Materials: neoprene, polyurethane, PVC.
Check the fluid type before choosing hoses.
Mineral Oils: Standard rubber or synthetic inner tubes usually work.
Bio-Oils: Require specific elastomers resistant to swelling.
Synthetic Fluids: Some hoses need thermoplastic or reinforced materials for stability.
Fittings and O-rings must match both hose and fluid.
Wrong material can cause leaks, corrosion, or swelling.
Common O-ring materials: nitrile, Viton, EPDM depending on fluid.
Flame Resistance: For high-heat or industrial applications.
Non-Conductivity: Critical in electrical or sensitive equipment zones.
Abrasion Resistance: Needed for hoses exposed to rough surfaces or frequent movement.
Hose Component | Typical Material | Purpose |
|---|---|---|
Inner Tube | Nitrile, EPDM, Thermoplastic | Fluid containment and chemical resistance |
Outer Cover | Neoprene, Polyurethane, PVC | Environmental protection and abrasion resistance |
O-Rings | Nitrile, Viton, EPDM | Sealing and chemical compatibility |
Fittings | Steel, Brass, Stainless Steel | Mechanical strength and pressure rating |
Pressure determines hose safety and reliability. Choosing wrong can cause leaks or bursts.
Working Pressure: Max pressure hose can handle continuously.
Burst Pressure: Absolute max before failure.
Always ensure working pressure < burst pressure for safe operation.
Systems experience spikes from pumps, valves, and actuators.
Hoses must withstand sudden pressure surges without damage.
Consider vibration and cyclic loads in dynamic applications.
Industry standard: 4:1 ratio (burst pressure ÷ working pressure).
This ensures extra margin for unexpected spikes or system anomalies.
Reduces risk of hose failure and improves longevity.
Hose Line Type | Typical Pressure Notes |
|---|---|
Supply Line | High flow, continuous pressure, must handle system max |
Return Line | Usually lower pressure, still check compatibility |
Suction Line | Negative pressure, avoid collapse, check flexibility |
Pilot Line | Low flow, precise pressure, may require small bore hose |
Hose ends are critical for leak-free, safe operation. Picking the right one avoids failure.
NPT (National Pipe Taper): Mechanical seal, common in North America.
JIC (SAE 37° Flare): Metal-to-metal seal, widely used in industrial hydraulics.
ORFS (O-Ring Face Seal): Excellent for high-pressure leak prevention.
BSP (British Standard Pipe): Standard outside North America.
Metric Fittings: Popular in European and Asian machinery.
Ensure thread type matches port for proper sealing.
Fittings must handle the same pressure rating as the hose.
Incorrect fittings can cause leaks, bursts, or system downtime.
Proper crimp ensures secure connection without damaging hose.
Avoid under-crimping: fitting can blow off under pressure.
Avoid over-crimping: hose structure can weaken, reducing lifespan.
Use manufacturer-recommended crimping tools and gauges.
Inspect fittings and hose ends before installation for safety.
Hose delivery affects system efficiency and safety. Proper handling prevents costly issues.
Correct length prevents tension, pressure loss, and hose fatigue.
Avoid sharp bends, twists, or routes over abrasive surfaces.
Slight slack helps absorb movement, vibration, and thermal expansion.
Hose Type | Impact on System |
|---|---|
Oversized | Adds weight, bulk, and cost; may reduce efficiency. |
Undersized | Increases pressure loss; reduces flow rate and performance. |
Always respect the manufacturer’s minimum bend radius.
Use clamps, protectors, or spiral wraps for grouped hoses.
Check routing for potential friction points or heat exposure.
Inspect hoses for damage before installation.
Record delivery details for warranty and maintenance tracking.
Handle hoses carefully to prevent nicks, cuts, or contamination.
Selecting the right hydraulic hoses doesn’t have to feel overwhelming. Using the S.T.A.M.P.E.D. process helps you tackle each factor step by step, from hose diameter to fittings and flow delivery. By thinking through application, temperature, and pressure, you can avoid costly downtime and maximize efficiency.
For businesses seeking reliable solutions, Qingdao Honest Rubber Co., Ltd. provides high-quality hoses and fittings built to meet demanding industrial standards. Start applying S.T.A.M.P.E.D. today and see your hydraulic systems perform better than ever.
S.T.A.M.P.E.D. stands for Size, Temperature, Application, Material, Pressure, Ends, Delivery, which are seven key factors to consider when selecting a hose.
It simplifies hose selection, ensures compatibility, prevents failures, and improves system safety and efficiency.
Hose size is based on flow rate, pressure, and system layout. Consider both inner diameter (ID) and length to prevent pressure loss or turbulence.
Working pressure is the maximum safe operating pressure. Burst pressure is the absolute limit before the hose fails. Safety factors are applied to avoid accidents.
Consider the type of hydraulic fluid (mineral oil, bio-oil, synthetic) and ensure the inner tube, fittings, and O-rings are compatible to prevent leaks or degradation.
