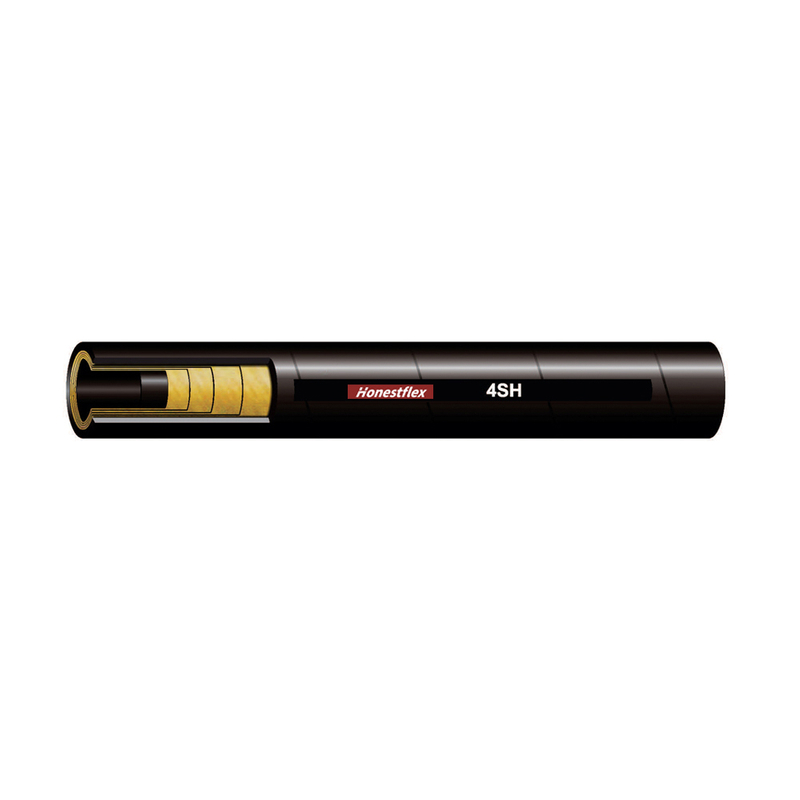

The DIN EN856 4SH Hydraulic Hose is a premium high-pressure hose designed for industrial hydraulic systems. Constructed with a black, oil-resistant synthetic rubber inner tube and four layers of high-tensile steel wire spirals, this hose delivers exceptional strength, durability, and flexibility. Its abrasion-, weather-, and ozone-resistant cover ensures long-lasting performance in harsh working conditions.
Tube Material: Black, oil-resistant synthetic rubber
Reinforcement: Four layers of high-tensile steel wire spirals.
Cover: Abrasion, weather, and ozone-resistant synthetic rubber.
Temperature Range: -40°C to +100°C (-40°F to +212°F); intermittent up to +120°C (+248°F).
Pressure Ratings: Working Pressure up to 42 MPa (6090 psi), Burst Pressure up to 168 MPa (24360 psi).
Impulse Resistance: Tested to 1,000,000 impulse cycles.
Certifications: EN 856 4SH, ISO 3862, MSHA approved.
Fluid Compatibility: Suitable for petroleum-based hydraulic fluids, glycol, mineral oil, fuel, water, and air.
Inner Tube: The inner tube is made from black synthetic rubber, providing excellent resistance to abrasion, corrosion, and oil. This material ensures the hose remains durable and reliable, even when handling demanding fluids.
Reinforcement: The hose features four layers of high-tensile, high-strength spiraled steel wire. This robust reinforcement makes the hose highly resistant to high pressure, ensuring it can withstand the most demanding industrial applications.
Cover: The outer cover is crafted from high-quality black synthetic rubber, offering protection against abrasion, corrosion, weather, ozone, cuts, oil, and aging. This durable cover ensures the hose remains functional in harsh environments.
Metric Size | Inch Size | SAE Dash size | I.D. | Braid | 0.D. | Max W.P. | Min B.P. | Min B.R. | Weight | ||||
(mm) | (mm) | (mm) | |||||||||||
mm | inches | Dash | Min | Max | Min | Max | Min | Max | Mpa | psi | Mpa | mm | Kg/m |
19 | 3/4 | 12 | 18.6 | 19.8 | 27.6 | 29.2 | 31.4 | 33.0 | 42.0 | 6090 | 168.0 | 280.0 | 1.64 |
25 | 1 | 16 | 25.0 | 26.4 | 34.4 | 36.0 | 37.5 | 39.9 | 38.0 | 5510 | 152.0 | 340.0 | 2.03 |
31.5 | 1-1/4 | 20 | 31.4 | 33.0 | 40.9 | 42.9 | 43.9 | 47.1 | 32.5 | 4713 | 130.0 | 460.0 | 2.45 |
38 | 1-1/2 | 24 | 37.7 | 39.3 | 47.8 | 49.8 | 51.9 | 55.1 | 29.0 | 4205 | 116.0 | 560.0 | 3.35 |
51 | 2 | 32 | 50.4 | 52.0 | 62.2 | 64.2 | 66.5 | 69.7 | 25.0 | 3625 | 100.0 | 700.0 | 4.5 |
| Feature | EN 856 4SP | EN 856 4SH |
|---|---|---|
| Reinforcement | Four layers of steel wire spirals (spiral) | Four layers of steel wire spirals (spiral) |
| Working Pressure | Generally slightly lower than 4SH | Higher working pressure for ultra-high applications |
| Impulse Resistance | Lower, suitable for medium/high-pressure systems | Tested to 1,000,000 impulse cycles for extreme conditions |
| Typical Applications | General industrial hydraulic systems | Heavy-duty construction, mining, and oil & gas operations |
| Temperature Range | -40°C to +100°C (-40°F to +212°F) | Same as 4SP, intermittent use up to +120°C (+248°F) |
| Certifications | EN 856 4SP, ISO 3862 | EN 856 4SH, ISO 3862, MSHA approved |
Summary: EN 856 4SH is designed for higher pressure, extreme duty, and more rigorous hydraulic applications compared to 4SP. It offers superior impulse resistance and is widely used in construction, mining, and oil & gas industries.
The DIN EN856 4SH hose is widely used in industries requiring ultra-high-pressure hydraulic solutions:
Construction Machinery: Excavators, cranes, loaders
Mining Equipment: Heavy-duty drilling and material handling
Agriculture: Tractors, harvesters, and irrigation systems
Forestry: Logging equipment and hydraulic lifts
Marine: Shipboard hydraulic systems
Oil & Gas: Drilling platforms and fluid transfer
High Pressure Resistance: Designed to withstand extreme hydraulic pressures
Durability: Four-layer steel wire reinforcement ensures long service life
Flexibility: Maintains excellent bend radius and flexibility under pressure
Safety: Meets stringent industry standards for quality and performance
Wide Temperature Range: Performs in both cold and hot environmental conditions
Installation: Ensure correct fittings to prevent leaks and ensure safety
Inspection: Regularly check for signs of wear, cracks, or damage
Storage: Store in a cool, dry place away from sunlight and heat sources
Maintenance: Clean and inspect hoses periodically to extend service life
A5: Construction, mining, agriculture, forestry, marine, and oil & gas industries.
A7: Yes, tested to 1,000,000 impulse cycles for high reliability in hydraulic systems.
Ready to equip your hydraulic system with a high-pressure, durable hose?
[Inquire Now] to get your DIN EN856 4SH Hydraulic Hose today.
