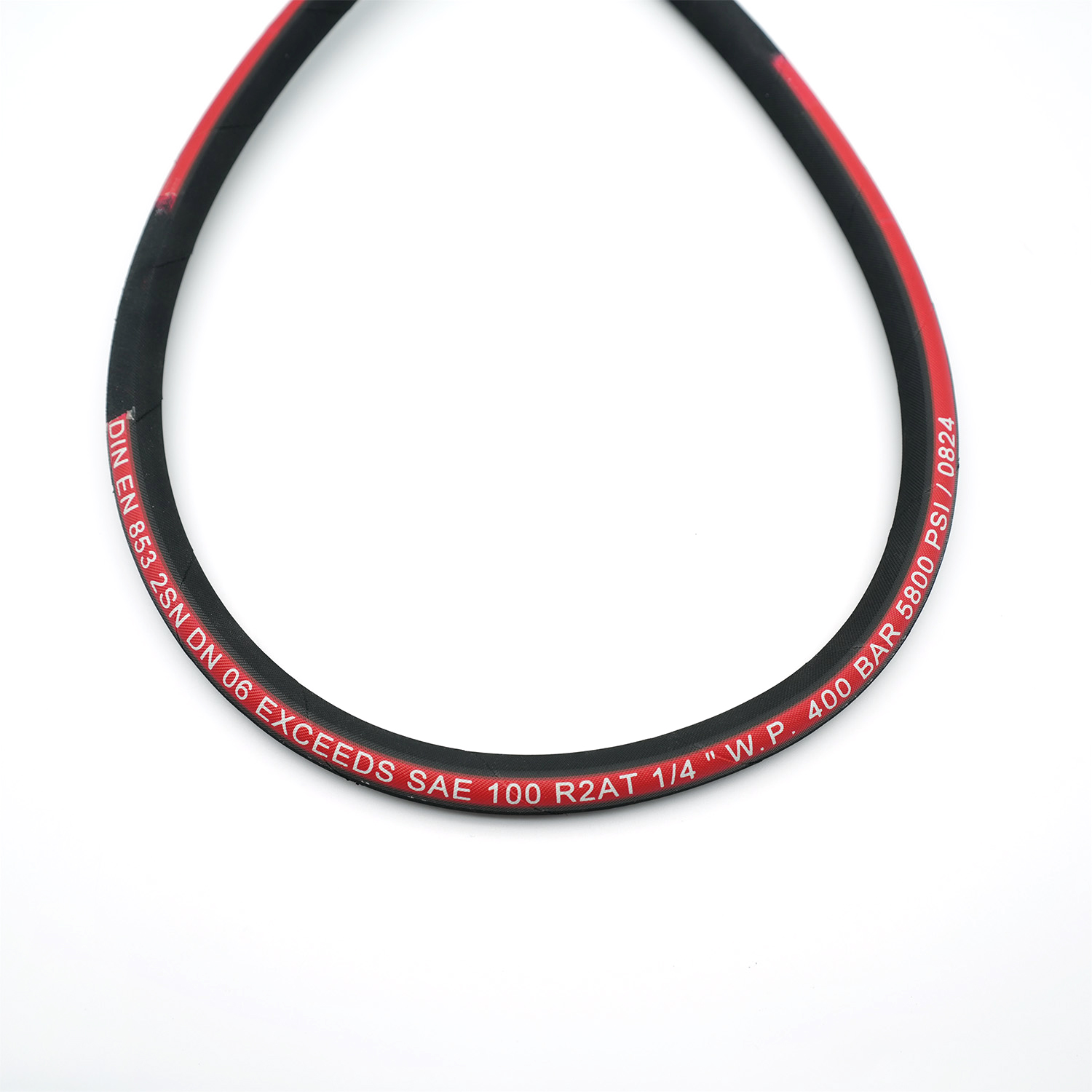

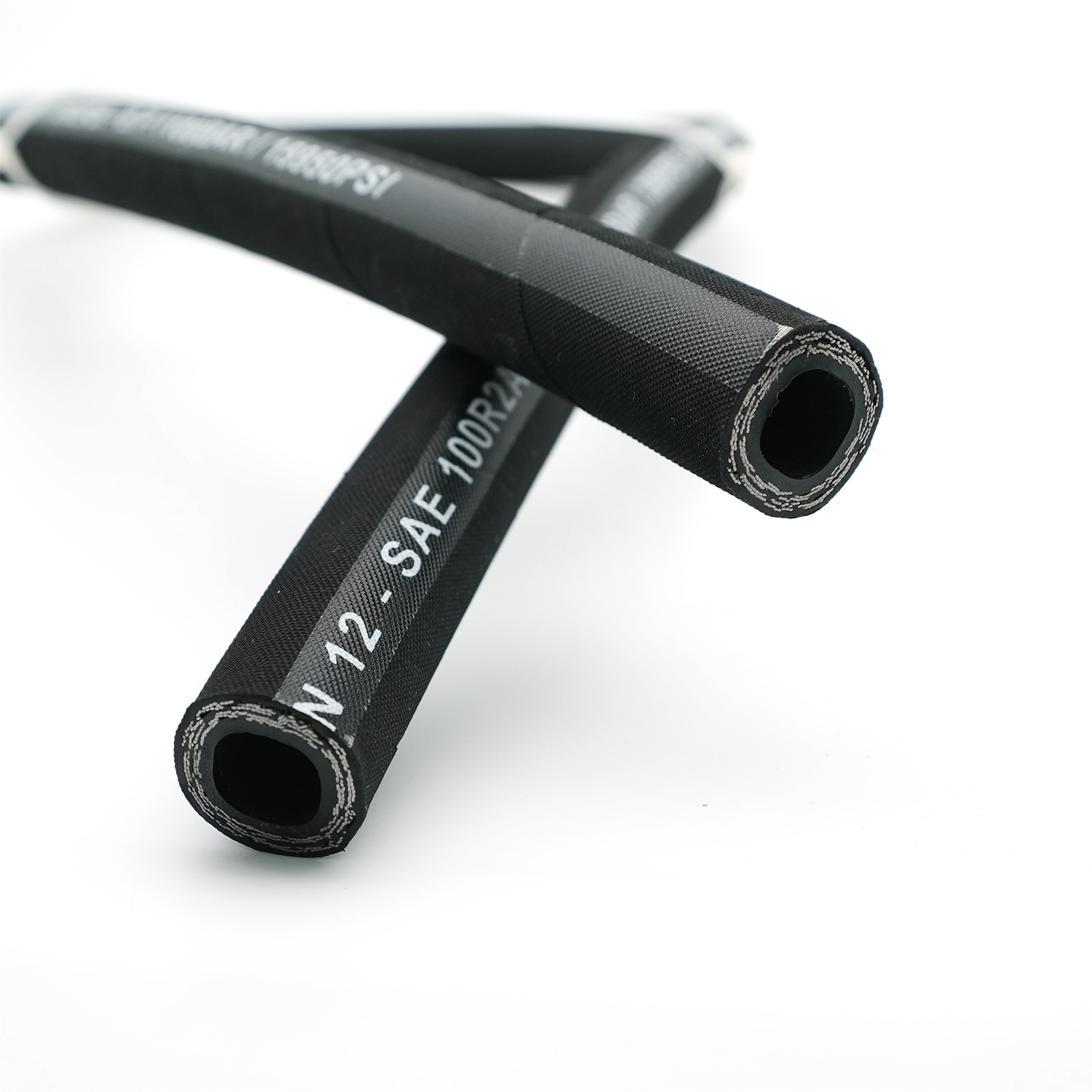

Honestflex DIN EN853 2SN / SAE 100R2AT Hydraulic Hose Assemblies are designed with precision and functionality in mind. These assemblies come with male NPT (National Pipe Thread) fittings at both ends of the hose. This configuration ensures a seamless and efficient connection, enabling quick and secure attachment to the hose.

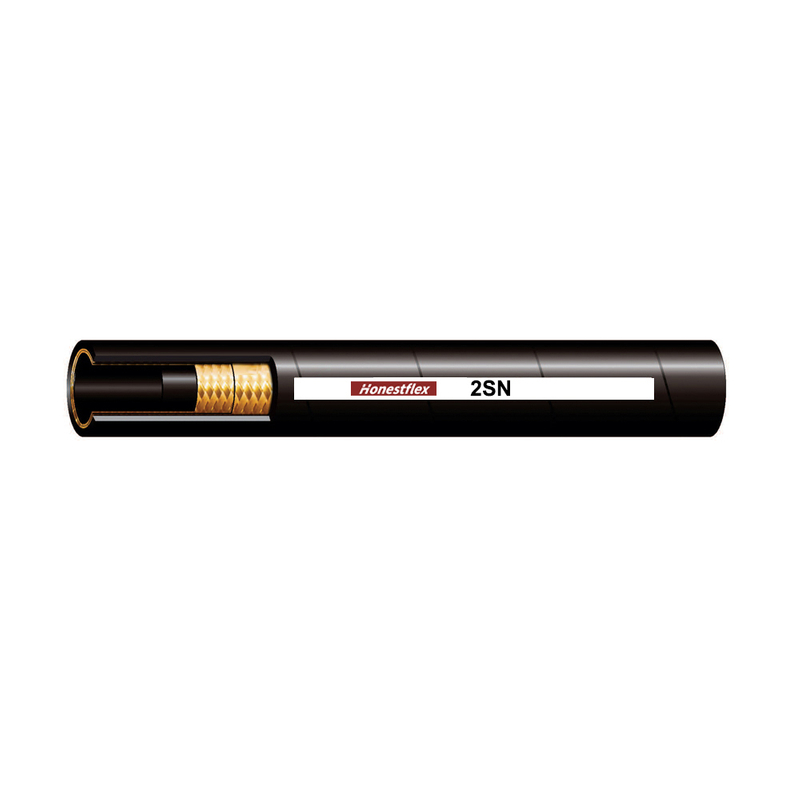

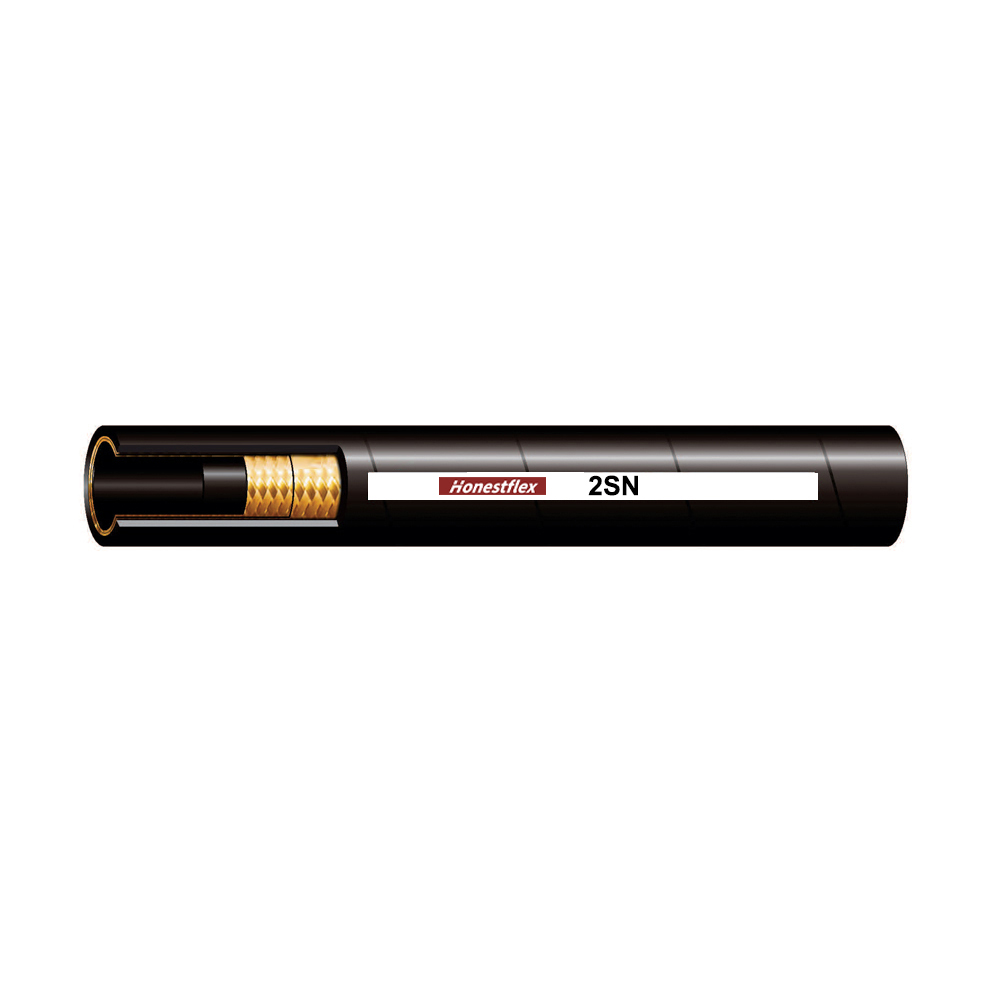

Tailored for a wide array of general industrial and hydraulic applications, these hose assemblies are highly compatible with systems that utilize petroleum - based and water - based fluids. The hose itself is constructed with a synthetic rubber tube and cover, fortified by two layers of high - strength steel wire braids. This construction not only meets but surpasses the stringent requirements set by DIN EN853 2SN / SAE 100R2AT standards, guaranteeing reliable performance under various operating conditions.
| Metric Size | Inch Size | SAE | I.D. | Braid | 0.D. | W.P. | B.P. | Bending Radius | Weight | |||
| Dash size | (mm) | (mm) | (mm) | |||||||||
| mm | Inches | Dash | Min | Max | Min | Max | Max | Mpa | Psi | Mpa | mm | Kg/m |
| 5 | 3/16" | 3 | 4.6 | 5.4 | 10.6 | 11.6 | 14.1 | 41.5 | 6018 | 165 | 90 | 0.32 |
| 6.3 | 1/4" | 4 | 6.2 | 7 | 12.1 | 13.3 | 15.7 | 40 | 5800 | 160 | 100 | 0.36 |
| 8 | 5/16" | 5 | 7.7 | 8.5 | 13.7 | 14.9 | 17.3 | 35 | 5075 | 140 | 115 | 0.45 |
| 10 | 3/8" | 6 | 9.3 | 10.1 | 16.1 | 17.3 | 19.7 | 33 | 4785 | 132 | 130 | 0.54 |
| 12.5 | 1/2" | 8 | 12.3 | 13.5 | 19 | 20.6 | 23 | 27.5 | 3988 | 110 | 180 | 0.68 |
| 16 | 5/8" | 10 | 15.5 | 16.7 | 22.2 | 23.8 | 26.2 | 25 | 3625 | 100 | 200 | 0.8 |
| 19 | 3/4" | 12 | 18.6 | 19.8 | 26.2 | 27.8 | 30.1 | 21.5 | 3118 | 85 | 240 | 0.94 |
| 25 | 1 | 16 | 25 | 26.4 | 34.1 | 35.7 | 38.9 | 16.5 | 2393 | 65 | 300 | 1.35 |
| 31.5 | 1.1/4" | 20 | 31.4 | 33 | 43.3 | 45.6 | 49.5 | 12.5 | 1813 | 50 | 420 | 2.15 |
| 38 | 1.1/2" | 24 | 37.7 | 39.3 | 49.6 | 52 | 55.9 | 9 | 1305 | 36 | 500 | 2.65 |
| 51 | 2 | 30 | 50.4 | 52 | 62.3 | 64.7 | 68.6 | 8 | 1160 | 32 | 630 | 3.42 |
