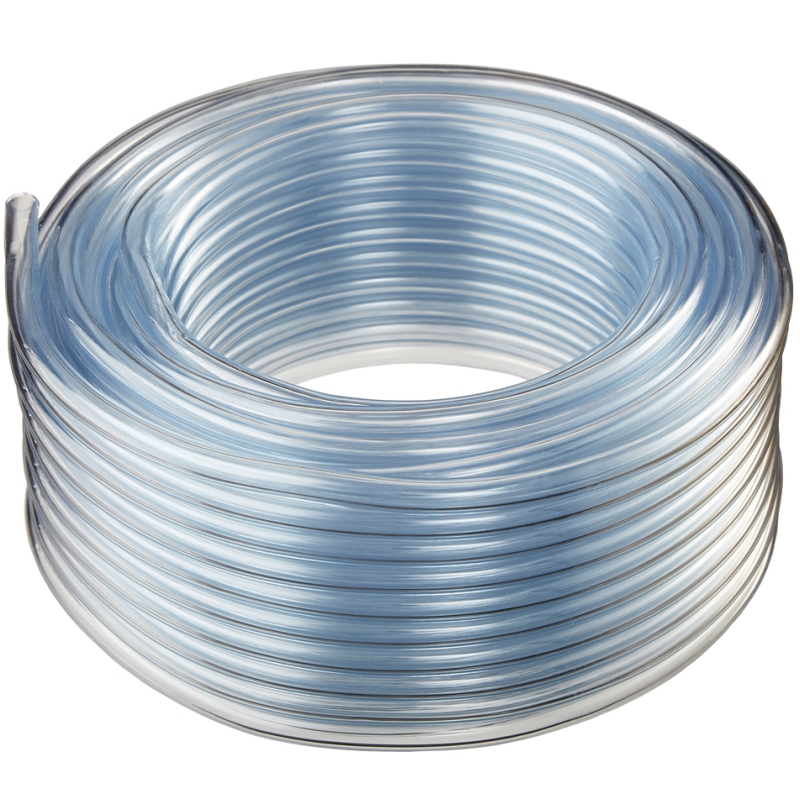

The Honestflex PVC Clear Hose is a fully transparent, universal flexible hose made from high-quality polyvinyl chloride , perfectly combining visual monitoring with economic practicality. This hose is extruded from premium, non-toxic PVC material, resulting in a crystal-clear wall that allows for clear observation of the internal medium's flow, air bubbles, and cleanliness, greatly facilitating conveying operations requiring real-time monitoring. Depending on the application, the hose can be made in different wall thicknesses; the thicker-walled model offers excellent anti-kink performance, maintaining unobstructed flow even when bent. PVC material itself possesses excellent chemical resistance, ozone resistance, and flame retardant properties, with a burst pressure exceeding three times the working pressure, ensuring safe and reliable daily use. The hose operates within a temperature range of -10°C to +65°C, meeting the needs of most ambient temperature conditions. Whether in factory workshops, farmland irrigation, construction sites, or home gardens, the PVC Clear Hose provides users with an economical and efficient conveying solution due to its lightweight, flexible, and transparent characteristics.
Industrial Equipment: Widely used in cooling water circulation, cutting fluid delivery, pneumatic system air supply, and low-pressure chemical delivery pipelines for various industrial machinery and equipment.
Agricultural and Horticultural Irrigation: Suitable for farmland irrigation, greenhouse drip irrigation, orchard spraying, livestock farm water supply, and landscaping watering. The transparent pipe wall allows for easy observation of water quality and blockage.
Construction Sites: Used for temporary water supply, drainage, concrete curing water, and small air compressor air supply pipelines at construction sites. Lightweight and easy to use, facilitating on-site movement and pipe laying.
Food and Beverage Delivery: Food-grade models can be used for delivery pipelines of liquid foods such as purified water, beverages, juices, and wines. The transparent nature allows for easy monitoring of product cleanliness.
Household and Gardening Uses: Suitable for watering home gardens, changing aquarium water, car washing, cleaning operations, and various DIY projects. Lightweight, flexible, and easy to store.
Laboratory and Medical Equipment: Can be used for laboratory cooling water circulation, gas delivery, and medical equipment piping. Non-toxic, odorless, and meets hygiene requirements. Marine and Ocean Operations: Suitable for bilge drainage, freshwater transport, and piping for marine equipment, offering excellent resistance to seawater corrosion.
Fully Transparent and Visually Monitored: The crystal-clear pipe wall allows real-time observation of the internal media flow, enabling timely detection of abnormalities such as blockages, bubbles, contamination, or discoloration, facilitating process control and maintenance.
Food-Grade Safe and Non-Toxic: Made from high-quality non-toxic PVC raw materials, it is tasteless and odorless, meeting the hygiene requirements for food contact materials. It can be used for the transport of drinking water, food, and pharmaceuticals, ensuring safety and reliability.
Lightweight, Flexible, and Easy to Handle: The hose is lightweight, flexible, and has a small bending radius, facilitating pipe laying and passage in confined spaces. After use, it is easy to coil and store, making it convenient to carry.
Excellent Chemical Corrosion Resistance: PVC material has good resistance to most acids, alkalis, and salts, meeting the transport needs of various liquids in industrial environments.
Abrasion and Aging Resistance: The hose has good abrasion resistance and UV resistance, able to withstand outdoor sun exposure and daily dragging friction, and is not prone to aging and cracking with long-term use.
Antibacterial and anti-bioadhesion: The smooth surface of PVC makes it difficult for bacteria and microorganisms to grow, and the inner wall is not easy to accumulate scale, making it suitable for applications with high hygiene requirements.
Inner Diameter | Outer Diameter | Weight | W.P.(at 23ºC) | Std Length | ||||
inch | mm | inch | mm | kg/m | bar | psi | m | ft |
1/8 | 3 | 0.196 | 5 | 0.017 | 4 | 60 | 100 | 300 |
1/6 | 4 | 0.236 | 6 | 0.02 | 4 | 60 | 100 | 300 |
1/5 | 5 | 0.314 | 8 | 0.04 | 4 | 60 | 100 | 300 |
1/4 | 6 | 0.354 | 9 | 0.047 | 4 | 60 | 100 | 300 |
5/16 | 8 | 0.433 | 11 | 0.059 | 4 | 60 | 100 | 300 |
3/8 | 10 | 0.511 | 13 | 0.071 | 4 | 60 | 100 | 300 |
1/2 | 12 | 0.59 | 15 | 0.08 | 3 | 45 | 100 | 300 |
5/8 | 15 | 0.708 | 18 | 0.1 | 3 | 45 | 50 | 150 |
3/4 | 19 | 0.866 | 22 | 0.13 | 3 | 45 | 50 | 150 |
1 | 25 | 1.181 | 30 | 0.28 | 2 | 30 | 50 | 150 |
1-1/4 | 32 | 1.496 | 38 | 0.43 | 2 | 30 | 30 | 90 |
1-1/2 | 38 | 1.732 | 44 | 0.52 | 2 | 30 | 30 | 90 |
2 | 50 | 2.283 | 58 | 0.9 | 2 | 30 | 30 | 90 |
Q1: What types of liquids can this PVC Clear Hose handle?
This PVC clear hose is designed for conveying water, diluted chemicals, food products, beverages, and other non-oily fluids. It is suitable for applications where visual monitoring of flow is required. For specific chemical compatibility, please consult our technical team.
Q2: What is the working temperature range of the hose?
The PVC clear hose operates effectively within a temperature range of approximately -10°C to +65°C , making it suitable for indoor applications and ambient temperature outdoor use. It should not be used with hot liquids exceeding this range.
Q3: Can I really see through the hose during operation?
Yes, the hose is manufactured from high-quality virgin PVC compound with exceptional transparency, allowing for clear visual inspection of fluid flow, color, and clarity. This enables operators to detect air bubbles, contamination, or blockages without interrupting system operation.
Q4: What are the available sizes and working pressures?
The hose is available in a wide range of inner diameters, typically from 3 mm to 50 mm, with various wall thicknesses. Working pressure varies by size and construction, generally ranging from 2bar to 4 bar for standard grades. Custom sizes and pressure specifications are available upon request.
Q5: Can the hose be supplied with different end fittings?
Yes, the hose can be supplied with plain ends for push-on fittings, or fitted with barbed connectors, camlocks, or other connection types according to customer requirements and specific application needs.
Q6: What standards does this hose meet?
This PVC clear hose is manufactured to meet general-purpose hose standards and can be produced with food-grade certifications (such as FDA approval) for applications involving food and beverage contact upon request.
Q7: What are the standard hose lengths?
Standard hose lengths are typically available in coils of 10 meters, 20 meters, 30 meters, or 50 meters. Custom cut lengths can be produced to meet specific installation requirements.
Q8: Is this hose suitable for outdoor use?
Yes, the PVC material offers good resistance to weathering and UV exposure for moderate outdoor use. However, prolonged exposure to direct sunlight may eventually affect clarity and flexibility. For permanent outdoor installations, protective measures are recommended.
Q9: Can this hose be used for drinking water applications?
Yes, when manufactured with food-grade PVC compounds, this clear hose is suitable for potable water applications. Please specify food-grade requirements when ordering to ensure compliance with relevant drinking water standards.
Q10: What material is used in hose construction?
The hose features a high-quality virgin PVC compound construction without plasticizers that could leach into conveyed fluids. This provides excellent clarity, smooth internal surface for reduced friction, and resistance to diluted chemicals, aging, and weathering.
