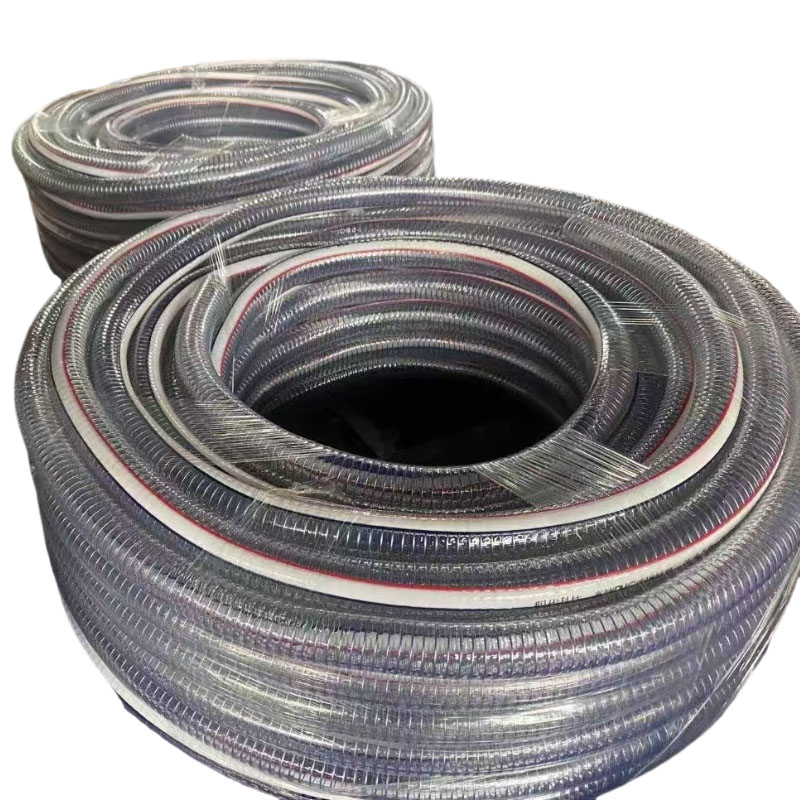

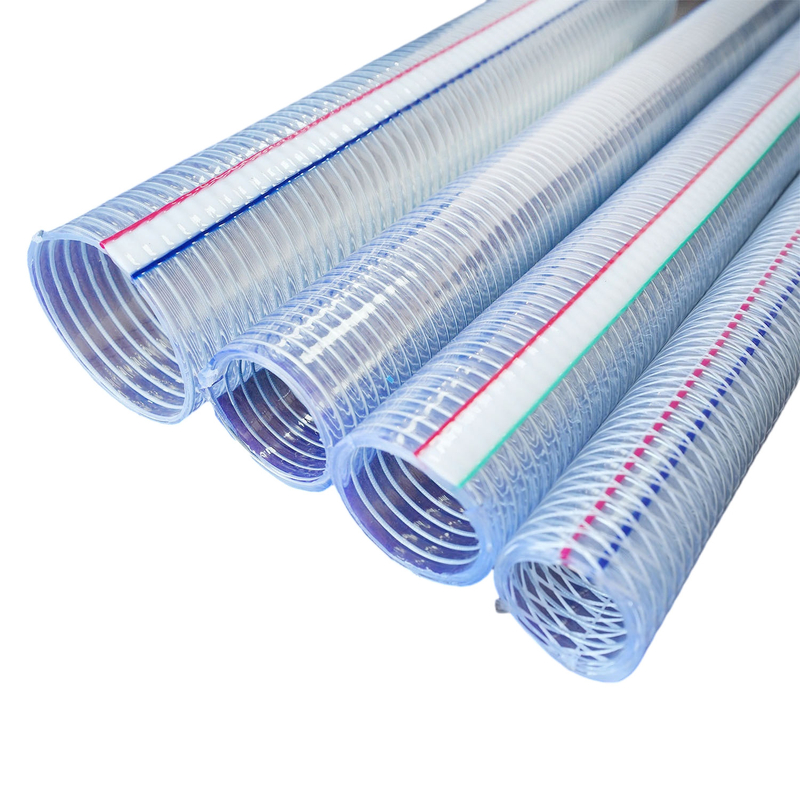

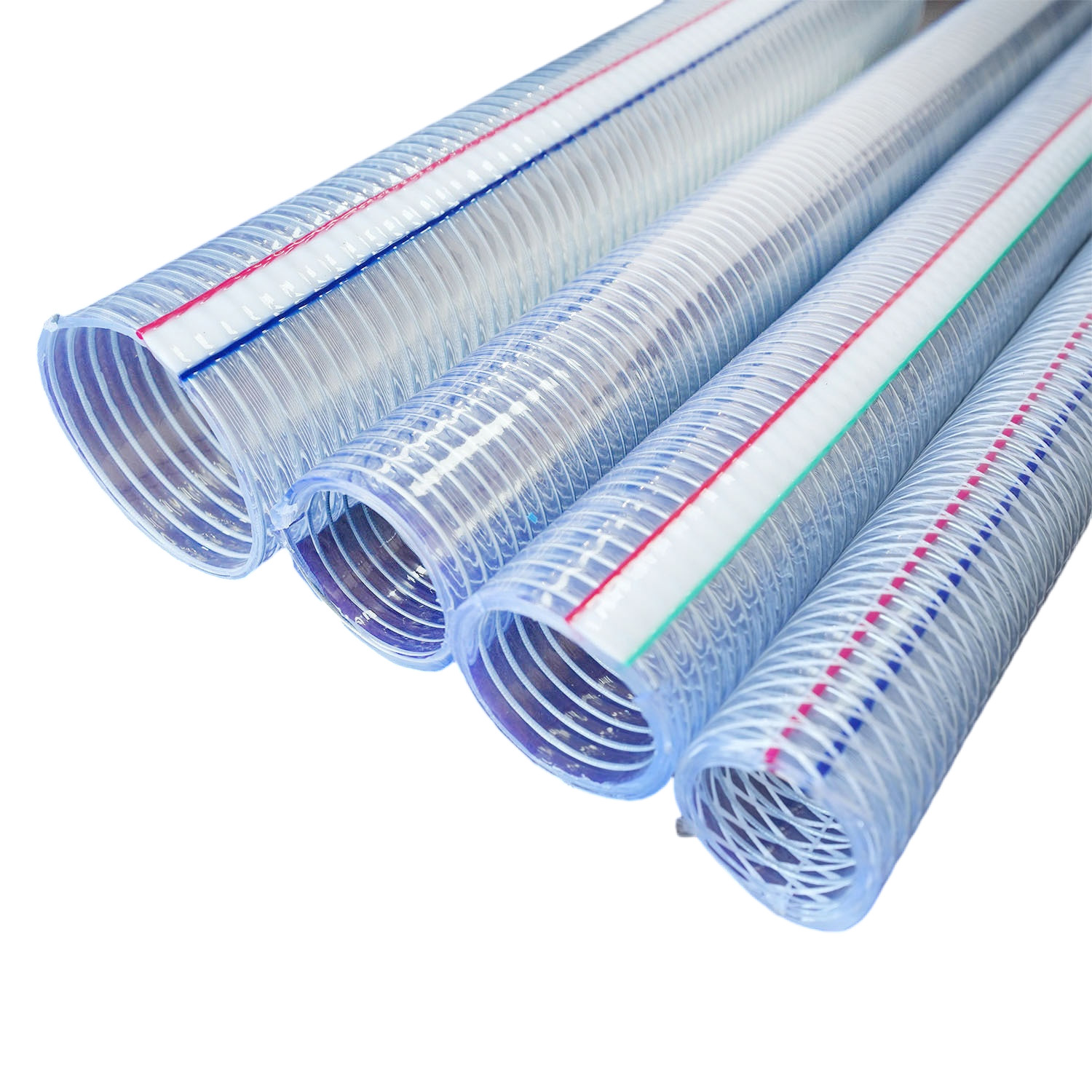

The Honestflex PVC steel wire reinforced hose is a general-purpose, multi-functional conveying hose made primarily of transparent polyvinyl chloride (PVC) with an embedded spiral steel wire skeleton. The hose features a transparent design; the tube wall is made of high-quality PVC, allowing clear observation of the internal media flow. The reinforcing layer uses high-strength spiral steel wire, providing excellent resistance to negative pressure and pressure bearing capacity, ensuring stable tube shape under suction conditions. According to customer needs, copper wires can also be embedded to discharge static charge and prevent static buildup that could lead to safety hazards. While maintaining the lightweight and flexible properties of PVC, the steel wire reinforcement significantly improves its pressure and impact resistance, resulting in a small bending radius, facilitating installation and movement in complex spaces. For food industry applications, food-grade PVC raw materials can be selected, ensuring non-toxicity, odorlessness, and compliance with hygiene and safety requirements. The organic combination of the transparent tube wall and steel wire reinforcement makes this product an ideal multi-purpose conveying solution for industrial, agricultural, and food processing fields.
Industrial Material Conveying: Widely used in factory workshops for pumping and conveying water, oil, cutting fluid, industrial wastewater, and powdered materials, meeting the conveying needs of general industrial production.
Agricultural Irrigation and Pesticide Application: Suitable for farmland irrigation, garden sprinkler irrigation, livestock farm water supply, and the conveying of liquid fertilizers and low-concentration pesticides. Lightweight and easy to use, facilitating mobile operation in the field.
Construction Sites: Used for temporary water supply and drainage operations at construction sites, as well as mortar pumping and concrete curing water conveying. Capable of withstanding the harsh working environment of construction sites.
Food and Beverage Conveying: Food-grade models can be used in dairy plants, beverage factories, and breweries for conveying milk, juice, beer, jam, and non-alcoholic beverages. The transparent pipe wall facilitates cleanliness monitoring.
Public Health Equipment: Suitable for use with sanitation vehicles, mobile pumping equipment, temporary drainage and emergency response, and swimming pool circulating water systems, among other public health applications.
Special Anti-static Operating Conditions: Models with embedded copper wires are suitable for conveying flammable and explosive media or in situations with static electricity risks. They effectively dissipate static charge, ensuring operational safety.
Transparent Pipe Wall for Visual Monitoring: The pipe body is made of transparent PVC material, allowing direct observation of the internal media flow during transport. This facilitates timely detection of blockages, contamination, or gas mixing, improving process control.
Lightweight, Flexible, and Easy to Handle: Compared to rubber hoses, PVC material has a lower density and is lighter overall. It also possesses good flexibility and a small bending radius, making it easy to drag, coil, and store on-site.
Steel Wire Reinforcement Against Negative Pressure: Built-in spiral steel wires provide excellent support strength, effectively resisting external atmospheric pressure under suction conditions. This prevents the pipe from collapsing or flattening, ensuring continuous and stable transport.
Wear-Resistant, Weather-Resistant, and Long Service Life: PVC material itself has good wear resistance and UV resistance, allowing it to withstand outdoor sun and rain environments. It is not prone to aging and cracking even after long-term use.
Safe Anti-static Options: Copper wires can be embedded as needed to promptly dissipate static electricity generated during transport, preventing electrostatic sparks and potential accidents. Suitable for flammable and explosive environments.
Food-grade Safety: Food-grade models use non-toxic and odorless special PVC raw materials, meeting hygiene requirements for food contact materials. They will not contaminate the transported medium, ensuring food safety.
Wide Temperature Adaptability:Operating temperature range covers -10°C to +65°C, meeting the needs of most normal temperature conditions. Some cold-resistant formulations can adapt to even lower temperature environments.
Flexible Customization Options:Products with different wall thicknesses and wire spacing can be provided according to customer needs. Copper wires can be embedded, or various connectors can be added to meet diverse application scenarios.
I.D. | O.D. | W.P. | B.P. | W/A | COIL | |||
in | mm | mm | bar | psi | bar | psi | g/m | m |
1/4 | 6 | 11 | 8 | 120 | 24 | 360 | 115 | 100 |
5/16 | 8 | 14 | 8 | 120 | 24 | 360 | 150 | 100 |
3/8 | 10 | 16 | 8 | 120 | 24 | 360 | 200 | 100 |
1/2 | 12 | 18 | 8 | 120 | 24 | 360 | 220 | 100 |
5/8 | 15 | 22 | 6 | 90 | 18 | 270 | 300 | 50 |
3/4 | 19 | 26 | 6 | 90 | 18 | 270 | 360 | 50 |
1 | 25 | 33 | 5 | 75 | 16 | 240 | 540 | 50 |
1-1/4 | 32 | 40 | 5 | 75 | 16 | 240 | 700 | 50 |
1-1/2 | 38 | 48 | 5 | 75 | 15 | 225 | 1000 | 50 |
2 | 50 | 62 | 5 | 75 | 15 | 225 | 1600 | 50 |
2-1/2 | 64 | 78 | 4 | 60 | 12 | 180 | 2500 | 30 |
3 | 76 | 90 | 4 | 60 | 12 | 180 | 3000 | 30 |
3-1/2 | 90 | 106 | 4 | 60 | 12 | 180 | 4000 | 20 |
4 | 102 | 118 | 4 | 60 | 12 | 180 | 4500 | 20 |
5 | 127 | 143 | 3 | 45 | 9 | 135 | 6000 | 10 |
6 | 152 | 168 | 2 | 30 | 6 | 90 | 7000 | 10 |
8 | 202 | 224 | 2 | 30 | 6 | 90 | 12000 | 10 |
10 | 254 | 276 | 2 | 30 | 6 | 90 | 20000 | 10 |
Q1: What types of media can this PVC Steel Wire Hose handle?
This hose is designed for the suction and discharge of a wide variety of media, including water, chemicals, diluted acids and alkalis, fertilizers, slurries, and non-oily food products. Its chemical-resistant PVC compound makes it suitable for industrial, agricultural, and food processing applications.
Q2: What is the working temperature range of the hose?
The PVC Steel Wire Hose operates effectively within a temperature range of approximately -10°C to +65°C . For specific low-temperature flexibility or high-temperature chemical applications, please consult our engineering team for recommendations.
Q3: Is the hose transparent, and why is this important?
Yes, the hose is fully transparent. This transparency allows operators to visually monitor fluid flow, detect blockages, identify contamination, and observe air bubbles in real time without interrupting operations, enabling immediate troubleshooting and improving workplace safety.
Q4: What are the available sizes and pressure ratings?
The hose is available in a wide range of inner diameters, typically from 6 mm to 254 mm. Working pressure and full vacuum ratings vary by size and wall thickness. Custom sizes and pressure specifications can be manufactured upon request.
Q5: Can the hose be supplied with different end fittings?
Yes, the hose can be customized with various end connections to suit your specific equipment, including camlock fittings, garden hose threads, flanges, quick-release couplings, and NPT/BSP threaded fittings, either clamped or permanently attached.
Q6: What standards does this hose meet?
This hose is manufactured in accordance with general industrial quality standards and is designed to meet the requirements for food-grade contact (non-oily) where applicable. It is compliant with relevant regulations for chemical resistance and pressure performance.
Q7: What is the standard hose length?
Standard hose lengths are typically 10 meters, 20 meters, or 30 meters in continuous lengths. Custom lengths can be produced in coils or cut pieces to meet specific project requirements and minimize waste.
Q8: Is this hose suitable for outdoor use and UV exposure?
Yes, the PVC compound is formulated with UV stabilizers, making the hose suitable for prolonged outdoor use. It resists degradation from sunlight, ozone, and weathering, ensuring long service life in agricultural and construction environments.
Q9: Can this hose be used for suction applications?
Absolutely. The embedded steel wire helix provides full vacuum capability, preventing collapse during suction operations. It is ideal for pumping from tanks, pits, or open sources where negative pressure is present.
Q10: What type of reinforcement is used in this hose, and what are its benefits?
The hose features dual reinforcement: a rigid PVC helix for structural integrity combined with a high-tensile steel wire helix. This unique construction provides exceptional crush resistance, maintains hose shape under vacuum, prevents kinking, and allows for electrical continuity if required.
