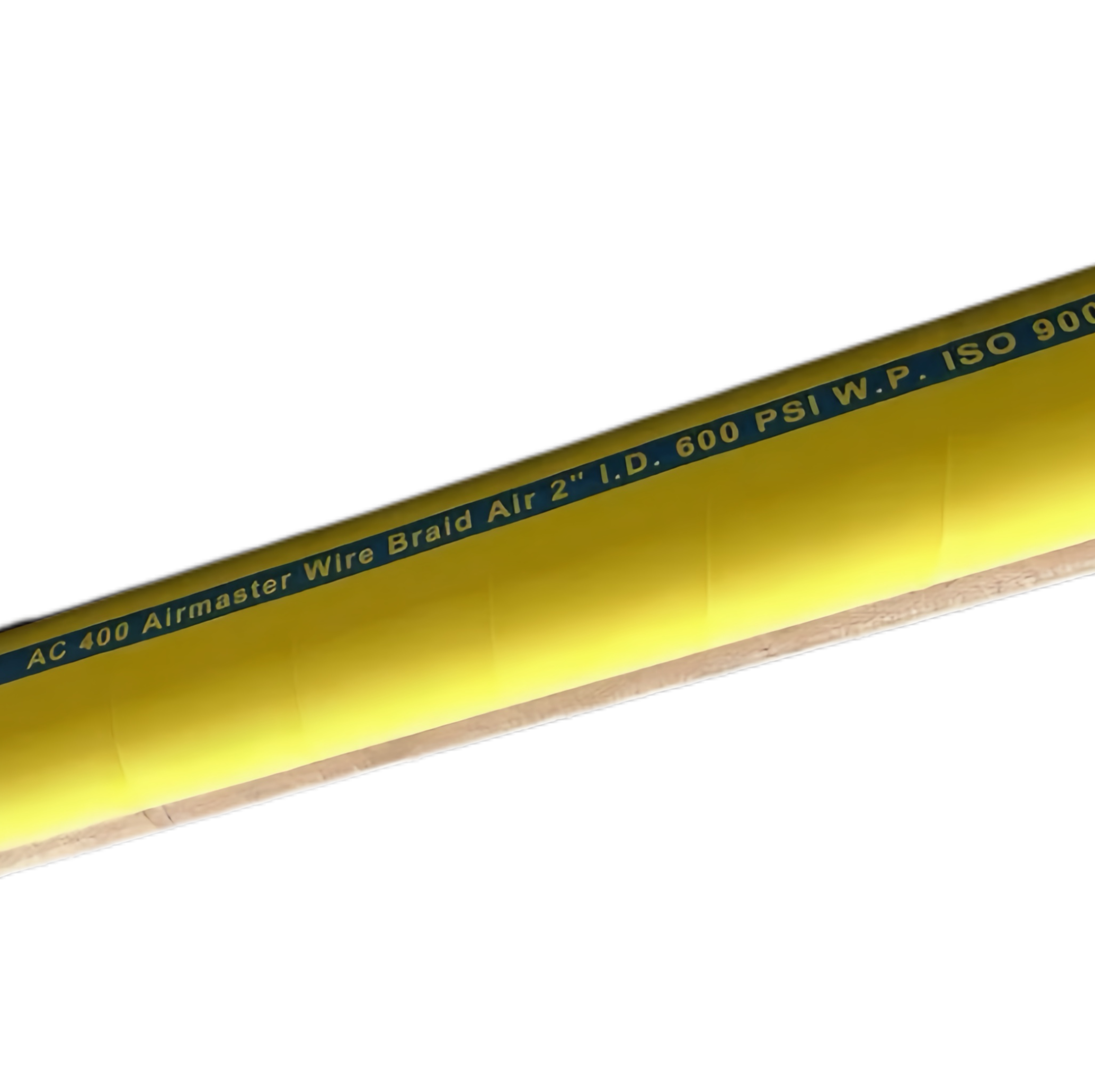

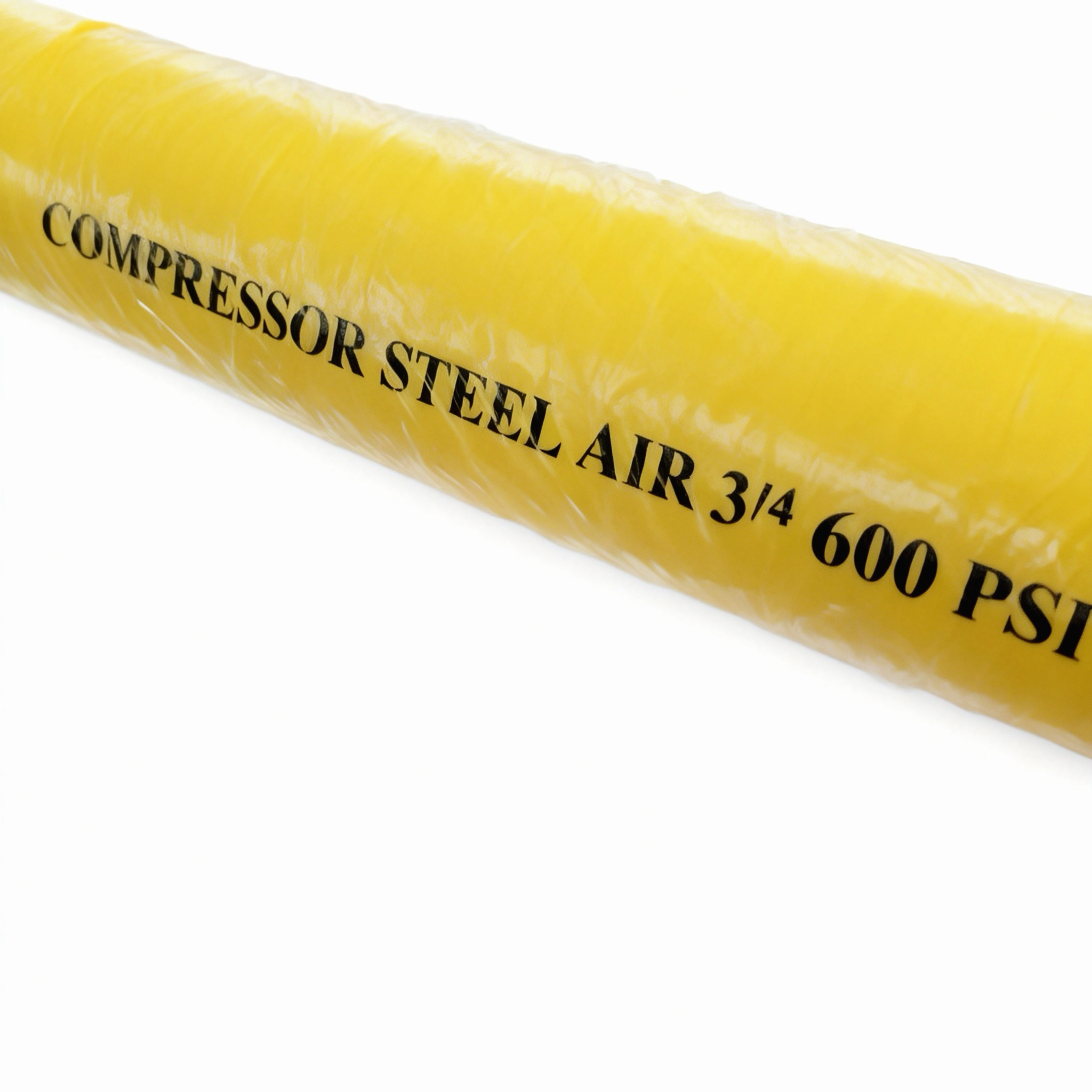

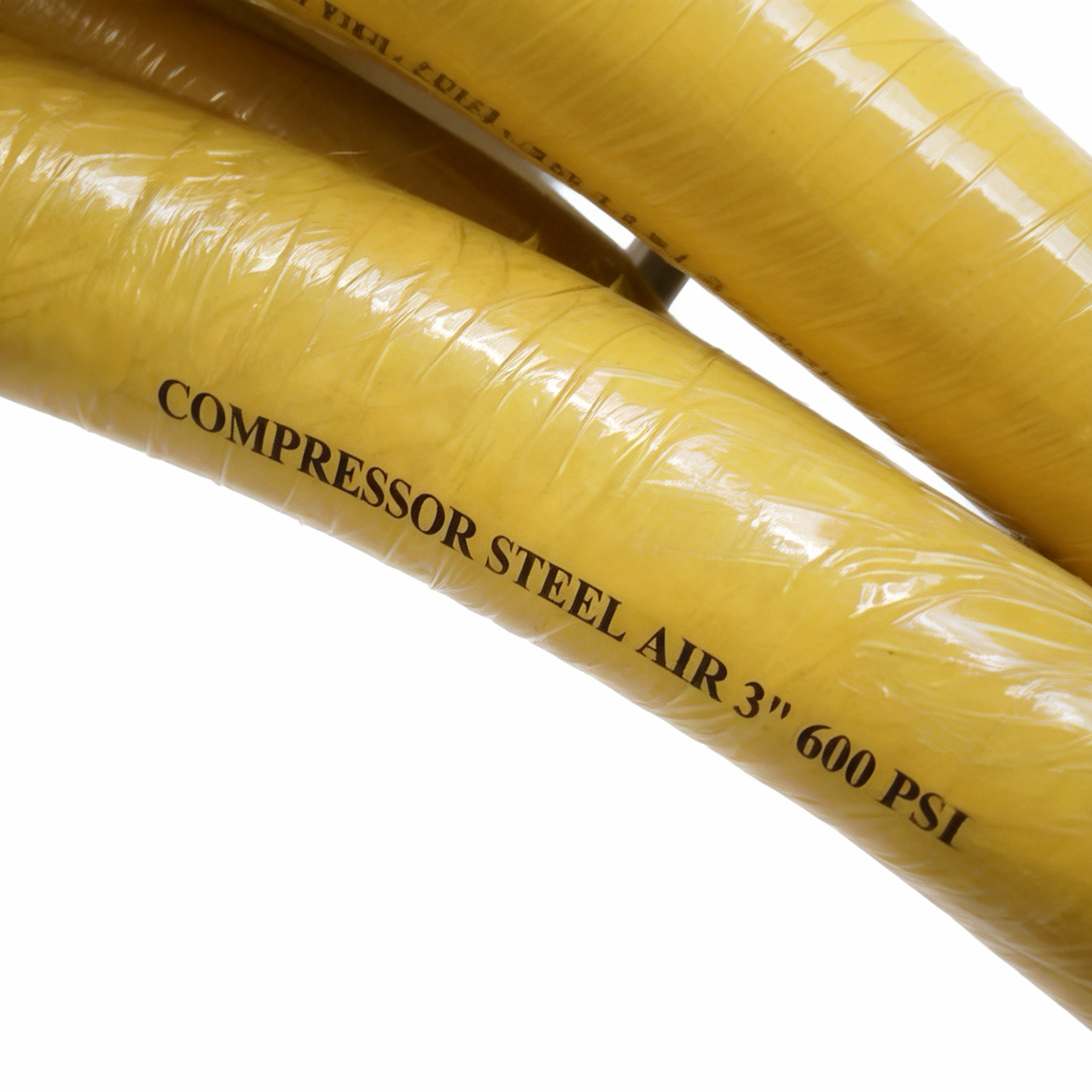

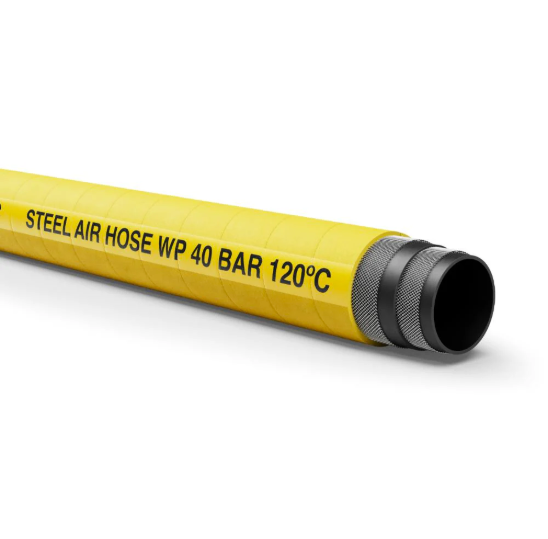

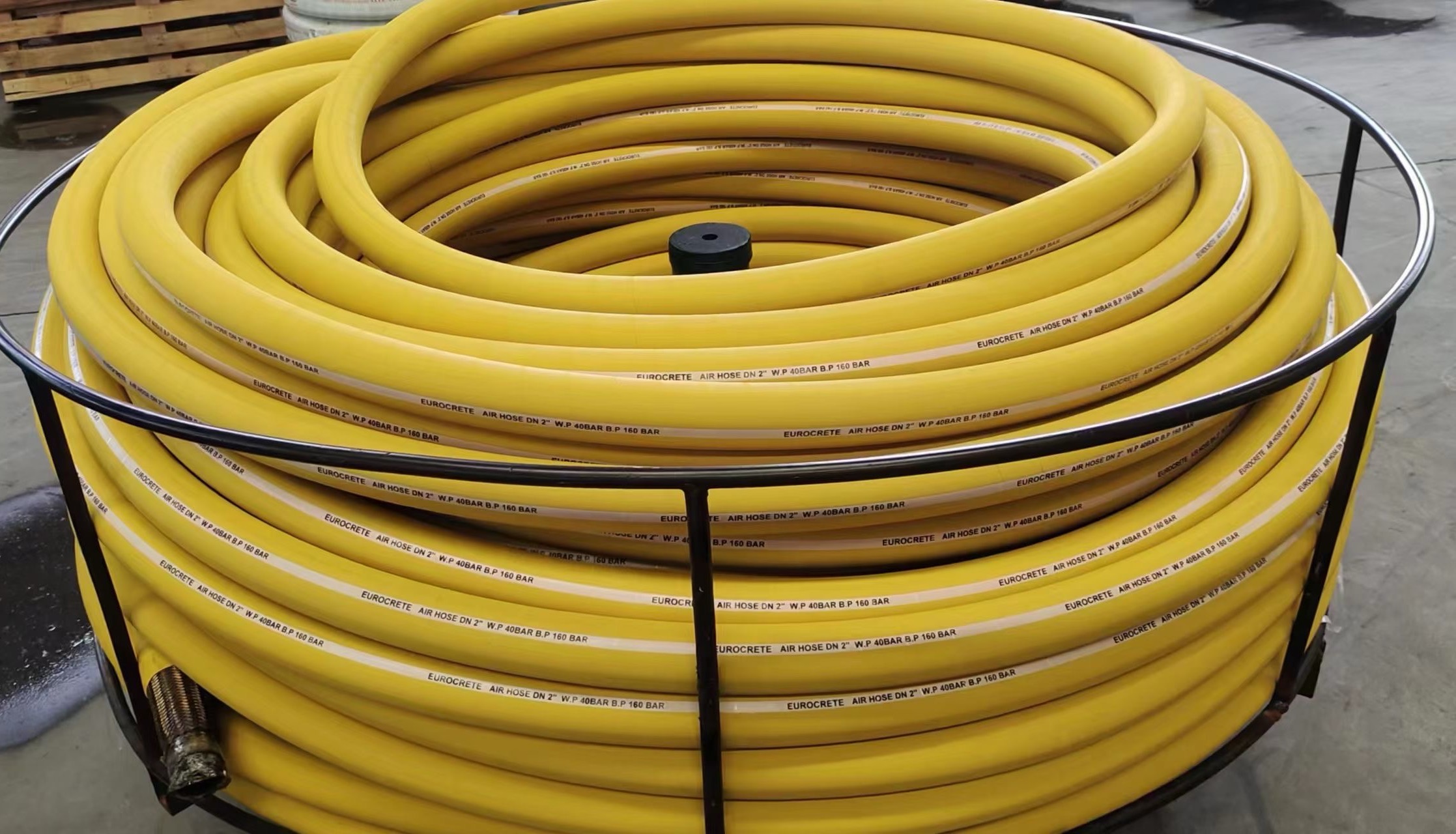

Compressed Air Hose

Compressed air 40 bar(600psi)---Steel braided

Tube:black SBR-oil mist resistant.

Reinforcement:one or two high tensile steel wire braids.

Cover:yellow SBR-abrasion,ozone,hydrocarbon resistant-pin pricked.

Application:high pressure compressed air designed for heavy duty mine and quarry applications where long service life and maximum safety is required.

Constant operation:-30℃ +80℃(-22℉ +176℉)

Availability:

Quantity:



Inquire Add to Basket

Product Description

Inside Diameter		Outside Diameter	Working Pressure		Burst Pressure		Bend Radius		weight
inch	mm	mm	bar	psi	bar	psi	mm	inch	kg/m	lb/ft
1/2	13	22	40	600	160	2320	65	2.56	0.420	0.29
3/4	19	28	40	600	160	2320	95	3.74	0.600	0.41
1	25	34	40	600	160	2320	125	4.92	0.820	0.56
1-1/4	32	42	40	600	160	2320	160	6.30	1.040	0.70
1-1/2	38	48	40	600	160	2320	190	7.48	1.240	0.84
2	51	64	40	600	160	2320	255	10.04	2.070	1.40
2-1/2	63	77	40	600	160	2320	630	24.80	2.980	2.01
3	76	92	40	600	160	2320	760	29.92	4.100	2.76
4	102	118	40	600	160	2320	510	20.08	4.900	3.30
