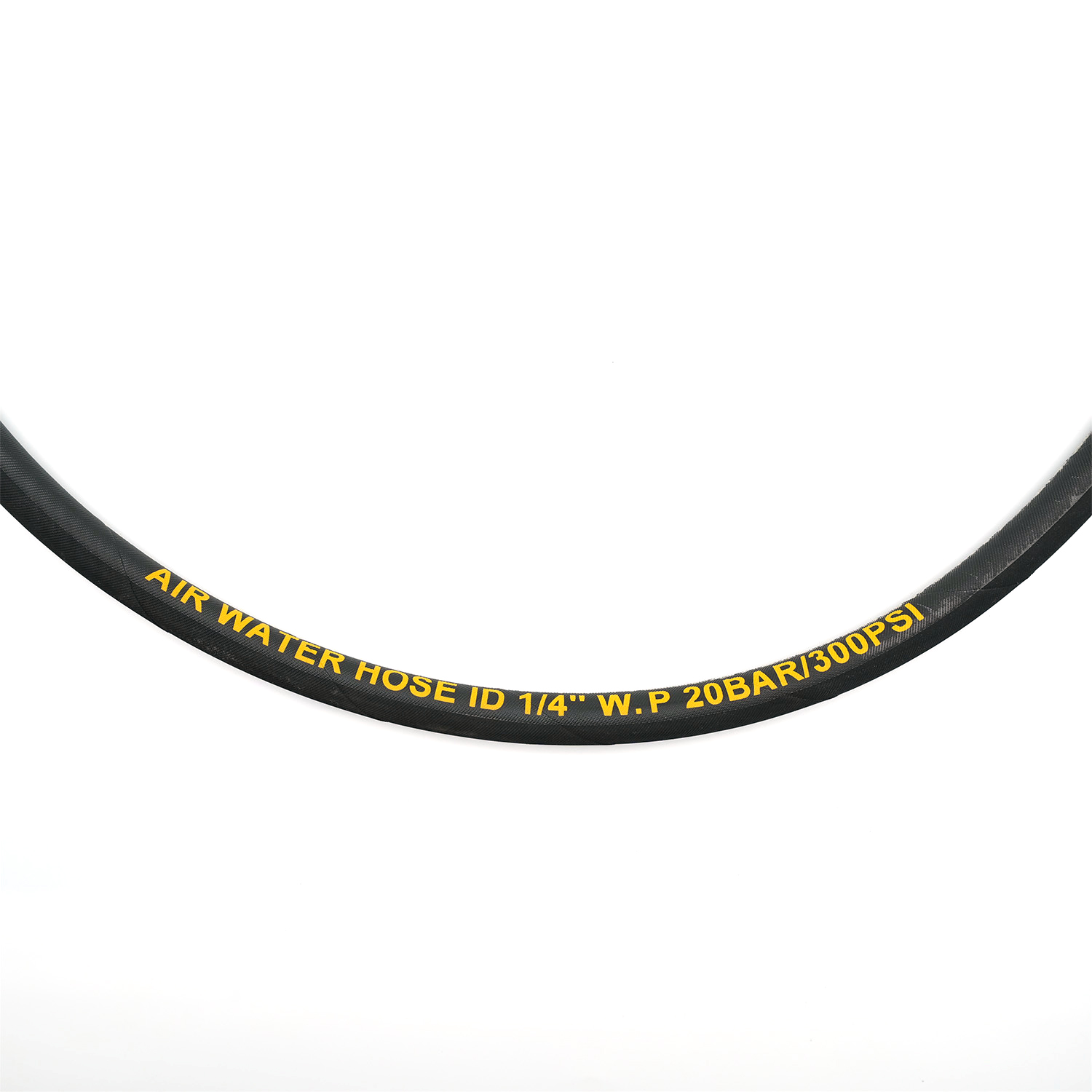

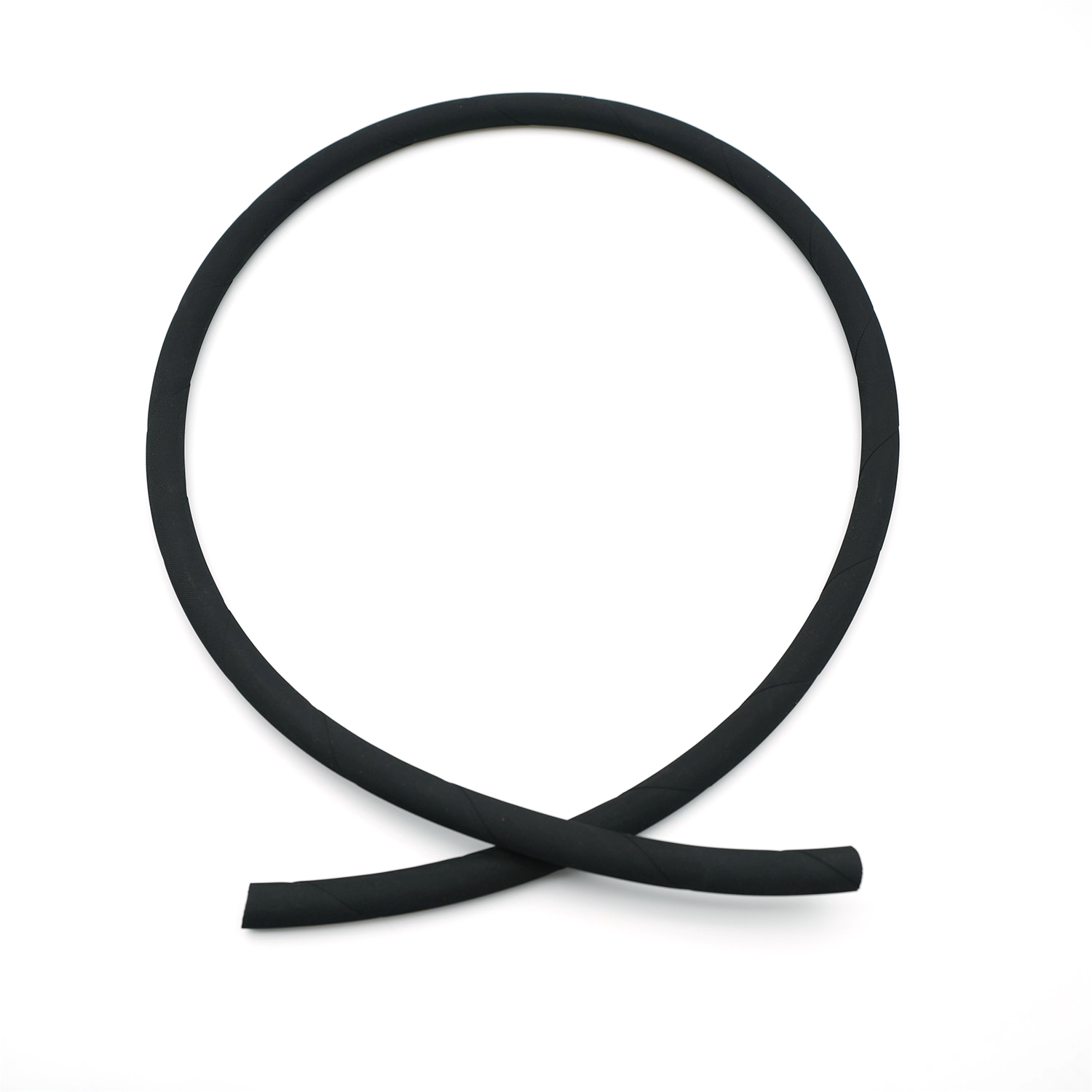

The Wrapped Cover Air Hose is a general-purpose rubber air hose manufactured using a wrapped outer layer process, renowned for its economic practicality and balanced performance. The inner layer is made of black SBR synthetic rubber extruded into shape, offering excellent airtightness and moderate oil resistance, suitable for conveying air, water, and mild water-soluble chemicals. The reinforcing layer uses a high-tensile-strength synthetic fiber braided structure, providing stable pressure resistance and ensuring the hose does not bulge at a working pressure of 20 Bar. The outer layer, also made of black SBR rubber, forms a dense protective layer through a wrapping process, giving the hose excellent abrasion resistance, ozone resistance, and aging resistance, protecting it from outdoor sunlight and harsh environmental conditions. The hose operates in temperatures ranging from -20°C to +80°C, maintaining good flexibility in both extremely cold and hot conditions. The wrapped surface not only enhances the density and abrasion resistance of the outer layer but also gives the hose a neat appearance, making it an ideal choice for air and water conveyance in industrial, construction, and agricultural applications.
Construction Sites: Suitable for supplying air to tools such as concrete vibrators, pneumatic nail guns, and pneumatic picks on construction sites, as well as for temporary water supply and drainage operations. It can withstand the harsh operating environment of construction sites.
Mining Equipment Air Supply: Used for compressed air delivery to pneumatic control systems, pneumatic motors, and pneumatic grinders in factory workshops and mining operations, meeting daily production and maintenance needs.
Agricultural and Horticultural Irrigation: Suitable for farmland irrigation, orchard spraying, greenhouse water supply, and watering operations on golf courses and park lawns. Lightweight and flexible, it is easy to move and operate in the field.
Municipal and Public Utilities: Used for municipal road maintenance, landscaping irrigation, sanitation vehicle support, and various temporary water and air supply operations.
Mine Drainage and Slurry Transportation: Some large-diameter models can be used for mine pit drainage, tunnel water pumping, and the suction and compression of sewage and slurry containing silt.
Commercial and Mobile Services: Suitable for compressed air supply in auto repair shops, tire service stations, and mobile service vehicles, providing a reliable air source for equipment such as pneumatic wrenches and air pumps.
Balanced Pressure Resistance: The synthetic fiber braided reinforcement layer provides stable tensile strength, with a working pressure up to 20 Bar (300 psi) and a burst pressure more than three times the working pressure, ensuring safe and reliable daily operation.
Excellent Abrasion and Weather Resistance: The outer layer uses a coated SBR rubber, which is dense and uniform, possessing excellent abrasion resistance, ozone resistance, and UV resistance, allowing for long-term outdoor use without aging or cracking.
Excellent Flexibility and Knot Resistance: The hose is soft with a small bending radius, maintaining excellent flexibility even at temperatures as low as -30°C. It is less prone to kinking and tangling during use, improving operational continuity.
Lightweight and Portable Design: While maintaining strength, the hose is lightweight, making it easy to drag, coil, and store on-site, reducing operator workload.
Economical and Practical with High Cost-Effectiveness: SBR rubber material has a moderate cost and mature manufacturing process, making this hose cost-effective while meeting the needs of most general operating conditions.
Stable Adhesive Bonding: The inner layer, reinforcing layer, and outer layer are firmly bonded, exhibiting minimal deformation under pressure and preventing delamination, ensuring structural stability during long-term use.
Wide Media Adaptability: Suitable for air, water, and mild water-soluble chemicals, meeting the daily conveying needs of various industries such as industry, agriculture, and construction.
Flexible Customization Services: Supports mandrel manufacturing, providing finished components in different colors, lengths, and pre-installed with various connectors according to customer needs. OEM brand customization services meet individual requirements.
Inside Diameter | Outside Diameter | Working Pressure | Burst Pressure | Nominal Weight | Bending Radius | Length | |||
inch | mm | mm | bar | psi | bar | psi | kg/m | mm | m |
1/4 | 6 | 14 | 20 | 300 | 60 | 900 | 0.17 | 60 | 100 |
5/16 | 8 | 16 | 20 | 300 | 60 | 900 | 0.20 | 75 | 100 |
3/8 | 10 | 18 | 20 | 300 | 60 | 900 | 0.24 | 75 | 100 |
1/2 | 13 | 22 | 20 | 300 | 60 | 900 | 0.33 | 100 | 100 |
5/8 | 16 | 26 | 20 | 300 | 60 | 900 | 0.45 | 125 | 100 |
3/4 | 19 | 29 | 20 | 300 | 60 | 900 | 0.51 | 150 | 100 |
1 | 25 | 37 | 20 | 300 | 60 | 900 | 0.70 | 200 | 100 |
1-1/4 | 32 | 45 | 20 | 300 | 60 | 900 | 1.04 | 250 | 40 / 60 |
1-1/2 | 38 | 52 | 20 | 300 | 60 | 900 | 1.38 | 300 | 40 / 60 |
2 | 51 | 65 | 20 | 300 | 60 | 900 | 1.78 | 350 | 40 / 60 |
2-1/2 | 64 | 79 | 20 | 300 | 60 | 900 | 2.25 | 450 | 40 / 60 |
3 | 76 | 91 | 20 | 300 | 60 | 900 | 2.62 | 450 | 40 / 60 |
4 | 102 | 119 | 20 | 300 | 60 | 900 | 4.14 | 600 | 40 / 60 |
Q1: What media can this Wrapped Cover Air Hose handle?
This wrapped cover air hose is specifically designed for the conveyance of compressed air in heavy-duty industrial, mining, and construction applications. It is suitable for powering pneumatic tools, rock drills, jackhammers, and sandblasting equipment. It is not recommended for water, chemicals, or fuel transfer unless specifically approved.
Q2: What is the working temperature range of the hose?
The wrapped cover air hose operates effectively within a temperature range of approximately -20°C to +80°C for standard rubber compounds, making it suitable for use in diverse climates from cold winter conditions to hot industrial environments.
Q3: What makes the wrapped cover design different from smooth cover hoses?

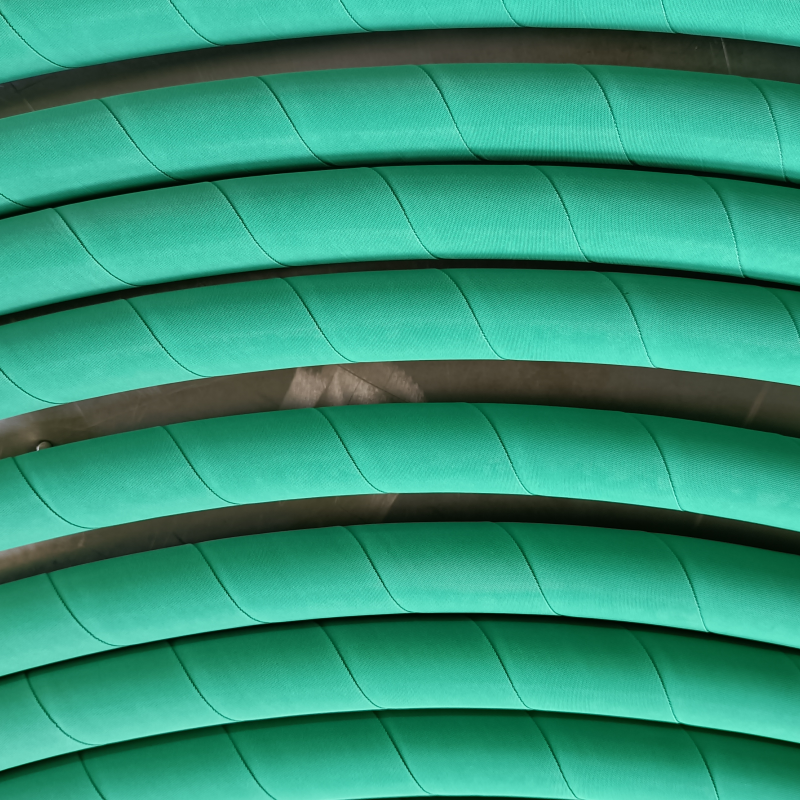

The wrapped cover features an overlapping fabric imprint finish that provides superior abrasion resistance compared to smooth covers. This textured surface withstands dragging across rough terrain, sharp debris, and concrete surfaces, making it ideal for demanding applications where hose damage from external abrasion is a primary concern.
Q4: What are the available sizes and working pressures?
The hose is available in a wide range of inner diameters, typically from 6 mm to 102 mm. Working pressure ratings vary by size and construction, commonly 20 bar for standard duty, with heavy-duty options available for higher pressure requirements. Custom specifications are available upon request.
Q5: What type of end fittings are compatible with this hose?
The hose can be supplied with plain ends for standard hose clamps, or pre-fitted with various connection types including industrial interlock couplings, quick-release connectors, threaded brass or steel fittings, and heavy-duty shank couplings according to customer requirements.
Q6: What standards does this hose meet?
This wrapped cover air hose is manufactured to meet international standards for heavy-duty air hose applications, including ISO 2398 for rubber air hoses, ensuring reliable performance and safety in demanding industrial environments.
Q7: What are the standard hose lengths available?
Standard hose lengths are typically available in coils of 10 meters, 20 meters, 30 meters, or 50 meters. Custom cut lengths and pre-assembled hose sets with heavy-duty fittings can be produced to meet specific equipment and installation requirements.
Q8: Is this hose suitable for underground mining applications?
Yes, the wrapped cover air hose is widely used in underground mining operations due to its exceptional abrasion resistance and durability. The rugged construction withstands exposure to sharp rock, constant flexing, and harsh mining conditions while maintaining reliable performance.
Q9: Can this hose be used with sandblasting equipment?
Yes, this hose is suitable for supply lines to sandblasting equipment where compressed air is conveyed to the blast pot. However, for the blast hose itself (the hose carrying abrasive media), please consult our specialized sandblasting hose range designed specifically for abrasive material conveyance.
Q10: What type of reinforcement is used in this hose?

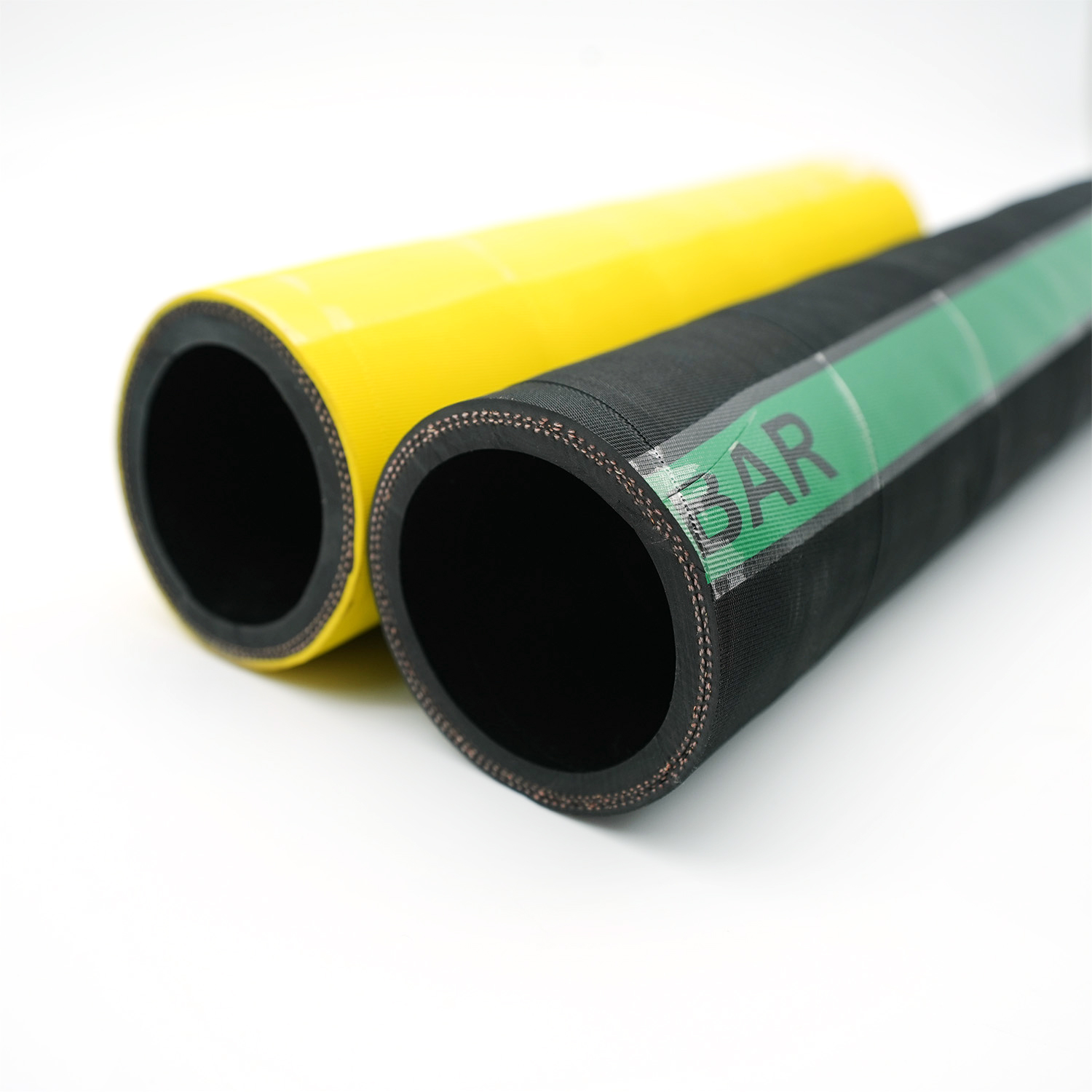

The hose features one or multiple layers of high-strength synthetic textile cord reinforcement, providing excellent pressure resistance, dimensional stability, and flexibility. This textile reinforcement ensures the hose maintains its integrity under repeated pressurization cycles and demanding field conditions.
Q11: Is this hose resistant to oil and grease?
Yes, the tube and cover compounds are formulated to resist oil and grease commonly encountered in industrial workshops, construction sites, and mining operations. For applications with high oil content in the air supply or frequent oil exposure, oil-resistant tube and cover compounds are available.
Q12: What are the main advantages of wrapped cover construction for air hose?
The wrapped cover construction offers several key advantages: exceptional abrasion resistance for extended service life in rough environments, enhanced durability against dragging and mechanical damage, improved grip for handling in wet or oily conditions, and a rugged appearance that indicates heavy-duty construction suitable for demanding applications.
Q13: Can this hose be used with portable compressors on construction sites?
Yes, the wrapped cover air hose is ideal for use with portable compressors on construction sites. Its rugged construction withstands the harsh conditions of building sites, including dragging over concrete, exposure to construction debris, and frequent movement, while maintaining flexibility for easy handling.
Q14: Is this hose suitable for use in shipyards and marine environments?
Yes, the wrapped cover air hose is well-suited for shipyard applications due to its abrasion resistance and durability. The cover compounds provide good resistance to saltwater exposure and weathering, making it reliable for pneumatic tools and equipment used in marine construction and repair.
Q15: How does the weight and flexibility compare to standard air hoses?
While the wrapped cover construction adds some weight compared to lightweight PVC air hoses, it offers significantly greater durability and abrasion resistance. The hose maintains good flexibility for handling, especially in larger diameters used for heavy-duty applications, and is designed to remain pliable even in cold weather conditions.
