Designed for water suction and discharge in agricultural, construction and industrial applications. The flexible hose features a smooth rubber tube and a green external helix for easier handling and dragging.
Temperature Range: -40°C to +60°C
Available Sizes: 1"–6"
Vacuum Rating: Up to 29.8 inHg, depending on size
| Availability: | |
|---|---|
| Quantity: | |
The Green EPDM Suction Water Hose is designed for drawing and transferring water in agricultural, construction, landscaping, and general industrial applications. Its flexible hose construction and external green helix make it suitable for applications that require practical handling and abrasion protection during movement.
Available in nominal inside diameters from 1 inch to 6 inches, the hose supports both suction and discharge operations within its specified pressure and vacuum ratings. It operates across a temperature range of -40°C to +60°C and is designed primarily for water and other confirmed compatible non-aggressive liquids.
A suction water hose must maintain its shape under negative pressure while providing sufficient flexibility for installation and handling. The Green EPDM Suction Water Hose is designed for water intake, pump connections, drainage and water transfer where a flexible hose is required.
The hose can be used to connect compatible pumps to water sources such as tanks, reservoirs and other water collection points. The selected diameter and vacuum rating should match the pump capacity and operating conditions.
For agricultural irrigation and water distribution, the hose provides a flexible connection between water sources, pumps and irrigation equipment. Available diameters allow buyers to specify a hose according to the required flow rate and system connections.
The hose is suitable for compatible water transfer and drainage tasks at construction sites. Its external helix helps protect the hose during handling and dragging across appropriate work surfaces.
The hose can be used for general industrial water circulation, equipment washing, landscaping irrigation and other water-handling operations, subject to fluid compatibility and operating requirements.

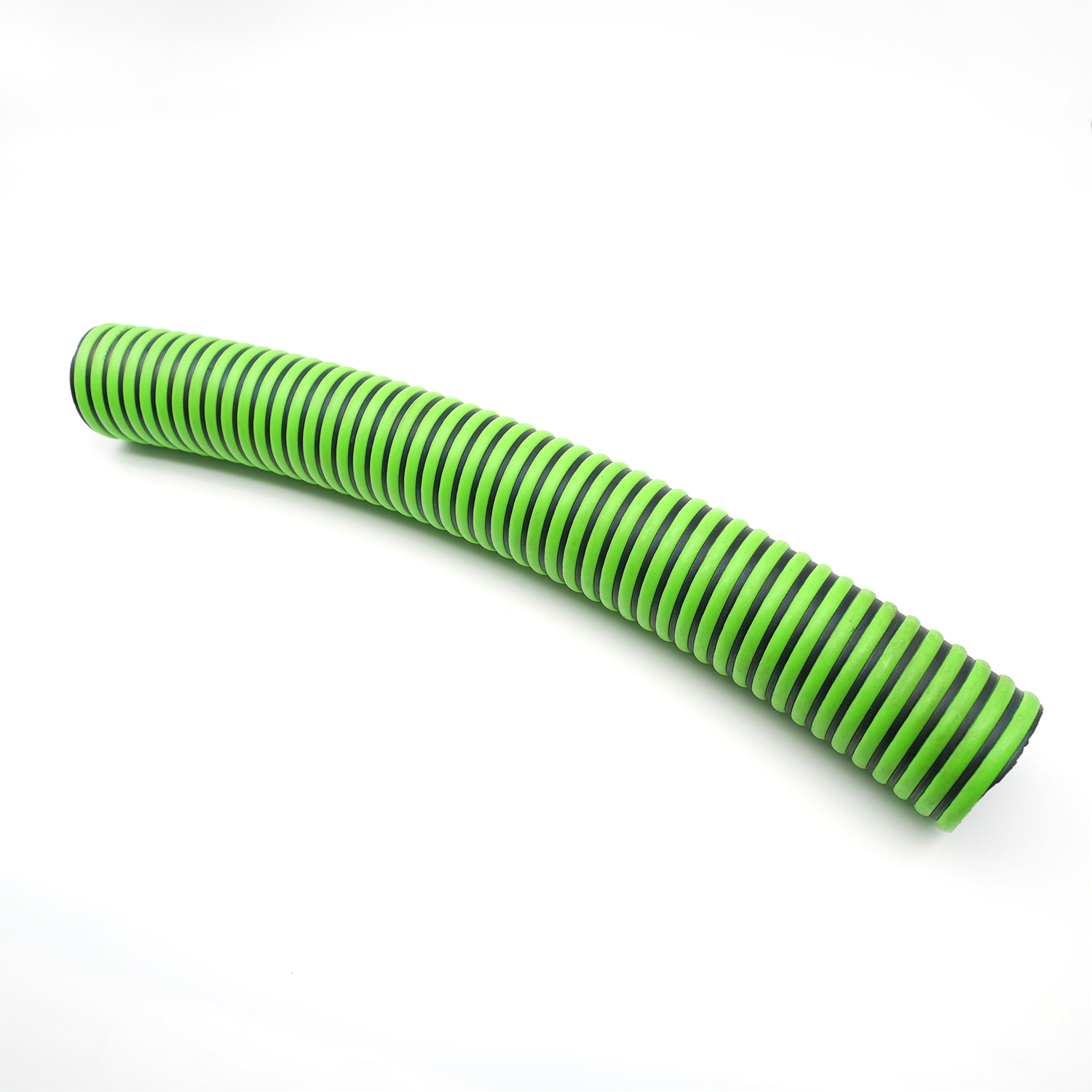

The external green helix is a distinctive feature of this hose. It provides a practical handling surface and helps protect the hose during movement, while the flexible construction supports routing around pumps and other equipment.
The helix also contributes to the hose's structural design. However, the permissible vacuum level depends on the complete hose construction and diameter, so the correct rating should always be checked against the specification table.

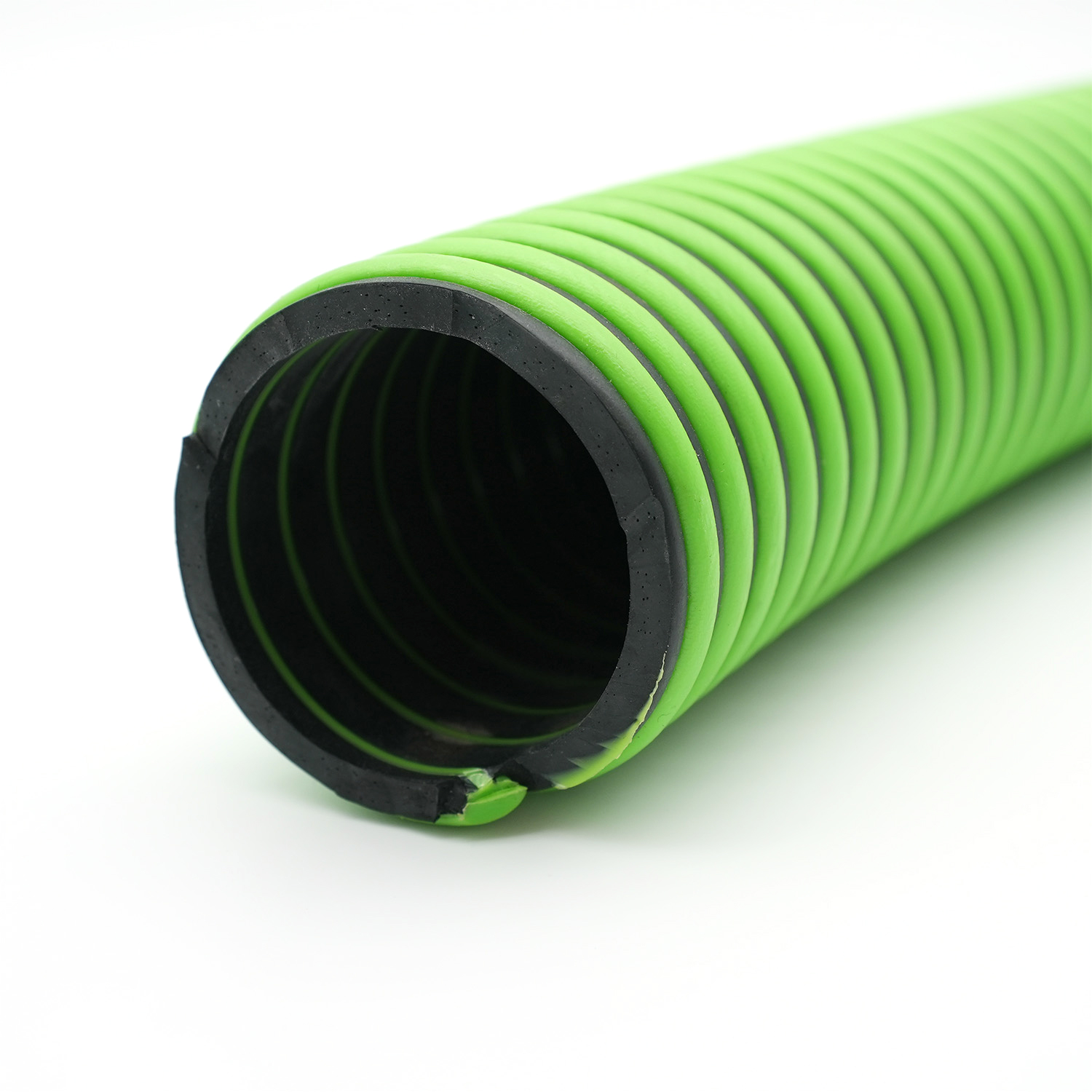

The smooth black rubber inner tube provides the passage for water transfer. Its suitability for other liquids depends on the actual rubber compound, fluid composition, concentration and operating temperature.
The hose uses a reinforced construction designed for its specified suction and discharge service. The reinforcement helps maintain structural integrity during normal operation and handling.
The external green polyethylene helix provides an identifiable outer structure and supports handling and abrasion protection during dragging and installation.
The hose is specified for temperatures from -40°C to +60°C. The appropriate service life depends on operating conditions, storage, exposure, handling and maintenance.

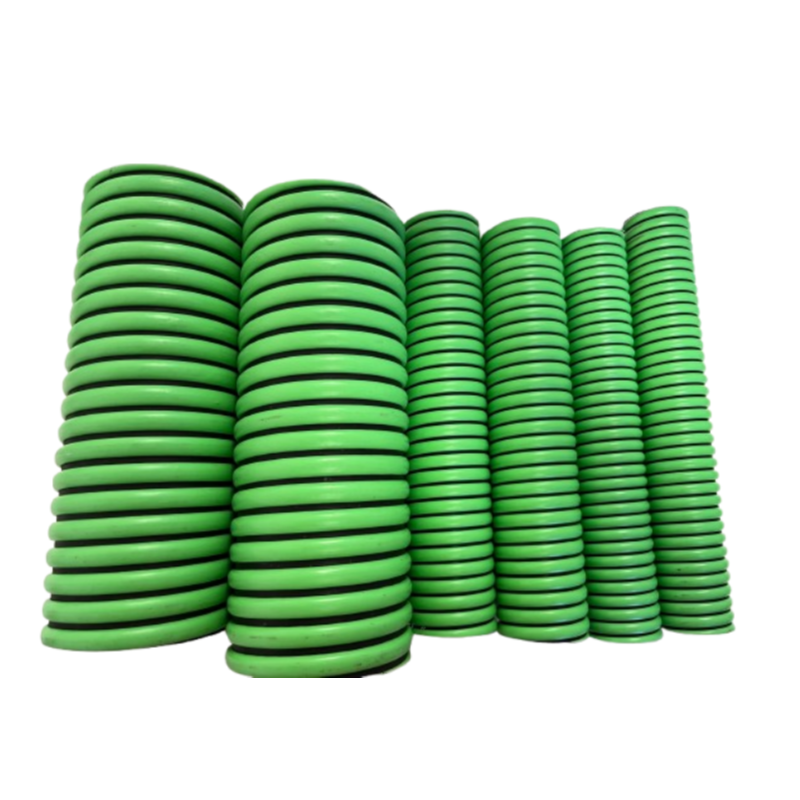

The Green EPDM Suction Water Hose is available in eight standard sizes. Working pressure, bend radius, vacuum rating and weight vary by diameter.
Part Number | Inside Diameter (inch) | Outside Diameter (inch) | Working Pressure (PSI) | Bend Radius (inch) | Vacuum Rating at 68°F (inHg) | Approx. Weight (lb/ft) |
|---|---|---|---|---|---|---|
EPDMWS-1 | 1 | 1.34 | 50 | 1.9 | 29.8 | 0.230 |
EPDMWS-1.25 | 1-1/4 | 1.65 | 50 | 3.2 | 29.8 | 0.340 |
EPDMWS-1.5 | 1-1/2 | 1.84 | 50 | 3.2 | 29.8 | 0.400 |
EPDMWS-2 | 2 | 2.43 | 50 | 5.2 | 29.8 | 0.670 |
EPDMWS-2.5 | 2-1/2 | 2.99 | 50 | 5.6 | 29.8 | 0.920 |
EPDMWS-3 | 3 | 3.52 | 43 | 7.1 | 29.8 | 1.100 |
EPDMWS-4 | 4 | 4.61 | 38 | 11.0 | 29.8 | 1.840 |
EPDMWS-6 | 6 | 6.81 | 23 | 20.0 | 28.0 | 3.070 |
Additional Specifications
Inner Tube: Black, smooth rubber
External Helix: Green polyethylene
Temperature Range: -40°C to +60°C (-40°F to +140°F)
Standard Length: 100 ft, cut into multiples of 5 ft at no additional charge, as specified in the product catalog
Primary Service: Water suction and discharge
Note: Working pressure and vacuum ratings are size-dependent. Confirm the required hose diameter, fluid compatibility, pressure conditions and vacuum rating before ordering.
Choosing the correct suction water hose involves more than matching the hose diameter to a pump connection. The flow rate, suction conditions, hose length and routing layout all affect performance.
1. Match the Inside Diameter to the Required Flow
The nominal inside diameter should suit the pump connection and required flow rate. An undersized hose may increase flow resistance, while an oversized hose may require different fittings and additional installation space.
2. Check the Vacuum Rating
For suction applications, verify the maximum allowable vacuum for the selected size. The listed ratings range from 28.0 to 29.8 inHg, depending on diameter.
3. Allow for the Minimum Bend Radius
Follow the listed bend radius when routing the hose around pumps, tanks and equipment. Excessive bending may restrict flow or place stress on the hose structure.
4. Confirm Fluid Compatibility
This product is primarily intended for water transfer. Do not assume compatibility with concentrated chemicals, oils, fuels or other aggressive liquids without confirmation from the manufacturer.
Connect suitable water pumps to irrigation systems, reservoirs and water sources used for farm operations.
Transfer water for general site drainage, temporary pumping and water removal where the specified pressure and vacuum ratings are appropriate.
Use for compatible water transfer in landscape maintenance, garden irrigation and other municipal water-handling tasks.
Support water circulation, equipment washing and general industrial water movement where the hose material and operating ratings meet the application requirements.
Yes. The hose is designed for suction and discharge service within its specified working pressure and vacuum ratings. Always verify the rating for the selected diameter and operating conditions.
The product is listed in eight nominal inside diameters: 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4" and 6".
The specified temperature range is -40°C to +60°C (-40°F to +140°F). Actual suitability also depends on the fluid and operating conditions.
The primary application is water suction and discharge. Compatibility with fertilizers, diluted chemicals or other liquids must be confirmed based on the exact formulation, concentration and temperature.
The catalog lists vacuum ratings of 29.8 inHg for sizes from 1" to 4", and 28.0 inHg for the 6" size at 68°F. Use the rating for the selected size rather than assuming that every size supports the same vacuum level.
Provide the required inside diameter, hose length, working pressure, suction conditions, intended fluid, order quantity and destination country. If special fittings or other requirements are needed, include those details in your inquiry.
