The Honestflex Textile Reinforced Air Hose is a general-purpose air and water delivery hose with a synthetic fiber braided reinforcement layer and SBR rubber as the base material. It is widely used in various pneumatic systems and water supply operations due to its excellent cost-effectiveness and balanced physical properties. The hose features a three-layer composite structure: the inner layer is made of black SBR synthetic rubber extrusion molding, providing good airtightness and moderate oil resistance, meeting the daily transportation needs of air, water, and mild chemicals; the reinforcement layer uses a high-tensile-strength synthetic fiber braided layer, providing stable pressure resistance and ensuring dimensional stability and no bulging or deformation under a working pressure of 20 Bar; the outer layer is also made of black SBR rubber, formed into a dense and uniform protective layer through an extrusion coating process, giving the hose excellent wear resistance, ozone resistance, and aging resistance. The hose operates in a temperature range of -30°C to +80°C, maintaining good flexibility in both extremely cold and high-temperature environments. Whether for mine drainage, construction site air supply, farmland irrigation, or workshop support, the Textile Reinforced Air Hose meets the needs of various general operating conditions with stable performance and a user-friendly operation.
Air Compressor Connection: Suitable for the output pipelines of stationary air compressors and mobile diesel air compressors, connecting to air tanks, drying and filtering equipment, and workshop compressed air piping systems.
Construction Sites: Widely used for supplying air to tools such as concrete vibrators, pneumatic nail guns, and pneumatic picks on construction sites, as well as for temporary water supply and drainage operations, adapting to complex construction site environments.
Mining Equipment Air Supply: Used for compressed air delivery to pneumatic control systems in factory workshops, pneumatic tools in mining operations, pneumatic motors, and pneumatic grinding wheels, meeting daily production needs.
Agricultural and Horticultural Irrigation: Suitable for farmland irrigation, orchard spraying, greenhouse water supply, and watering and sprinkler irrigation operations in golf courses, park lawns, and garden green belts.
Municipal and Public Utilities: Used for municipal road maintenance, landscaping irrigation, sanitation vehicle support, and various temporary water and gas supply operations.
Mine Drainage and Slurry Transportation: Some large-diameter models can be used for mine pit drainage, tunnel water pumping, and the suction and compression of sewage and slurry containing silt.
Commercial and Mobile Services: Suitable for compressed air supply in auto repair shops, tire inflation stations, and mobile service vehicles, providing a reliable air source for equipment such as pneumatic wrenches and air pumps.
Economical, versatile, and cost-effective: The moderate cost of SBR rubber material and mature manufacturing process give this hose a significant price advantage while meeting the needs of air, water, and mild chemical transportation.
Excellent Abrasion and Weather Resistance: The outer SBR rubber layer has excellent abrasion resistance and resistance to ozone and ultraviolet rays, allowing for long-term outdoor use in sun and rain without aging or cracking.
Excellent Flexibility and Knot-Resistant: The fiber braided reinforcement structure gives the hose excellent flexibility, a small bending radius, and it remains flexible even at temperatures as low as -30°C, making it less prone to kinking and tangling during use.
Lightweight Design for Easy Handling: The hose's overall lightweight design facilitates on-site dragging, coiling, and storage, reducing operator workload and improving the convenience of mobile operations.
Stable Interlayer Bonding: The inner, reinforcing, and outer layers are firmly bonded, exhibiting minimal deformation under pressure and preventing delamination, ensuring the hose's structural stability during long-term use.
Good Anti-Pulse Performance: The fiber braided structure effectively absorbs pressure fluctuations generated during the start-up and shutdown of pneumatic systems, reducing impact on the hose and extending its service life.
Wide Media Adaptability: Suitable for air, water, and mild water-soluble chemicals, meeting the daily conveying needs of various industries such as industry, agriculture, and construction, achieving multi-purpose functionality.

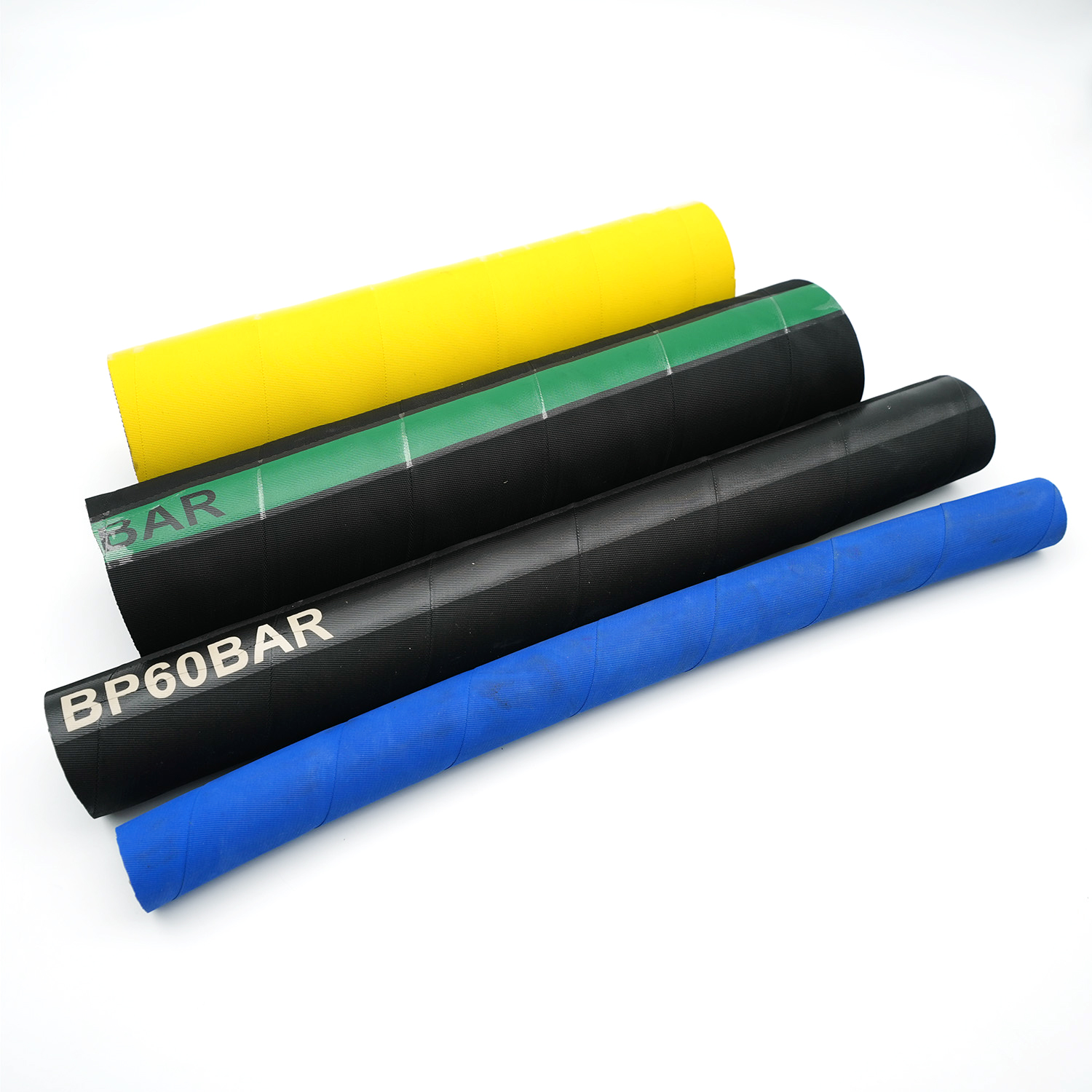

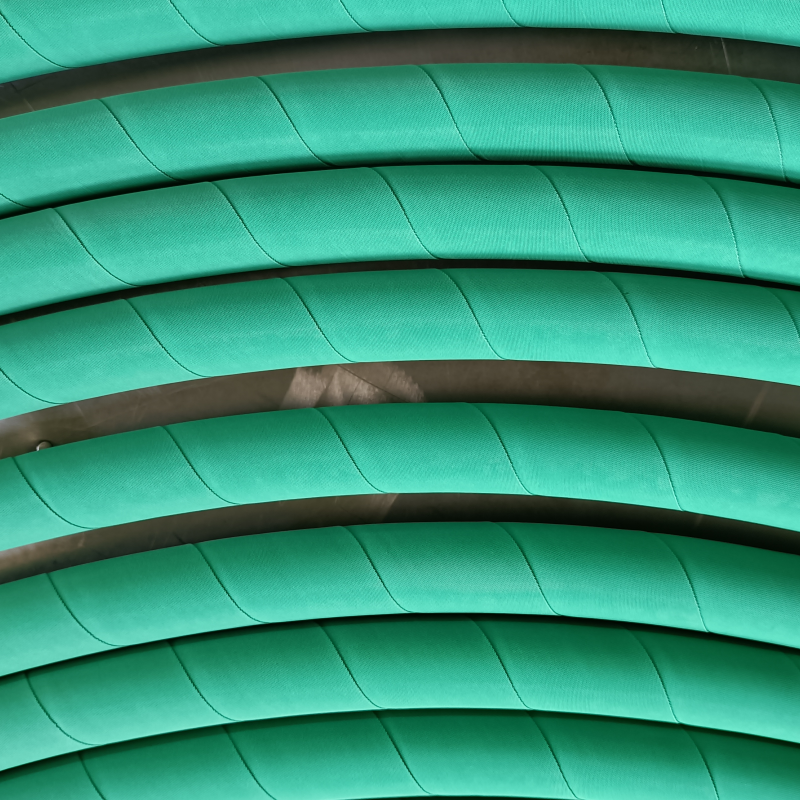

Wrapped Cover Air Hose 300 PSI
I.D. | O.D. | W.P. | B.P. | Length | ||||
inch | mm | mm | bar | psi | bar | psi | m | ft |
3/16" | 4.8 | 12 | 20 | 300 | 60 | 900 | 100 | 330 |
1/4" | 6.4 | 13 | 20 | 300 | 60 | 900 | 100 | 330 |
5/16" | 7.9 | 15 | 20 | 300 | 60 | 900 | 100 | 330 |
3/8" | 9.5 | 17 | 20 | 300 | 60 | 900 | 100 | 330 |
1/2" | 12.7 | 23 | 20 | 300 | 60 | 900 | 100 | 330 |
3/4" | 19.1 | 30 | 20 | 300 | 60 | 900 | 100 | 330 |
1" | 25.4 | 37 | 20 | 300 | 60 | 900 | 100 | 330 |
1-1/4" | 31.8 | 46 | 20 | 300 | 60 | 900 | 60 | 200 |
1-1/2" | 38.1 | 52 | 20 | 300 | 60 | 900 | 60 | 200 |
2" | 50.8 | 68 | 20 | 300 | 60 | 900 | 60 | 200 |
2-1/2" | 63.5 | 80 | 20 | 300 | 60 | 900 | 60 | 200 |
3" | 76.2 | 92 | 20 | 300 | 60 | 900 | 60 | 200 |
4" | 101.6 | 120 | 20 | 300 | 60 | 900 | 60 | 200 |

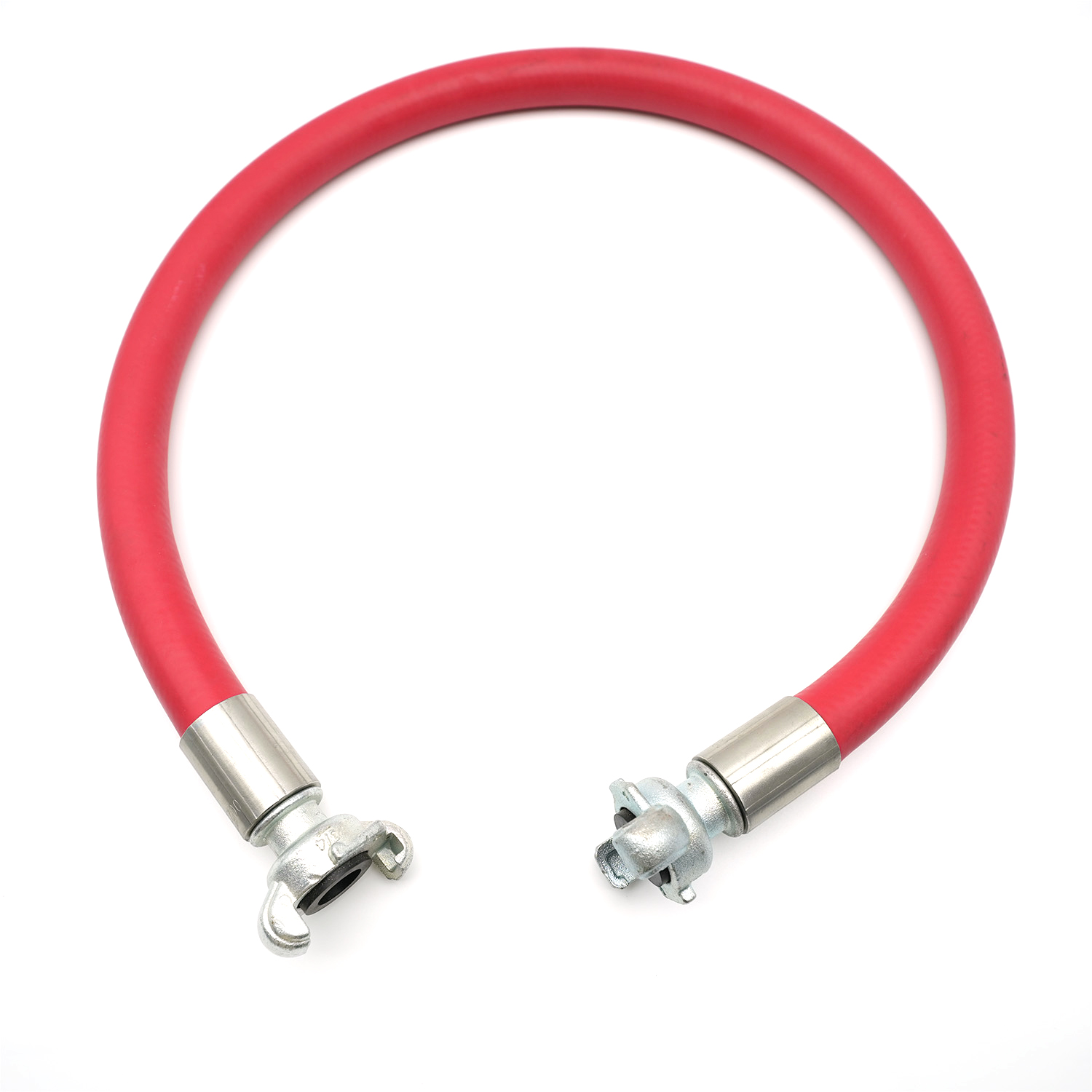

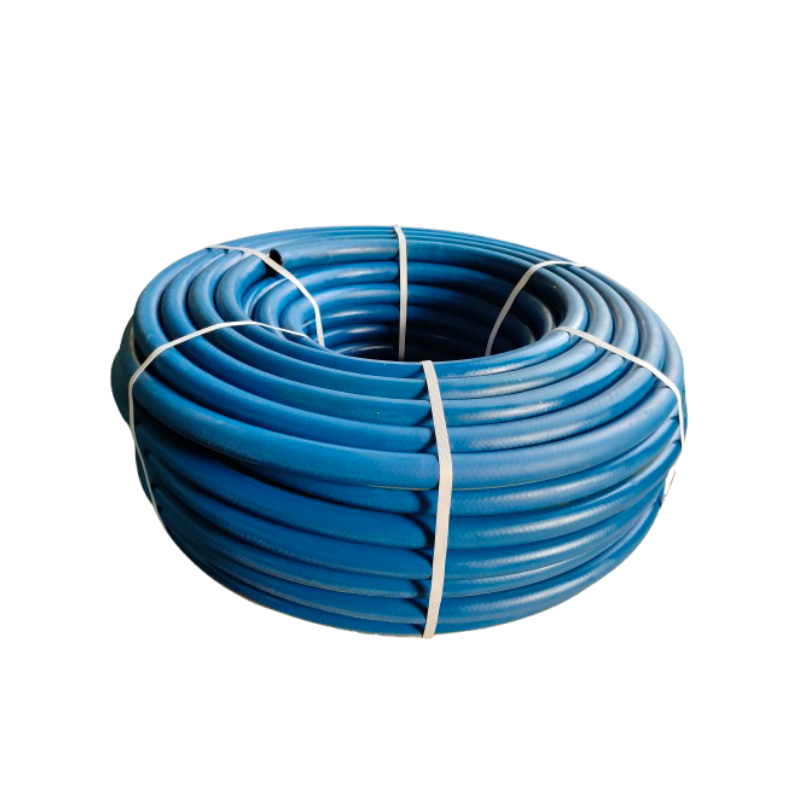

Smooth Cover Air Hose 300 PSI
I.D. | O.D. | W.P. | B.P. | L | ||||
inch | mm | mm | bar | psi | bar | psi | m | ft |
3/16" | 4.8 | 12 | 20 | 300 | 60 | 900 | 100 | 330 |
1/4" | 6.4 | 13 | 20 | 300 | 60 | 900 | 100 | 330 |
5/16" | 7.9 | 15 | 20 | 300 | 60 | 900 | 100 | 330 |
3/8" | 9.5 | 17 | 20 | 300 | 60 | 900 | 100 | 330 |
1/2" | 12.7 | 21 | 20 | 300 | 60 | 900 | 100 | 330 |
5/8" | 15.9 | 26 | 20 | 300 | 60 | 900 | 100 | 330 |
3/4" | 19.1 | 29 | 20 | 300 | 60 | 900 | 100 | 330 |
1" | 25.4 | 36 | 20 | 300 | 60 | 900 | 100 | 330 |
1-1/4" | 31.8 | 44 | 15 | 225 | 45 | 675 | 50 | 200 |
1-1/2" | 38.1 | 54 | 15 | 225 | 45 | 675 | 50 | 200 |
Q1: What media can this Textile Reinforced Air Hose handle?
This hose is specifically designed for the conveyance of compressed air in pneumatic systems. It is suitable for powering air tools, compressors, and industrial equipment. It is not recommended for water, chemicals, or fuel transfer unless specifically approved for such applications.
Q2: What is the working temperature range of the hose?
The textile reinforced air hose operates effectively within a temperature range of -40°C (-104°F) to 70°C (+158°F), making it suitable for most workshop and outdoor applications in moderate climates.
Q3: Is this hose suitable for high-pressure air applications?
Yes, the hose is reinforced with high-strength textile cord to withstand typical industrial air pressures. Working pressures vary by size and construction, commonly ranging from 15 bar to 20 bar , with burst pressures significantly higher for safety.
Q4: What are the available sizes and pressure ratings?
The hose is available in a wide range of inner diameters, typically from 12 mm to 120 mm. Working pressure ratings vary by size and reinforcement layers, with common options including 15 bar and 20 bar ratings. Custom sizes and pressure specifications are available upon request.
Q5: What type of end fittings are compatible with this hose?
The hose can be supplied with plain ends for standard hose clamps, or pre-fitted with various connection types including brass fittings, steel couplings, quick-release connectors, and industrial interchange couplings according to customer requirements.
Q6: What standards does this hose meet?
This textile reinforced air hose is manufactured to meet international standards for compressed air applications, including ISO 2398 for rubber air hoses or relevant national standards, ensuring reliable performance and safety in industrial environments.
Q7: What are the standard hose lengths available?
Standard hose lengths are typically available in coils of 10 meters, 20 meters, 30 meters, or 50 meters. Custom cut lengths and pre-assembled hose sets with fittings can be produced to meet specific equipment and installation requirements.
Q8: Is this hose resistant to oil and abrasion?
Yes, the outer cover is formulated to resist oil, grease, and mechanical abrasion commonly encountered in workshops and construction sites. For applications with high oil content in the air supply, oil-resistant tube compounds are available.
Q9: Can this hose be used with lubricated air systems?
Yes, the hose materials are generally compatible with the mineral oils commonly used in air tool lubrication systems. For systems with synthetic lubricants or high oil concentrations, please consult our technical team for specific compatibility recommendations.
Q10: What type of reinforcement is used in this hose?
The hose features one or multiple layers of high-strength synthetic textile cord reinforcement, such as polyester or nylon, providing excellent pressure resistance, dimensional stability, and flexibility. This textile reinforcement ensures the hose maintains its integrity under repeated pressurization cycles and flexing during use.
Q11: Is this hose anti-static or conductive?
Standard textile reinforced air hoses are not typically conductive. For applications requiring static dissipation, such as in explosive environments or during paint spraying, special anti-static or conductive constructions are available upon request.
Q12: Can this hose be used with portable air compressors?
Yes, the hose is ideal for use with portable air compressors in construction, automotive, and DIY applications. Its lightweight and flexible construction makes it easy to handle and transport, while providing reliable performance for various pneumatic tools.
