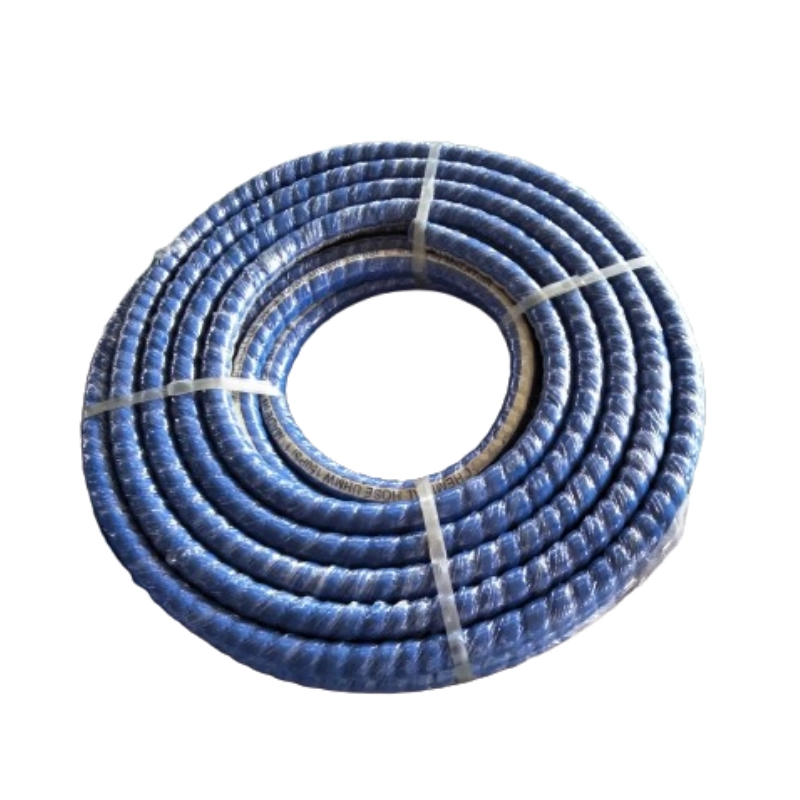

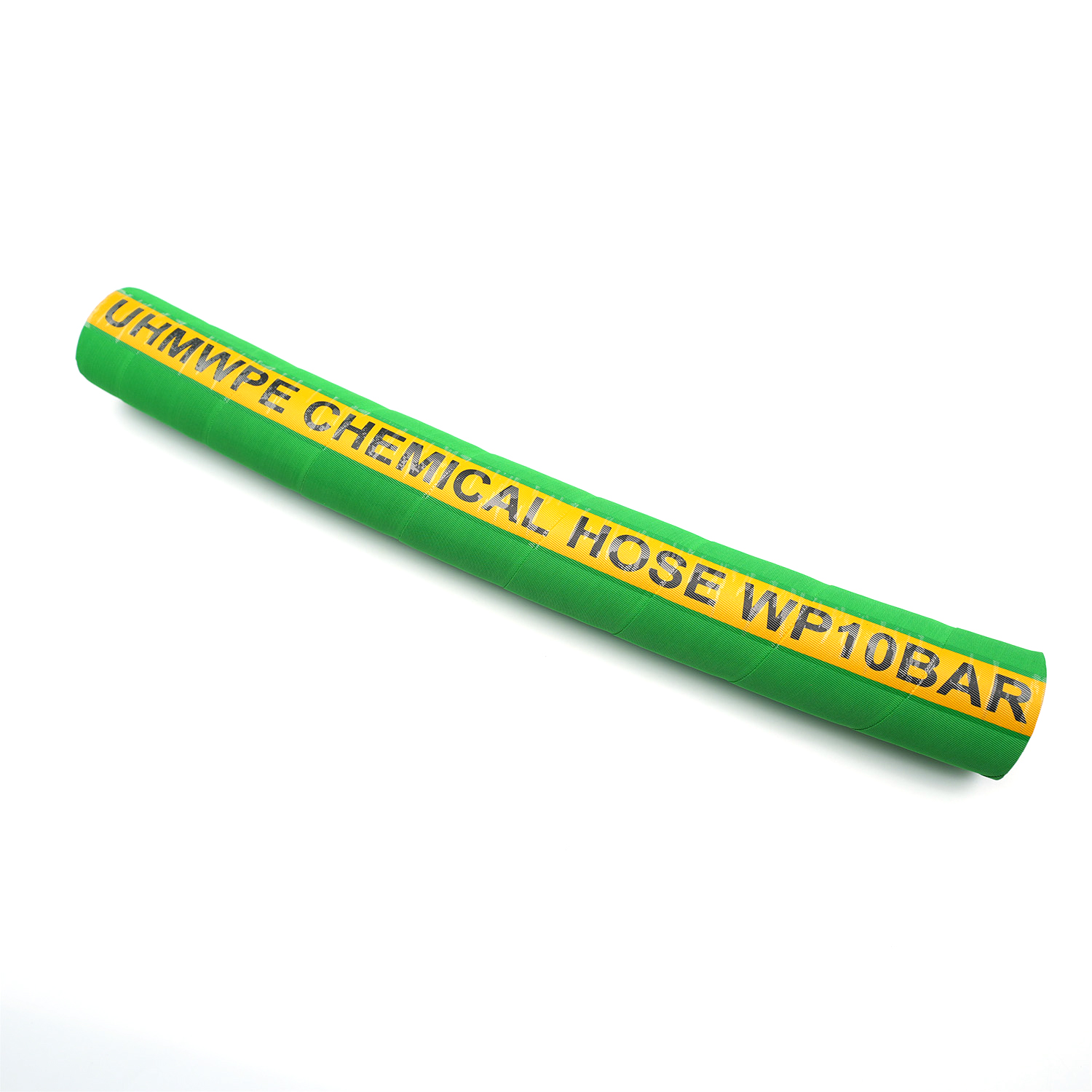

The Chemical Suction Hose is a high-performance hose designed for the safe and efficient transfer of chemicals, acids, and solvents. Built with advanced materials and reinforced for durability, this hose is ideal for in-plant or tank truck applications. Its robust construction ensures resistance to chemicals, weathering, and ozone, making it a dependable choice for industries requiring reliable chemical handling solutions.

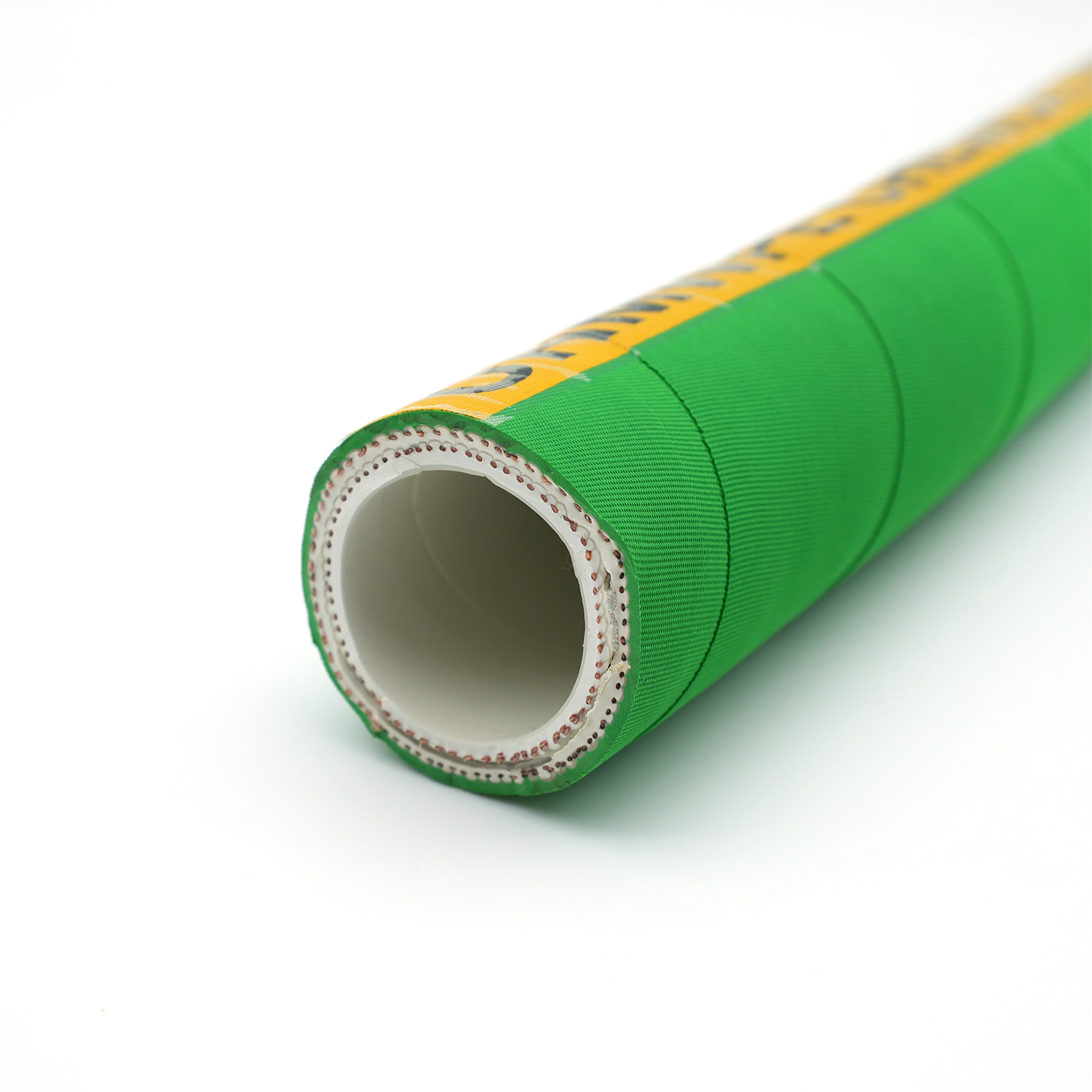

● Tube Material: Smooth Ultra High Molecular Weight Polyethylene (UHMWPE) and EPDM, ensuring excellent chemical resistance and product compatibility.
● Reinforcement: Multi-ply high-strength synthetic fabric and helix wire for added durability and kink resistance.
● Cover: EPDM with resistance to chemicals, weathering, and ozone. Available in blue or green, wrapped or corrugated.
● Working Temperature: -40℃ to +120℃ (-72℉ to +248℉), suitable for a wide range of environments.
● Pressure Rating: Withstands working pressures up to 20 bar (300 psi) and burst pressures up to 60 bar (900 psi).
Safety and Compliance
● Meets FDA, USDA, and 3-A standards, ensuring no product contamination.
● Dual-wire helix design enables full suction, resists kinking, and grounds static electricity.
● Designed for suction and discharge of common acids, chemicals, and solvents.
● Compatible with internally expanded couplings for secure connections.
The Chemical Suction Hose is widely used in the following industries:
● Chemical Processing: Safe transfer of acids, solvents, and other chemicals.
● Tank Truck Operations: Loading and unloading of chemical tankers.
● Industrial Plants: In-plant chemical handling and transfer.
● Food and Beverage: Compliant with FDA and USDA standards for safe product handling.
I.D. | 0.D. | W.P. | B.P. | LENGTH | ||||
inch | mm | mm | bar | psi | bar | psi | m | ft |
3/4" | 19.1 | 31 | 20 | 300 | 60 | 900 | 61 | 200 |
1" | 25.4 | 38 | 20 | 300 | 60 | 900 | 61 | 200 |
1-1/4" | 31.8 | 47 | 20 | 300 | 60 | 900 | 61 | 200 |
1-1/2" | 38.1 | 54 | 20 | 300 | 60 | 900 | 61 | 200 |
2" | 50.8 | 67.8 | 20 | 300 | 60 | 900 | 61 | 200 |
2-1/2" | 63.5 | 84 | 20 | 300 | 60 | 900 | 61 | 200 |
3" | 76.2 | 96 | 20 | 300 | 60 | 900 | 61 | 200 |
4" | 101.6 | 123 | 20 | 300 | 60 | 900 | 61 | 200 |
6" | 152 | 175 | 20 | 300 | 60 | 900 | 30.5 | 100 |
A: The hose is designed for common acids, chemicals, and solvents. Its UHMWPE and EPDM construction ensures compatibility with a wide range of substances.
A: Yes, the hose can operate in temperatures ranging from -40℃ to +120℃ (-72℉ to +248℉).
A: Yes, it complies with FDA, USDA, and 3-A standards, ensuring safe and contamination-free product handling.
A: The hose can withstand working pressures up to 20 bar (300 psi) and burst pressures up to 60 bar (900 psi).
A: The hose is available in inner diameters ranging from 3/4" to 6", with varying outer diameters depending on the size.
