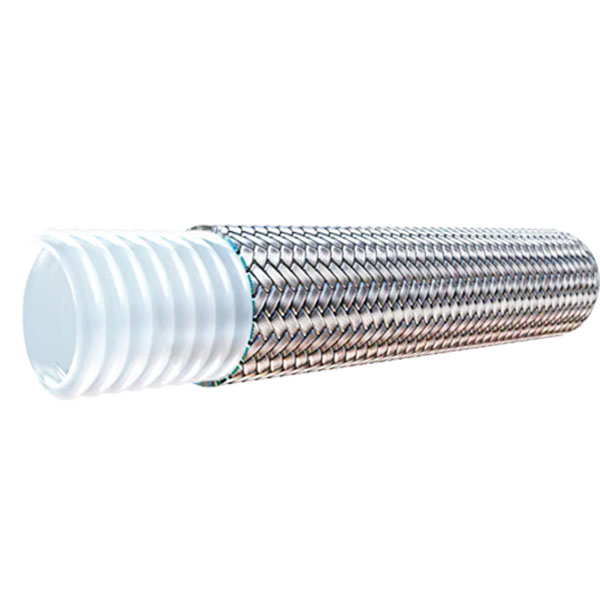

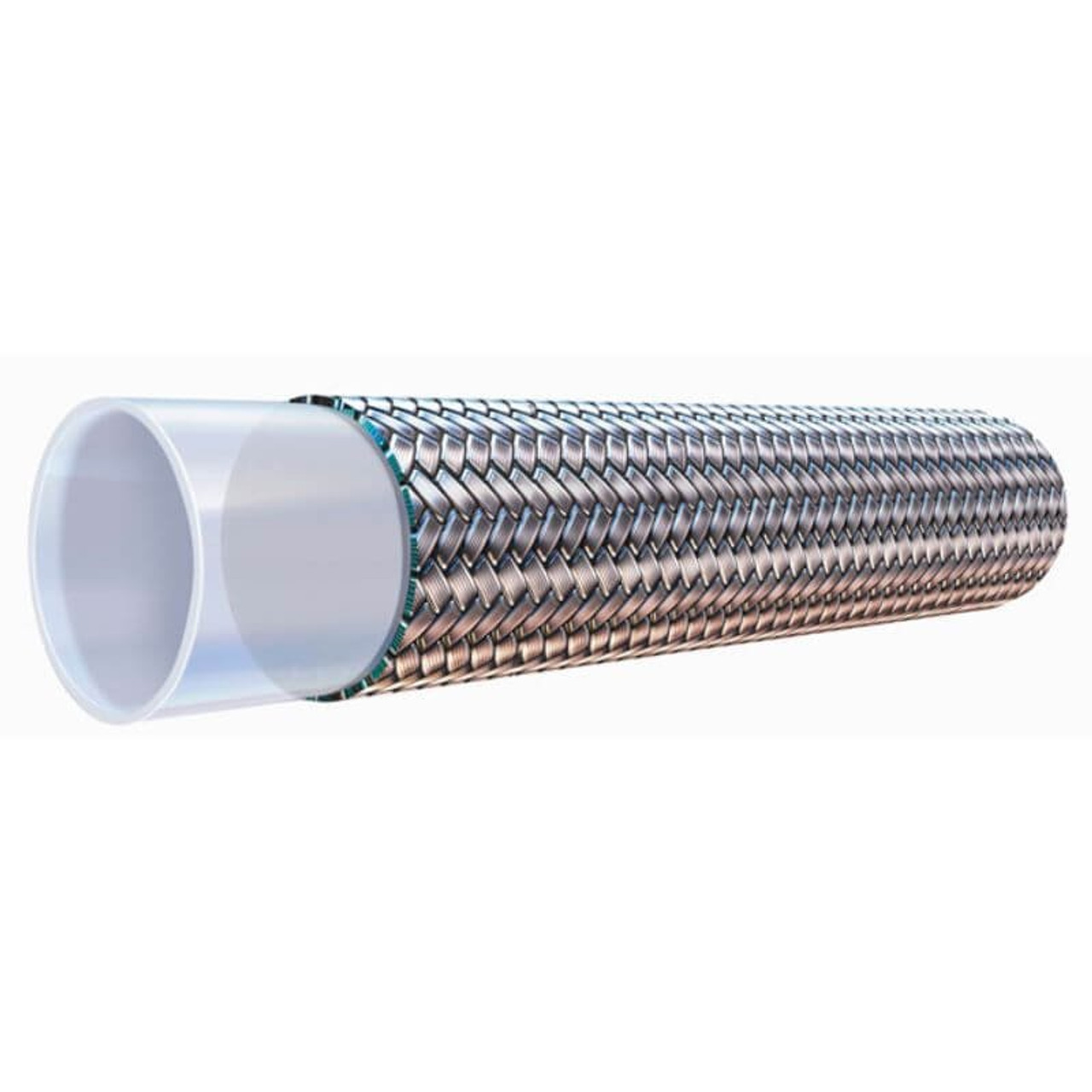

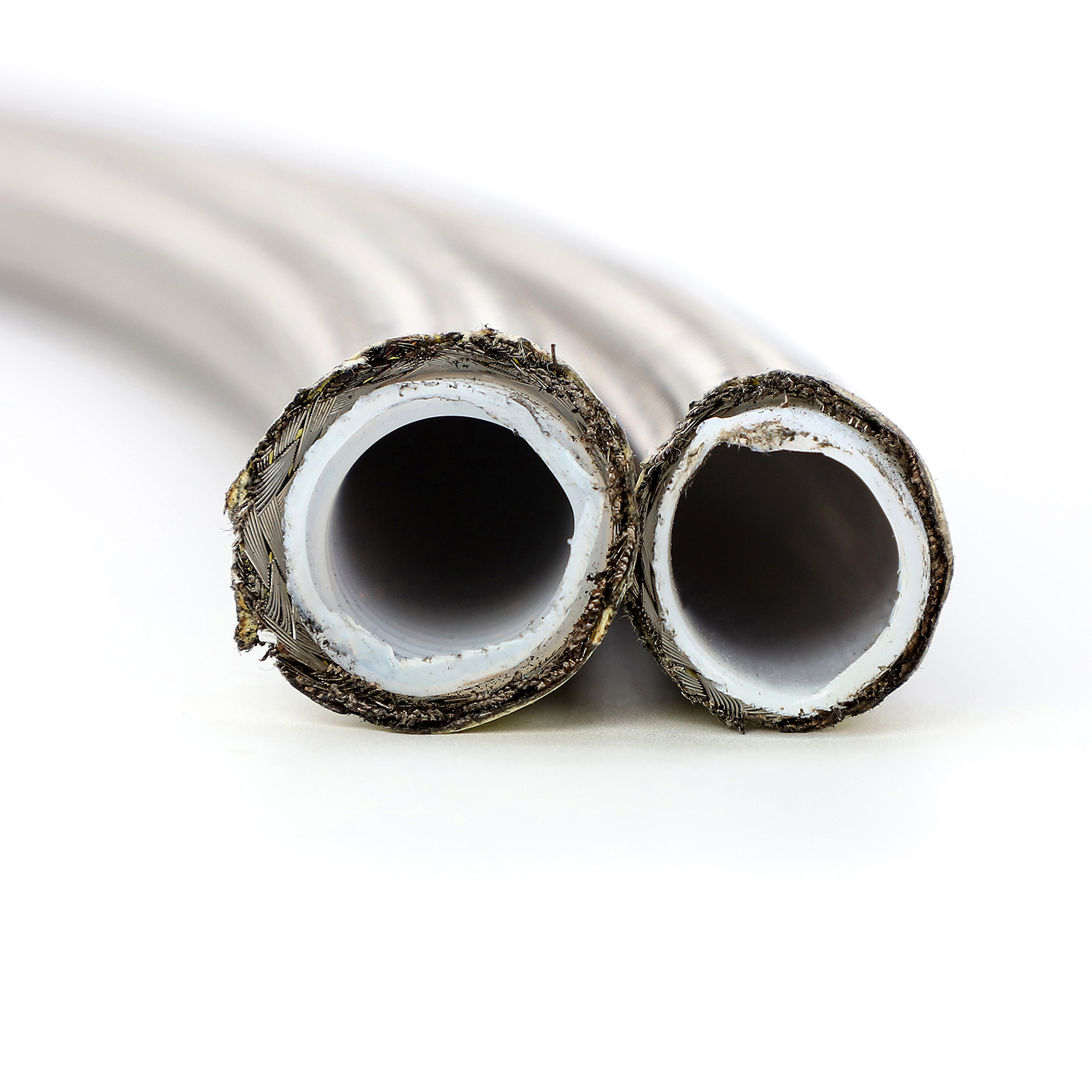

The SAE 100R14 hydraulic hose is a high-performance industrial hose made of polytetrafluoroethylene (PTFE). Designed strictly according to international standards, it is specifically developed to meet the needs of extreme temperatures, highly corrosive media, and high-purity transportation. PTFE (polytetrafluoroethylene), a synthetic fluoropolymer, is renowned for its hydrophobicity, non-adhesiveness, high density, and excellent resistance to high and low temperatures. The inner tube of this product is made of smooth PTFE material, ensuring smooth media flow and preventing reaction with the tube wall. The reinforcing layer is woven from a single layer of 304 high-strength stainless steel wire, significantly improving the hose's pressure resistance and resistance to mechanical damage. Based on structural differences, this hose is divided into Type A and Type B: Type A is the standard type with a plain PTFE inner tube; Type B has a conductive inner surface, effectively preventing static electricity buildup and is suitable for flammable and explosive environments. The hose has an extremely wide operating temperature range and can operate stably for extended periods in environments from -60℃ to +260℃, meeting the needs of various harsh industrial scenarios.
SAE 100R14 PTFE hydraulic hoses, with their superior chemical resistance, temperature resistance, and cleanliness properties, are widely used in specialized industries with high requirements for media purity and safety. Specific applications include:
Chemical and Petrochemical Industries: Suitable for conveying strong acids, strong alkalis, organic solvents, chlorides, and other corrosive chemicals. The inertness of PTFE material ensures the hose is not corroded, guaranteeing process safety and media purity.
Pharmaceutical and Biotechnology Industries: Used for API (Active Pharmaceutical Ingredient) delivery, aseptic filling, cleaning systems, and laboratory equipment. The smooth inner wall of PTFE does not absorb drug components, meeting GMP (Good Manufacturing Practice) cleanliness requirements.
Food and Beverage Processing: Suitable for conveying fruit juices, dairy products, alcoholic beverages, edible oils, and food additives. PTFE material is non-toxic and odorless, and can withstand high-temperature steam cleaning and CIP/SIP (Clean In-Place)/SIP (Standard In-Place) sterilization processes.
Aerospace and Military Industries: Used in hydraulic systems, fuel delivery, and fluid control in high and low temperature environments. Its wide temperature range and stainless steel reinforced structure meet stringent reliability and safety requirements.
Semiconductor and Electronics: Suitable for conveying high-purity chemicals, deionized water, and corrosive gases. PTFE's low leaching properties prevent contamination of precision electronic components.
Automotive and Transportation: Used in engine cooling systems, turbocharger lubrication lines, fuel return lines, and air conditioning systems. Resistant to the corrosive effects of high-temperature engine oil, fuel, and refrigerants.
Industrial Heat Transfer Media and Steam: Suitable for conveying high-temperature heat transfer oils, hot air, and saturated steam. PTFE can withstand long-term temperatures up to 260°C, meeting the needs of heat transfer media heating systems.
Anti-static Special Applications: Type B conductive PTFE hoses are suitable for conveying flammable media (such as fuels and solvents), effectively dissipating static charge and preventing fire or explosion risks.
SAE 100R14 PTFE hydraulic hoses offer significant advantages in materials science and structural design, providing reliable protection for high-end manufacturing:
Extreme Temperature Adaptability: Operating temperature range covers -60℃ to +260℃, maintaining stable physical properties and long service life in both cryogenic environments and high-temperature heat transfer systems.
Near-Universal Chemical Resistance: PTFE material is inert to almost all industrial chemicals (including strong acids, strong alkalis, oxidants, halogens, and organic solvents), ensuring the hose is not degraded in corrosive media.
Non-Adhesive Self-Cleaning Properties: PTFE has extremely low surface energy, making it difficult for residues in the medium to adhere to the hose wall, effectively preventing blockages and cross-contamination, especially suitable for the food, pharmaceutical, and coating industries.
Optional Static Dissipation Structure: Type B hoses have an inner layer with conductive carbon black, and the surface resistance meets anti-static specifications, making them safe for transporting flammable liquids and gases.
Low friction and energy saving: PTFE has an extremely low coefficient of friction on its inner wall, resulting in low fluid pressure drop and lower energy consumption when conveying the same medium, while also reducing the load on pumping equipment.
Aging resistance and long service life: Both PTFE and stainless steel materials have excellent resistance to ozone, ultraviolet rays, and aging, maintaining long-term stability even in outdoor or harsh environments.
Lightweight and compact design: Compared to multi-layer rubber-steel wire hoses, PTFE hoses are lighter and have a more compact outer diameter, making them easier to arrange in space-constrained equipment and reducing installation difficulty.
Size | I.D. | O.D. | Wall Thickness | W.P. | B.P. | Minimum Bending Radius | ||||
inch | mm | inch | mm | inch | mm | psi | bar | psi | bar | mm |
1/8" | 3.5 | 0.138 | 6.6 | 0.26 | 1 | 4727 | 326 | 14613 | 1007.76 | 51 |
3/16" | 4.8 | 0.189 | 8 | 0.315 | 0.85 | 3582 | 247 | 10738 | 740.52 | 75 |
1/4" | 6.4 | 0.252 | 9.2 | 0.362 | 0.85 | 3106 | 214.2 | 9658 | 666.06 | 81 |
5/16" | 8 | 0.315 | 11 | 0.433 | 0.85 | 2781 | 191.76 | 8682 | 598.74 | 92 |
3/8" | 9.7 | 0.382 | 12.8 | 0.504 | 0.85 | 2736 | 188.7 | 8223 | 567.12 | 131 |
1/2" | 12.7 | 0.5 | 15.9 | 0.626 | 1 | 1568 | 108.12 | 6818 | 470.22 | 182 |
5/8" | 16 | 0.63 | 19.2 | 0.756 | 1 | 1878 | 129.54 | 5650 | 389.64 | 211 |
3/4" | 19 | 0.748 | 22.7 | 0.894 | 1.2 | 1154 | 79.56 | 3979 | 274.38 | 338 |
7/8" | 22.2 | 0.874 | 26 | 1.024 | 1.2 | 887 | 61.2 | 2884 | 198.9 | 421 |
1" | 25 | 0.984 | 29.3 | 0.154 | 1.5 | 592 | 40.8 | 2263 | 156.06 | 539 |
2" | 50 | 1.969 | 55.6 | 2.189 | 2 | 444 | 30.6 | 1775 | 122.4 | 1015 |
This hose is designed for the transmission of petroleum-based and synthetic hydraulic fluids used in high-temperature hydraulic systems. It is commonly used in applications such as steel mills, foundries, and mobile machinery operating near heat sources.
The hose is specifically engineered to operate effectively within a high-temperature range, typically from approximately -40°C (-40°F) to +135°C (+275°F), making it suitable for extreme heat environments.
This hose is designed and reinforced for high-pressure discharge lines in high-temperature conditions. Its construction is optimized for positive pressure and thermal stability. For suction lines, a dedicated low-pressure or vacuum-rated hose is recommended.
The hose is available in a range of standard inner diameters, typically from 1/4" (6.3 mm) to 2" (51 mm). It offers high working pressure ratings suitable for demanding hydraulic circuits, with specific pressures varying by diameter. Custom sizes and pressure specifications are available.
Yes, the hose is supplied as complete assemblies with permanently attached, crimped end fittings. Standard options include JIC, BSPP, NPT, and flange connections, which can be customized to meet system specifications.
This hose is manufactured in strict accordance with the SAE 100R14 performance standard, which specifies requirements for high-temperature, high-pressure hydraulic hoses with steel wire braid reinforcement.
Hose assemblies are custom-made to specified cut lengths with fittings attached. Bulk hose for fabrication is also available on reels in standard lengths such as 100, 250, or 500 meters.
Yes. The hose features a tough, heat-, abrasion-, and weather-resistant outer cover, making it highly suitable for demanding outdoor applications exposed to high ambient temperatures, such as near engines, exhausts, or in industrial heat processes.
Yes, this hose is the standard choice for connecting components like pumps, valves, and cylinders in hydraulic systems that operate under high pressure and elevated temperatures.
The hose features multiple layers of high-tensile steel wire braid reinforcement. This construction provides the exceptional strength and durability needed to withstand high pressure, impulse cycles, and continuous exposure to elevated temperatures, ensuring reliable performance and long service life.
