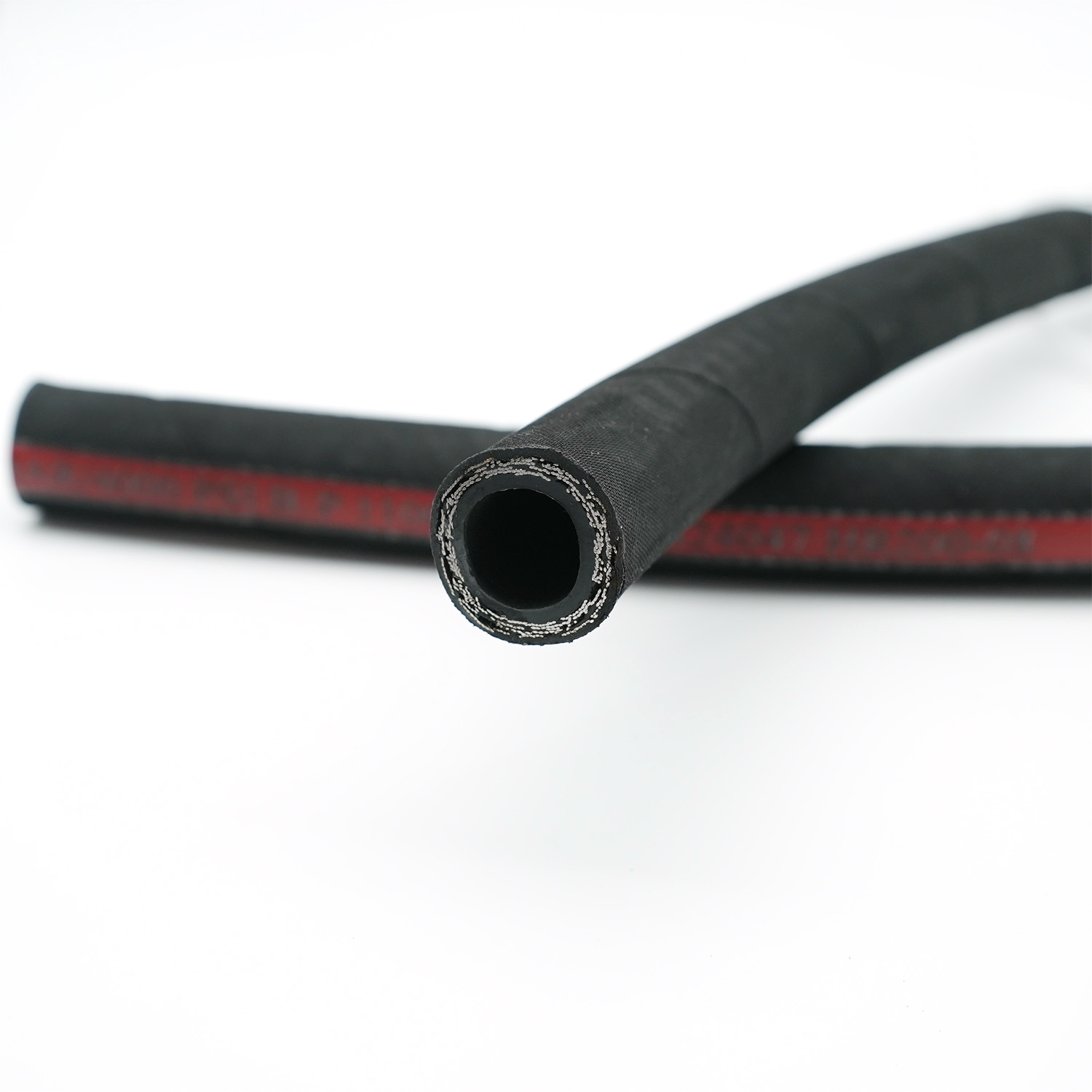

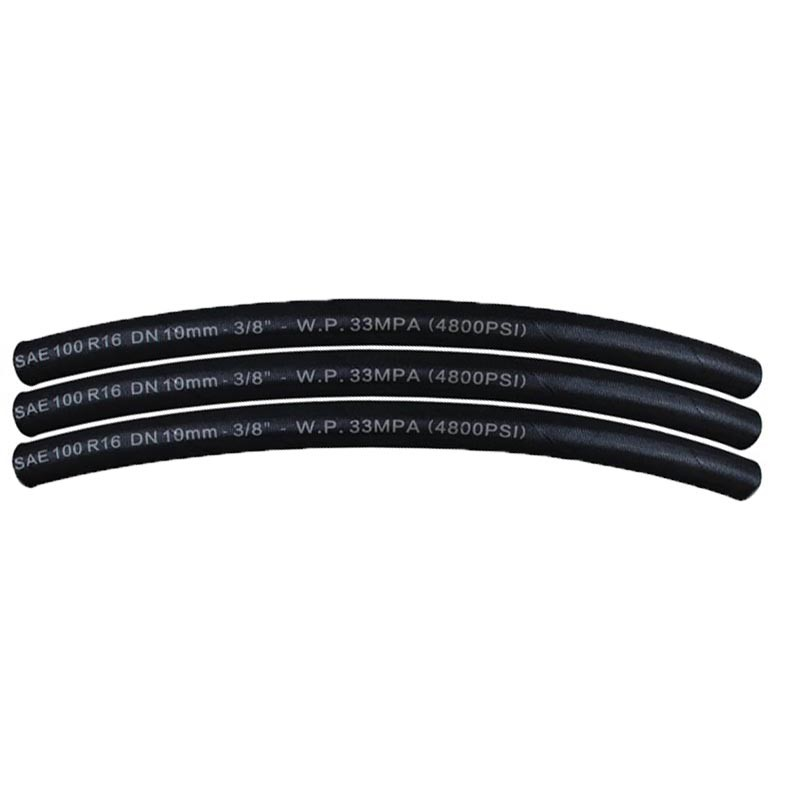

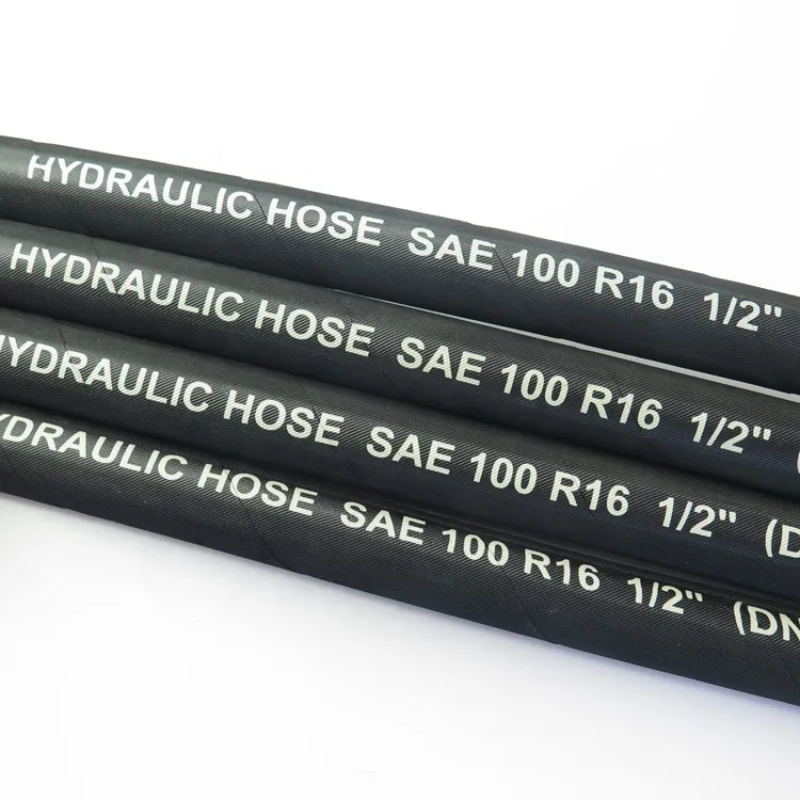

The SAE 100R16 hydraulic hose is a high-performance hydraulic hose designed and manufactured according to international standards. It is widely used in hydraulic transmission applications where high working pressure and system stability are required. This product features a three-layer precision composite structure: the inner layer is made of oil-resistant synthetic rubber, offering excellent media compatibility and ensuring smooth delivery of petroleum-based, water-based, and biodegradable hydraulic oils without swelling or aging; the reinforcing layer consists of one or two layers of high-tensile-strength steel wire braiding, depending on the pressure rating. This braiding structure provides the hose with excellent pressure resistance and kinking resistance while maintaining good flexibility; the outer layer is covered with black, wear-resistant, and weather-resistant synthetic rubber, certified by MSHA (Mine Safety and Health Administration), and possesses flame-retardant, ozone-resistant, UV-resistant, and anti-aging properties. This hose is suitable for temperatures ranging from -40℃ to +100℃, with a safety factor of 4:1, making it an ideal choice for hydraulic systems in engineering machinery, agricultural equipment, and industrial equipment.
SAE 100R16 hydraulic hoses, with their excellent pressure-bearing capacity and flexible installation characteristics, are widely used in the hydraulic systems of various mobile and stationary equipment. Specific applications include:
Construction Machinery and Heavy Equipment: Widely used in the hydraulic systems of excavators, loaders, bulldozers, road rollers, and pavers, connecting cylinders, motors, and control valves, and withstanding pressure fluctuations and mechanical vibrations during operation.
Mining and Underground Operation: Suitable for the hydraulic circuits of continuous coal mining machines, tunneling machines, mobile crushers, and mining dump trucks. The outer rubber layer is MSHA certified, ensuring fire safety and wear resistance requirements for underground operations.
Agricultural and Forestry Machinery: Used in the hydraulic drive systems of large tractors, combine harvesters, silage harvesters, timber harvesters, and logging stackers, adapting to complex working conditions in fields and forests. Material Handling and Warehousing Equipment: Widely used in the hydraulic systems of forklifts, telescopic boom trucks, lifting platforms, and stacker cranes, meeting the needs of frequent start-stop operations and load changes.
Industrial Manufacturing and Machine Tool Equipment: Suitable for the hydraulic circuits of injection molding machines, metal forming presses, CNC machine tools, and automated production lines, providing precise and stable power transmission.
Oil and Gas Equipment: Used in the hydraulic control lines of oilfield service equipment, drilling systems, and wellhead devices, resistant to the chemical corrosion of oil and gas environments.
Transportation Vehicles: Widely used in the hydraulic lifting systems of dump trucks, mixer trucks, garbage trucks, and road clearing vehicles, adapting to the vibrations and impacts during vehicle movement.
Municipal and Public Utility Equipment: Used in the hydraulic systems of aerial work platforms, garden machinery, and road maintenance equipment, meeting the space constraints and safety requirements of urban operations.
Marine and Port Machinery: Suitable for the hydraulic systems of marine cranes, port loading and unloading equipment, and deck machinery; some specifications are certified by classification societies such as DNV and ABS.
Railway and Rail Transit: Used in the hydraulic systems of railway maintenance vehicles, track inspection equipment, and turnout switching devices, adapting to the outdoor working environment along railway lines.
Choose SAE 100R16 steel wire braided hydraulic hoses for reliable protection of your hydraulic systems. Their core advantages include:
Dual-specification compatibility, simplified inventory: This product meets the performance standards of both SAE 100R16 and SAE 100R2. One hose can replace multiple traditional models, significantly reducing inventory types and capital tied up.
Excellent resistance to pulse fatigue: Rigorous pulse testing has verified that it can withstand over 200,000 pressure shock cycles, with some high-end products even reaching 600,000 cycles, significantly extending the hose's service life under dynamic operating conditions.
Compact design for easy installation: The compact design features a small bending radius and light weight, allowing for more flexible placement in confined spaces, reducing installation difficulty and operator workload.
Abrasion-resistant and weather-resistant outer layer: Coated with highly abrasion-resistant synthetic rubber, MSHA certified. Flame retardant certified, capable of withstanding severe friction and scratches on construction sites; also possesses excellent ozone, UV, and aging resistance, suitable for all-weather outdoor operation.
Wide temperature range stability: Maintains good flexibility at -40℃ and does not soften or deform at +100℃, meeting the operational needs of different climates and seasons; some products offer further enhanced temperature resistance.
Excellent anti-kink performance: The high-strength steel wire braided structure of the reinforcing layer gives the hose excellent anti-kink properties, preventing it from easily bending or stretching, ensuring smooth and uninterrupted hydraulic oil delivery.
Wide media compatibility: The inner rubber layer is suitable for various media such as petroleum-based hydraulic oil, water-glycol flame-retardant hydraulic fluid, mineral oil, and biodegradable hydraulic oil, meeting the fluid delivery needs under different working conditions.
Metric Size | Inch Size | SAE Dash size | I.D | W.D. | O.D. | Max W.P. | Min B.P. | Min B.R | W.T | ||
Standard (mm) | Standard (mm) | Standard (mm) | |||||||||
mm | inches | Dash | Min | Max | Max | Max | Mpa | psi | Mpa | mm | Kg/m |
6.3 | 1/4 | 04 | 6.2 | 7.0 | 12.3 | 14.5 | 35.0 | 5075 | 140.0 | 50.0 | 0.31 |
8 | 5/16 | 05 | 7.7 | 8.5 | 13.3 | 15.7 | 29.7 | 4307 | 119.0 | 55.0 | 0.35 |
10 | 3/8 | 06 | 9.3 | 10.1 | 15.9 | 18.8 | 28.0 | 4060 | 112.0 | 65.0 | 0.47 |
12.5 | 1/2 | 08 | 12.3 | 13.5 | 19.0 | 22.0 | 24.5 | 3553 | 98.0 | 90.0 | 0.54 |
16 | 5/8 | 10 | 15.5 | 16.7 | 22.6 | 25.4 | 19.2 | 2784 | 77.0 | 100.0 | 0.7 |
19 | 3/4 | 12 | 18.6 | 19.8 | 26.3 | 29.0 | 15.7 | 2277 | 63.0 | 120.0 | 0.86 |
25 | 1 | 16 | 25.0 | 26.4 | 34.0 | 36.6 | 14.0 | 2030 | 56.0 | 150.0 | 1.2 |
31.5 | 1-1/4 | 20 | 31.4 | 33.0 | 41.9 | 44.3 | 11.3 | 1639 | 45.0 | 210.0 | 1.6 |
Q1: What types of hydraulic fluid is the SAE 100R16 hose compatible with?
This hose is designed for use with petroleum-based hydraulic oils, synthetic lubricants, water-glycol fluids, and oil-in-water emulsions, making it suitable for most industrial and mobile hydraulic systems.
Q2: What is its effective operating temperature range?
The hose is engineered to perform reliably within a temperature range of -40°C (-40°F) to +100°C (+212°F), accommodating a wide spectrum of operating climates and conditions.
Q3: Is this hose designed for suction line applications?
No. The SAE 100R16 hose is specifically designed for high-pressure delivery or pressure lines within hydraulic systems. It is not recommended for suction (vacuum) applications.
Q4: What are its typical size and pressure capabilities?
It is available in a standard range of SAE (inch) inner diameters. As a high-pressure, multiple wire braid hose, it offers correspondingly high working pressure ratings, which vary based on diameter. Detailed specifications are available upon inquiry.
Q5: What end connection options are offered?
To ensure integrity under high pressure, the hose is typically supplied with permanently crimped end fittings. A wide variety of fitting standards, including JIC, NPT, and SAE flange, are available to suit your system's port requirements.
Q6: Which industry standard does this product meet?
This hose is manufactured to meet the performance specifications of the SAE J517 standard, specifically conforming to the Type 100R16 classification for high-pressure hydraulic hose.
Q7: How is this hydraulic hose typically supplied?
It is commonly supplied in long, continuous lengths on reels for fabrication into custom assemblies, or can be provided as ready-to-install, pre-made hose assemblies.
Q8: Is it suitable for demanding outdoor environments?
Yes. Its rugged, synthetic rubber cover provides excellent resistance to abrasion, weathering, ozone, and hydraulic fluid exposure, making it durable for severe indoor and outdoor service.
Q9: Is it compatible with high-pressure hydraulic pumps?
Absolutely. It is ideally suited for use with high-pressure piston pumps, gear pumps, and other power units found in heavy machinery, reliably containing the system's operating pressure.
Q10: How is the hose reinforced for high-pressure service?

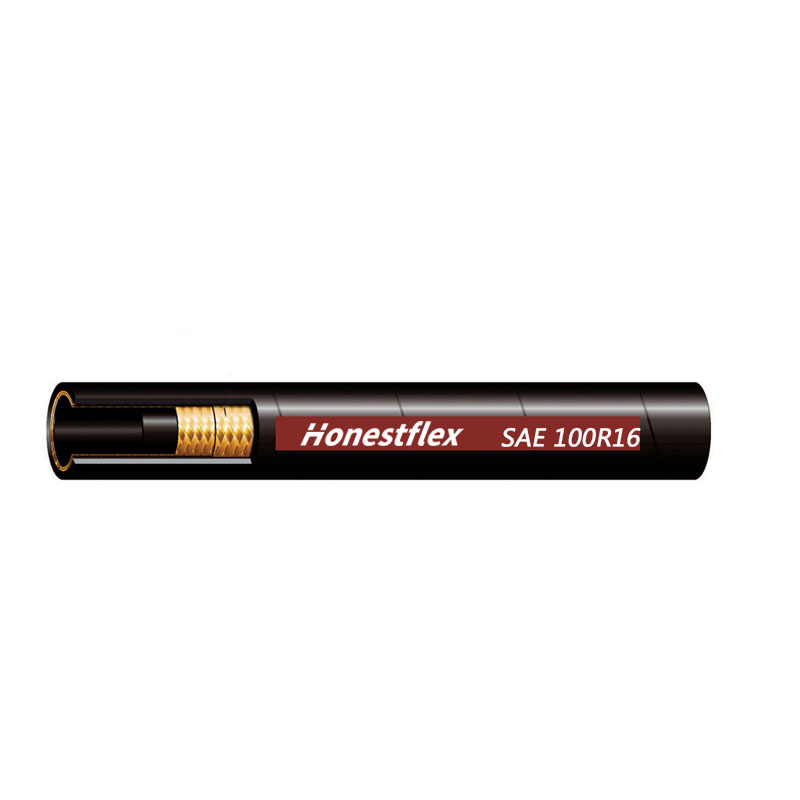

The hose is reinforced with multiple spirals of high-tensile steel wire braid. This construction provides exceptional burst strength, superior impulse fatigue resistance, and minimal elongation under pressure.
The SAE 100R16 hydraulic hose is a high-performance hydraulic hose designed and manufactured according to international standards. It is widely used in hydraulic transmission applications where high working pressure and system stability are required. This product features a three-layer precision composite structure: the inner layer is made of oil-resistant synthetic rubber, offering excellent media compatibility and ensuring smooth delivery of petroleum-based, water-based, and biodegradable hydraulic oils without swelling or aging; the reinforcing layer consists of one or two layers of high-tensile-strength steel wire braiding, depending on the pressure rating. This braiding structure provides the hose with excellent pressure resistance and kinking resistance while maintaining good flexibility; the outer layer is covered with black, wear-resistant, and weather-resistant synthetic rubber, certified by MSHA (Mine Safety and Health Administration), and possesses flame-retardant, ozone-resistant, UV-resistant, and anti-aging properties. This hose is suitable for temperatures ranging from -40℃ to +100℃, with a safety factor of 4:1, making it an ideal choice for hydraulic systems in engineering machinery, agricultural equipment, and industrial equipment.
SAE 100R16 hydraulic hoses, with their excellent pressure-bearing capacity and flexible installation characteristics, are widely used in the hydraulic systems of various mobile and stationary equipment. Specific applications include:
Construction Machinery and Heavy Equipment: Widely used in the hydraulic systems of excavators, loaders, bulldozers, road rollers, and pavers, connecting cylinders, motors, and control valves, and withstanding pressure fluctuations and mechanical vibrations during operation.
Mining and Underground Operation: Suitable for the hydraulic circuits of continuous coal mining machines, tunneling machines, mobile crushers, and mining dump trucks. The outer rubber layer is MSHA certified, ensuring fire safety and wear resistance requirements for underground operations.
Agricultural and Forestry Machinery: Used in the hydraulic drive systems of large tractors, combine harvesters, silage harvesters, timber harvesters, and logging stackers, adapting to complex working conditions in fields and forests. Material Handling and Warehousing Equipment: Widely used in the hydraulic systems of forklifts, telescopic boom trucks, lifting platforms, and stacker cranes, meeting the needs of frequent start-stop operations and load changes.
Industrial Manufacturing and Machine Tool Equipment: Suitable for the hydraulic circuits of injection molding machines, metal forming presses, CNC machine tools, and automated production lines, providing precise and stable power transmission.
Oil and Gas Equipment: Used in the hydraulic control lines of oilfield service equipment, drilling systems, and wellhead devices, resistant to the chemical corrosion of oil and gas environments.
Transportation Vehicles: Widely used in the hydraulic lifting systems of dump trucks, mixer trucks, garbage trucks, and road clearing vehicles, adapting to the vibrations and impacts during vehicle movement.
Municipal and Public Utility Equipment: Used in the hydraulic systems of aerial work platforms, garden machinery, and road maintenance equipment, meeting the space constraints and safety requirements of urban operations.
Marine and Port Machinery: Suitable for the hydraulic systems of marine cranes, port loading and unloading equipment, and deck machinery; some specifications are certified by classification societies such as DNV and ABS.
Railway and Rail Transit: Used in the hydraulic systems of railway maintenance vehicles, track inspection equipment, and turnout switching devices, adapting to the outdoor working environment along railway lines.
Choose SAE 100R16 steel wire braided hydraulic hoses for reliable protection of your hydraulic systems. Their core advantages include:
Dual-specification compatibility, simplified inventory: This product meets the performance standards of both SAE 100R16 and SAE 100R2. One hose can replace multiple traditional models, significantly reducing inventory types and capital tied up.
Excellent resistance to pulse fatigue: Rigorous pulse testing has verified that it can withstand over 200,000 pressure shock cycles, with some high-end products even reaching 600,000 cycles, significantly extending the hose's service life under dynamic operating conditions.
Compact design for easy installation: The compact design features a small bending radius and light weight, allowing for more flexible placement in confined spaces, reducing installation difficulty and operator workload.
Abrasion-resistant and weather-resistant outer layer: Coated with highly abrasion-resistant synthetic rubber, MSHA certified. Flame retardant certified, capable of withstanding severe friction and scratches on construction sites; also possesses excellent ozone, UV, and aging resistance, suitable for all-weather outdoor operation.
Wide temperature range stability: Maintains good flexibility at -40℃ and does not soften or deform at +100℃, meeting the operational needs of different climates and seasons; some products offer further enhanced temperature resistance.
Excellent anti-kink performance: The high-strength steel wire braided structure of the reinforcing layer gives the hose excellent anti-kink properties, preventing it from easily bending or stretching, ensuring smooth and uninterrupted hydraulic oil delivery.
Wide media compatibility: The inner rubber layer is suitable for various media such as petroleum-based hydraulic oil, water-glycol flame-retardant hydraulic fluid, mineral oil, and biodegradable hydraulic oil, meeting the fluid delivery needs under different working conditions.
Metric Size | Inch Size | SAE Dash size | I.D | W.D. | O.D. | Max W.P. | Min B.P. | Min B.R | W.T | ||
Standard (mm) | Standard (mm) | Standard (mm) | |||||||||
mm | inches | Dash | Min | Max | Max | Max | Mpa | psi | Mpa | mm | Kg/m |
6.3 | 1/4 | 04 | 6.2 | 7.0 | 12.3 | 14.5 | 35.0 | 5075 | 140.0 | 50.0 | 0.31 |
8 | 5/16 | 05 | 7.7 | 8.5 | 13.3 | 15.7 | 29.7 | 4307 | 119.0 | 55.0 | 0.35 |
10 | 3/8 | 06 | 9.3 | 10.1 | 15.9 | 18.8 | 28.0 | 4060 | 112.0 | 65.0 | 0.47 |
12.5 | 1/2 | 08 | 12.3 | 13.5 | 19.0 | 22.0 | 24.5 | 3553 | 98.0 | 90.0 | 0.54 |
16 | 5/8 | 10 | 15.5 | 16.7 | 22.6 | 25.4 | 19.2 | 2784 | 77.0 | 100.0 | 0.7 |
19 | 3/4 | 12 | 18.6 | 19.8 | 26.3 | 29.0 | 15.7 | 2277 | 63.0 | 120.0 | 0.86 |
25 | 1 | 16 | 25.0 | 26.4 | 34.0 | 36.6 | 14.0 | 2030 | 56.0 | 150.0 | 1.2 |
31.5 | 1-1/4 | 20 | 31.4 | 33.0 | 41.9 | 44.3 | 11.3 | 1639 | 45.0 | 210.0 | 1.6 |
Q1: What types of hydraulic fluid is the SAE 100R16 hose compatible with?
This hose is designed for use with petroleum-based hydraulic oils, synthetic lubricants, water-glycol fluids, and oil-in-water emulsions, making it suitable for most industrial and mobile hydraulic systems.
Q2: What is its effective operating temperature range?
The hose is engineered to perform reliably within a temperature range of -40°C (-40°F) to +100°C (+212°F), accommodating a wide spectrum of operating climates and conditions.
Q3: Is this hose designed for suction line applications?
No. The SAE 100R16 hose is specifically designed for high-pressure delivery or pressure lines within hydraulic systems. It is not recommended for suction (vacuum) applications.
Q4: What are its typical size and pressure capabilities?
It is available in a standard range of SAE (inch) inner diameters. As a high-pressure, multiple wire braid hose, it offers correspondingly high working pressure ratings, which vary based on diameter. Detailed specifications are available upon inquiry.
Q5: What end connection options are offered?
To ensure integrity under high pressure, the hose is typically supplied with permanently crimped end fittings. A wide variety of fitting standards, including JIC, NPT, and SAE flange, are available to suit your system's port requirements.
Q6: Which industry standard does this product meet?
This hose is manufactured to meet the performance specifications of the SAE J517 standard, specifically conforming to the Type 100R16 classification for high-pressure hydraulic hose.
Q7: How is this hydraulic hose typically supplied?
It is commonly supplied in long, continuous lengths on reels for fabrication into custom assemblies, or can be provided as ready-to-install, pre-made hose assemblies.
Q8: Is it suitable for demanding outdoor environments?
Yes. Its rugged, synthetic rubber cover provides excellent resistance to abrasion, weathering, ozone, and hydraulic fluid exposure, making it durable for severe indoor and outdoor service.
Q9: Is it compatible with high-pressure hydraulic pumps?
Absolutely. It is ideally suited for use with high-pressure piston pumps, gear pumps, and other power units found in heavy machinery, reliably containing the system's operating pressure.
Q10: How is the hose reinforced for high-pressure service?
The hose is reinforced with multiple spirals of high-tensile steel wire braid. This construction provides exceptional burst strength, superior impulse fatigue resistance, and minimal elongation under pressure.
