The Honestflex DIN EN857 2ST Hydraulic Hose is manufactured in full compliance with the DIN EN857 standard, engineered as a compact, high-pressure solution for hydraulic systems with demanding space constraints. This hose is specifically designed for the efficient transmission of hydraulic fluids under high working pressures.

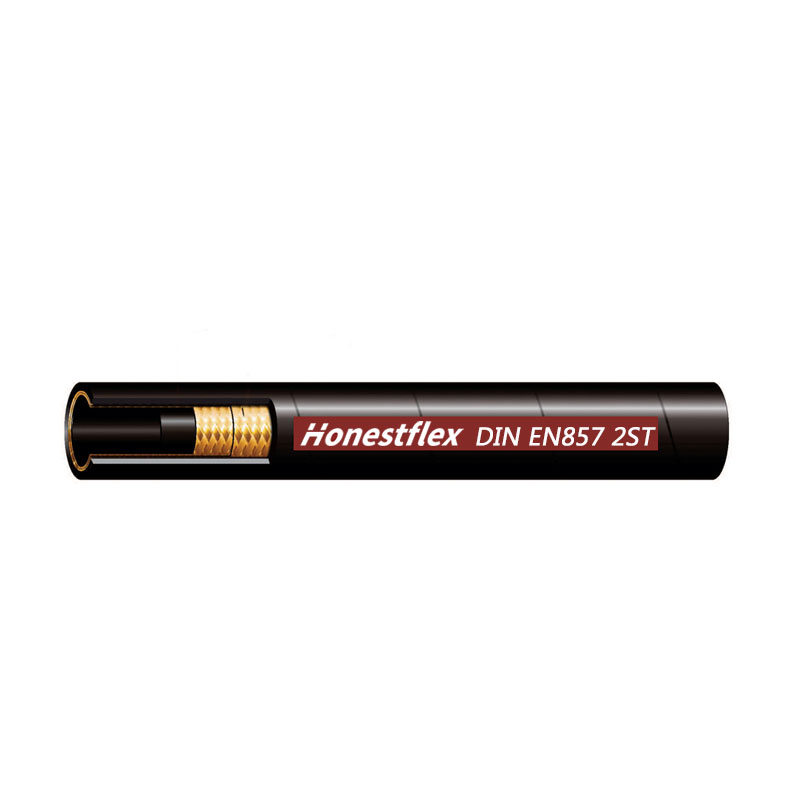

The construction features a synthetic rubber inner tube, reinforced by two high-tensile steel wire braids, and protected by a sleek, abrasion-resistant synthetic rubber cover. This dual steel braid design provides an optimal balance of high-pressure capability, exceptional flexibility, and a minimal bend radius, making it ideal for routing in tight compartments.
It is produced in a comprehensive range of metric sizes to accommodate various flow and pressure requirements within industrial and mobile equipment. The compact construction and reliable materials ensure durable performance in challenging environments where space, pressure, and flexibility are critical factors.
All specifications, including inner diameter, cut length, and compatible crimped end fittings, can be customized to precisely match your system's configuration and performance demands.
Application of DIN EN857 2ST Hydraulic Hose:
The Honestflex DIN EN857 2ST Hydraulic Hose is engineered for high-pressure hydraulic circuits where space and flexibility are critical, and is widely utilized in:
Compact Industrial Machinery and Robotics:Essential for the hydraulic systems of CNC machine tools, robotic arms, and automated assembly lines, where its small bend radius and compact design allow for efficient routing in tightly packaged equipment.
Mobile and Construction Equipment:Ideal for the hydraulic circuits of compact excavators, skid-steer loaders, and aerial work platforms, providing reliable high-pressure fluid transmission within the confined spaces of modern machinery compartments.
Material Handling and Warehouse Equipment:Used in high-pressure lines for forklift mast control systems, automated guided vehicles (AGVs), and compact stacking cranes, enabling powerful lifting functions while navigating limited spatial envelopes.
Agricultural and Utility Vehicles:Applied in the hydraulic systems of tractors, harvesters, and specialized utility vehicles for steering and implement control, where durability and flexibility are required in dusty, high-vibration environments.
Transportation and Specialized Trucks:Suitable for hydraulic systems in refuse trucks, crane trucks, and vehicle recovery equipment, delivering high-pressure performance in applications where routing space around chassis components is restricted.
Machine Tool and Factory Automation:Deployed within the hydraulic power units and actuator controls of presses, cutters, and forming machines, where its robust construction withstands continuous operation and pressure spikes.
Marine and Mobile Equipment Hydraulics:Utilized in deck machinery, steering systems, and auxiliary hydraulics on boats and smaller marine equipment, offering reliable performance in confined engine rooms and harsh marine conditions.
Detailed Product Specifications:
Size | Inside Ø mm | Braid Ø mm | Outside Ø mm | Working Pressure | Burst Pressure | Bend Radius | Length | Weight | |||||||
Inch | mm | Min | Max | Min | Max | Max | Bar | Psi | Bar | Psi | mm | m | Kg/m | ||
1/4 | 6.4 | 6.2 | 7.0 | 12.1 | 12.7 | 17.5 | 400 | 5800 | 1600 | 22840 | 100 | 50/100 | 0.42 | ||
5/16 | 7.9 | 7.7 | 8.5 | 13.7 | 14.3 | 19.1 | 360 | 5250 | 1400 | 20000 | 114 | 50/100 | 0.51 | ||
3/8 | 9.5 | 9.3 | 10.1 | 16.1 | 16.7 | 21.4 | 331 | 4800 | 1320 | 18840 | 127 | 50/100 | 0.60 | ||
1/2 | 12.7 | 12.3 | 13.5 | 19.0 | 19.8 | 24.6 | 276 | 4000 | 1100 | 15720 | 178 | 50/100 | 0.74 | ||
5/8 | 15.9 | 15.5 | 16.7 | 22.2 | 23.0 | 27.8 | 250 | 3630 | 1000 | 14280 | 200 | 50/100 | 0.86 | ||
3/4 | 19.0 | 18.6 | 19.8 | 26.2 | 27.0 | 31.8 | 215 | 3120 | 850 | 12280 | 240 | 50/100 | 1.04 | ||
1 | 25.4 | 25.0 | 26.4 | 34.1 | 34.9 | 39.7 | 165 | 2400 | 650 | 9420 | 300 | 50 | 1.42 | ||
1 1/4 | 31.8 | 31.4 | 33.0 | 43.3 | 44.5 | 50.8 | 125 | 1820 | 500 | 7140 | 419 | 20/40 | 2.23 | ||
1 1/2 | 38.1 | 37.7 | 39.3 | 49.6 | 50.8 | 57.2 | 90 | 1310 | 360 | 5140 | 500 | 20/40 | 2.74 | ||
2 | 50.8 | 50.4 | 52.0 | 62.3 | 63.5 | 69.8 | 80 | 1160 | 320 | 4560 | 630 | 20/40 | 3.50 | ||
DIN EN857 2ST Hydraulic Hose - Features & Advantages:
Compact Dual Steel Braid Construction:The hose features a seamless synthetic rubber inner tube, reinforced by two tightly interwoven layers of high-tensile steel wire braid and protected by a thin yet tough synthetic rubber cover. This design provides exceptional strength within a minimal outer diameter, ensuring high-pressure capability and space-saving installation.
Engineered for Space-Constrained High-Pressure Circuits:Specifically manufactured to meet the stringent DIN EN857 standard for compact hydraulic hoses, this 2ST type is optimized for high-pressure fluid power transmission in applications where tight routing, a small bend radius, and reduced weight are critical requirements.
Superior High-Pressure Performance with Enhanced Flexibility:The dual steel braid reinforcement delivers outstanding resistance to high working pressures and pressure surges, while maintaining greater flexibility compared to many equal pressure level hoses. This balance ensures reliable operation and ease of installation in complex or confined machinery layouts.
Durable in Demanding Operational Environments:Built to perform under challenging conditions, the hose’s robust cover offers excellent resistance to abrasion, hydraulic fluid, and weathering. It maintains reliable performance across a wide operating temperature range, ensuring durability in diverse industrial and mobile applications.
Q1: What fluids can the DIN EN857 2ST hose safely convey?
This hose is engineered for use with petroleum-based and synthetic hydraulic oils, as well as water-glycol and HFA fluid types, within typical hydraulic system operating parameters.
Q2: What is its operational temperature range?
The hose is designed to perform effectively across a temperature range of approximately -40°C (-40°F) to +100°C (+212°F).
Q3: Is this a suction or pressure hose?
The 2ST is a high-pressure hydraulic hose designed primarily for pressure lines in hydraulic systems. It is not recommended for suction line applications.
Q4: What are its key size and pressure characteristics?
It is available in a standard range of metric inner diameters. As a two-wire braid hose, it offers high working pressure ratings while maintaining a compact outer diameter, which is a key feature of this design.
Q5: What end fitting configurations are offered?
The hose is typically supplied with permanent crimped fittings, available in various international thread standards (e.g., metric, BSP, JIC) to ensure a secure, leak-free connection suitable for its high-pressure rating.
Q6: Which standard certifies its performance?
This hose is manufactured in full compliance with the European DIN EN857 standard, specifically meeting all requirements for the compact, high-pressure Type 2ST (two steel wire braid) classification.
Q7: How is the hose length typically provided?
It is most commonly supplied in long, continuous lengths on reels for custom assembly to exact requirements, or as pre-made, factory-tested hose assemblies.
Q8: Is its construction suitable for rugged environments?
Yes. Its synthetic rubber cover provides strong resistance to abrasion, oil, and weathering, making it durable for use in demanding industrial and mobile equipment environments.
Q9: Where is it commonly installed within machinery?
It is ideally suited for high-pressure lines in applications with space constraints, such as within the compact compartments of construction machinery, machine tools, and material handling equipment.
Q10: How is it reinforced to handle high pressure?
The hose is reinforced with two layers of high-tensile steel wire braid. This construction provides excellent strength-to-weight ratio, high-pressure capability, and a small bend radius for flexible routing.
