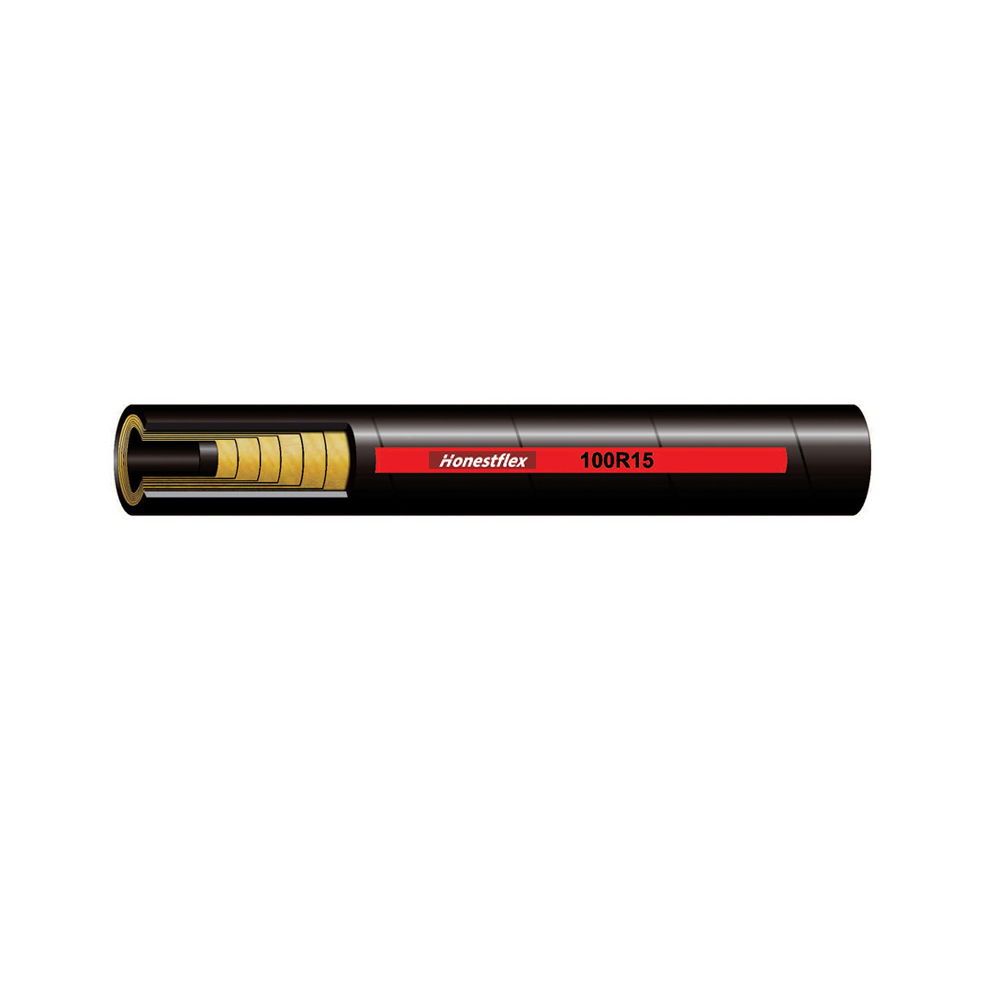

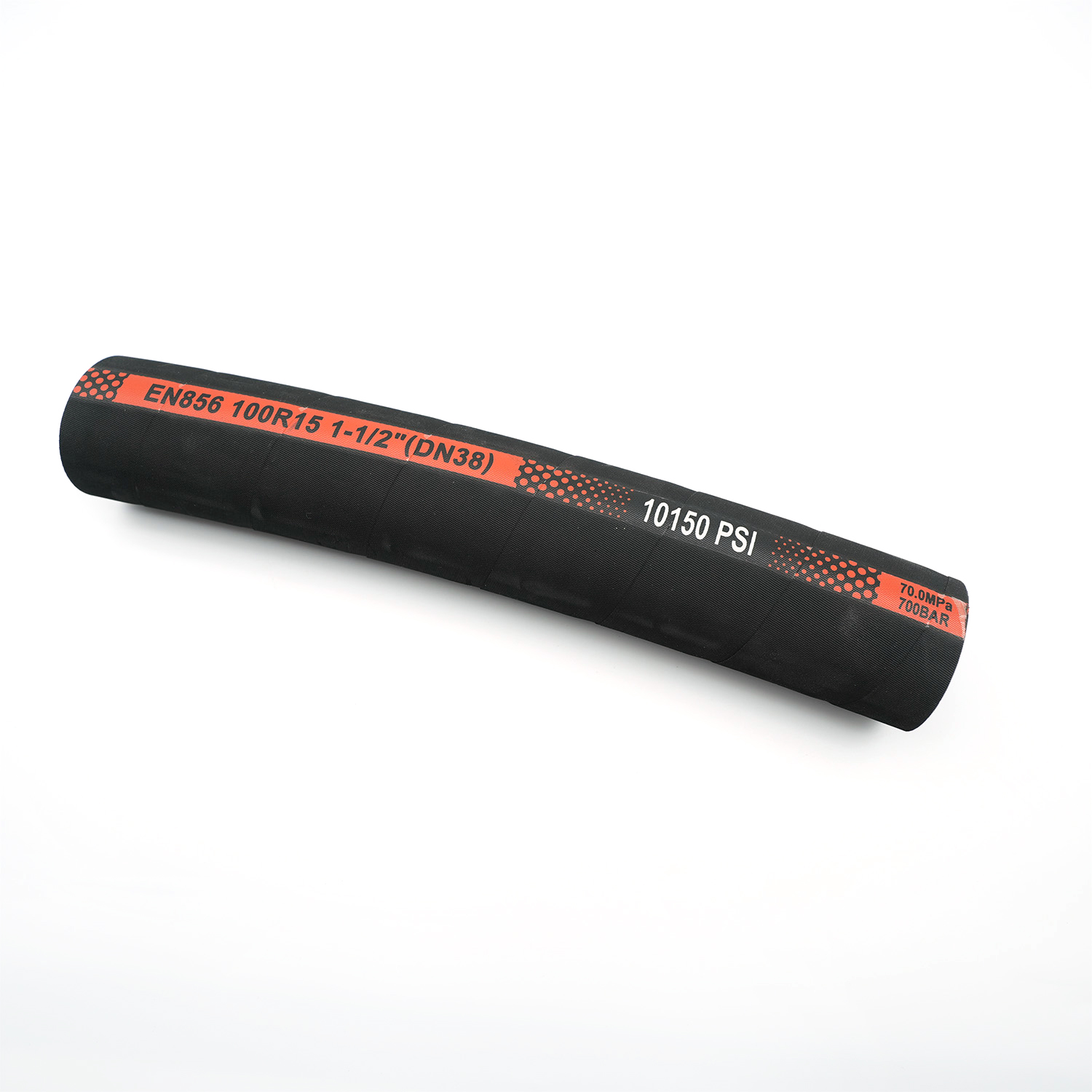

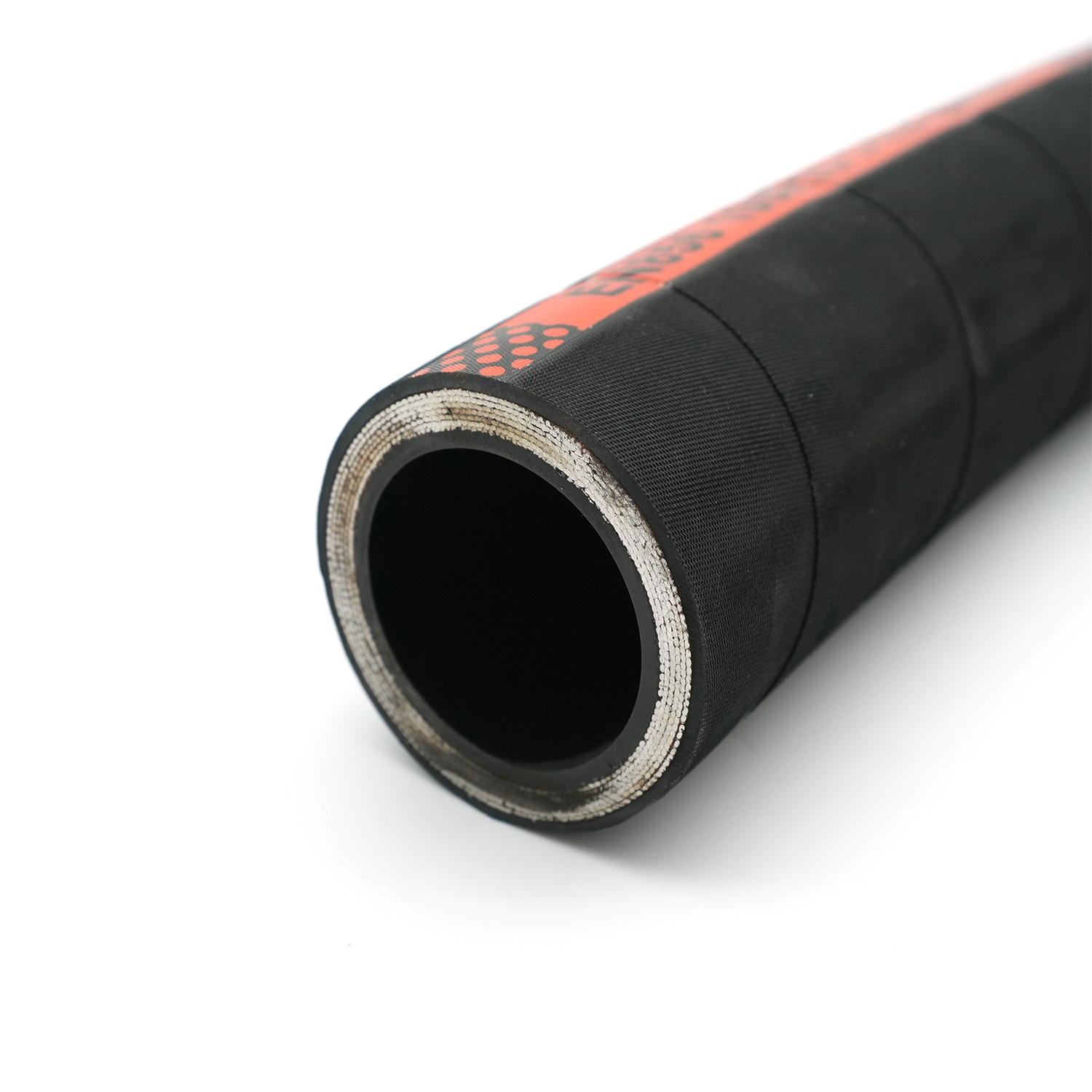

The Honestflex SAE 100R15 steel wire spiral hydraulic hose is an ultra-high pressure hydraulic hose designed and manufactured according to international standards, suitable for hydraulic systems with the most stringent requirements for pressure rating and pulse performance. This hose is precision-manufactured with a three-layer composite structure: the inner layer is made of black oil-resistant synthetic rubber, possessing excellent resistance to hydraulic oil and heat, ensuring smooth and leak-free transport of media under high pressure; the reinforcing layer, depending on the diameter, is configured with four or six layers of ultra-high tensile strength steel wire, spirally wound in alternating directions. This structure evenly distributes system pressure and effectively resists high-pressure pulse impacts; the outer layer is covered with wear-resistant, weather-resistant, and ozone-resistant synthetic rubber, and is MSHA (Mine Safety and Health Administration) certified, ensuring safe use in extreme conditions such as mines and tunnels. This hose has an operating temperature range of -40℃ to +100℃ and a safety factor of 4:1, making it an ideal choice for heavy machinery operating under ultra-high pressure conditions.
SAE 100R15 steel wire spiral hydraulic hose, with its ultra-high load capacity of 6090 psi and excellent anti-pulse performance, is widely used in the hydraulic systems of various heavy machinery and industrial equipment. Specific applications include:
Mining and Downhole Equipment: Used in the hydraulic circuits of continuous coal mining machines, tunneling machines, longwall mining systems, shuttle cars, and open-pit drilling rigs. The outer rubber layer is MSHA certified, ensuring fire safety and wear resistance requirements for underground operations.
Construction Machinery and Heavy Construction: Widely used in the hydraulic systems of large excavators, loaders, bulldozers, graders, and concrete pump trucks, withstanding severe pressure fluctuations and high-frequency impacts during operation to ensure the stability of power transmission.
Oil and Gas Equipment: Suitable for high-pressure hydraulic circuits in blowout preventer control systems, lifting systems, pedestal cranes, and seismic exploration vehicles on onshore and offshore drilling platforms, meeting the stringent safety and reliability requirements of oil and gas extraction.
Agricultural and Forestry Machinery: Hydrostatic drive systems for large combine harvesters, timber harvesters, logging stackers, and tractors, adaptable to continuous operation requirements in complex field conditions.
Industrial Hydraulic Equipment: Suitable for ultra-high pressure hydraulic circuits in injection molding machines, metal forming presses, CNC machine tools, and metallurgical equipment, providing precise and stable power transmission to ensure processing accuracy and production efficiency.
Marine and Marine Engineering: Hydraulic systems for marine cranes, deck machinery, and port handling equipment, resistant to salt spray corrosion and humid climates in marine environments.
Choosing SAE 100R15 steel wire wound hydraulic hoses provides safe and reliable power transmission for your ultra-high pressure hydraulic systems. Its core advantages include:
Ultra-high pressure capacity: Constant working pressure up to 6090 psi, burst pressure up to 4 times the working pressure, easily handling the extreme operating conditions of ultra-high pressure hydraulic systems, far exceeding the performance standards of ordinary hydraulic hoses.
Superior Pulse Fatigue Resistance: Rigorous pulse testing has verified that it can withstand over 2 million pressure shock cycles, far exceeding industry standards, significantly extending the hose's service life under dynamic high-pressure environments.
Abrasion-Resistant and Weather-Resistant Outer Layer: Coated with highly abrasion-resistant synthetic rubber, MSHA certified, it resists severe friction and scratches in mining and construction sites; it also possesses excellent ozone, UV, and aging resistance, making it suitable for all-weather outdoor operations.
Wide Media Compatibility: The inner rubber layer formulation is suitable for various media such as petroleum-based hydraulic oils, water-glycol flame-retardant hydraulic fluids, mineral oils, and emulsions, meeting the fluid transport needs under different working conditions.
Excellent Flexibility for Easy Laying: Despite being an ultra-high-pressure spiral hose, its structural design optimizes the bending radius while ensuring strength, facilitating flexible placement in confined spaces, reducing the number of joints, and lowering the risk of leakage.
The Honestflex SAE 100R15 Hydraulic Hose is engineered for medium-pressure hydraulic systems and is widely utilized in:
Industrial Machinery and Manufacturing Equipment:Applied in hydraulic circuits of machine tools, presses, and automated production lines for precise control and power transmission in manufacturing processes.
Agricultural and Farming Machinery:Used in tractors, harvesters, and irrigation systems to operate hydraulic functions such as lifting mechanisms, steering controls, and implement adjustments.
Material Handling and Warehouse Equipment:Essential for hydraulic systems in forklifts, pallet jacks, and conveyor systems, enabling smooth lifting, lowering, and material movement operations.
Construction and Light Earthmoving Equipment:Deployed in compact excavators, skid-steer loaders, and mobile cranes for hydraulic functions requiring reliable medium-pressure performance in confined spaces.
Forestry and Land Management Equipment:Utilized in wood chippers, log splitters, and forestry tractors to power cutting, splitting, and loading mechanisms in outdoor working environments.
Municipal and Public Service Vehicles:Applied in refuse trucks, street sweepers, and utility vehicles for hydraulic compaction, lifting, and cleaning functions in urban maintenance operations.
Automotive Service and Repair Equipment:Used in hydraulic lifts, wheel balancers, and alignment systems in automotive workshops and service centers for vehicle maintenance and repair tasks.
Metric Size | Inch Size | SAE Dash size | I.D. | Braid | O.D. | Max W.P. | Min B.P. | Min B.R. | Weight | ||
Standard(mm) | Standard(mm) | Standard(mm) | |||||||||
mm | inches | Dash | Min | Max | Max | Max | Mpa | psi | Mpa | mm | Kg/m |
10 | 3/8 | 06 | 9.3 | 10.1 | 20.3 | 23.3 | 42.0 | 6090 | 168.0 | 150.0 | 0.91 |
12.5 | 1/2 | 08 | 12.3 | 13.5 | 24.0 | 26.8 | 42.0 | 6090 | 168.0 | 200.0 | 1.21 |
19 | 3/4 | 12 | 18.6 | 19.8 | 32.9 | 36.1 | 42.0 | 6090 | 168.0 | 265.0 | 2.25 |
25 | 1 | 16 | 25.0 | 26.4 | 38.9 | 42.9 | 42.0 | 6090 | 168.0 | 330.0 | 3.12 |
31.5 | 1-1/4 | 20 | 31.4 | 33.0 | 48.4 | 51.5 | 42.0 | 6090 | 168.0 | 445.0 | 3.87 |
38 | 1-1/2 | 24 | 37.7 | 39.3 | 56.3 | 59.6 | 42.0 | 6090 | 168.0 | 530.0 | 5.29 |
Q1: What fluids is the SAE 100R15 Hydraulic Hose compatible with?
This hose is designed for use with petroleum-based hydraulic oils, water-glycol fluids, and oil-in-water emulsions commonly found in industrial and mobile hydraulic systems.
Q2: What is its standard operating temperature range?
The hose is engineered to perform reliably within a temperature range of -40°C (-40°F) to +100°C (+212°F).
Q3: Is this hose suitable for suction (return line) applications?
The SAE 100R15 hose is designed as a pressure hose and is primarily intended for medium-pressure delivery lines. It is not typically recommended for suction line use.
Q4: What are its available sizes and pressure ratings?
It is available in a standard range of SAE (inch) inner diameters. As a medium-pressure textile braid hose, it offers corresponding working pressure ratings that vary by size. Specific data and custom options are available upon request.
Q5: Can it be supplied with different end fittings?
Yes, the hose can be supplied as bulk hose or pre-fitted with a wide variety of permanent crimped or reusable end fittings, such as JIC, NPT, or ORB types, to match your hydraulic system ports.
Q6: What industry standard does this hose conform to?
This hose is manufactured in compliance with the SAE J517 standard, specifically meeting all requirements for the Type 100R15 classification for hydraulic hose.
Q7: How is the hose typically supplied in terms of length?
It is commonly supplied in long, continuous lengths on reels or in straight lengths for custom fabrication. Pre-made assemblies in standard lengths are also available.
Q8: Is it resistant to outdoor and harsh environmental conditions?
Yes, its robust synthetic rubber cover provides excellent resistance to abrasion, weathering, ozone, and hydraulic fluid exposure, ensuring durability in demanding indoor and outdoor applications.
Q9: Is it compatible with standard hydraulic power units and pumps?
Absolutely. It is designed for use with common industrial hydraulic pumps, valves, and cylinders operating within its specified pressure and temperature ratings.
Q10: What is the reinforcement structure of this hose?
The hose is reinforced with multiple layers of high-tensile synthetic textile braid. This construction provides the necessary strength for its medium-pressure rating while maintaining good flexibility for installation.
