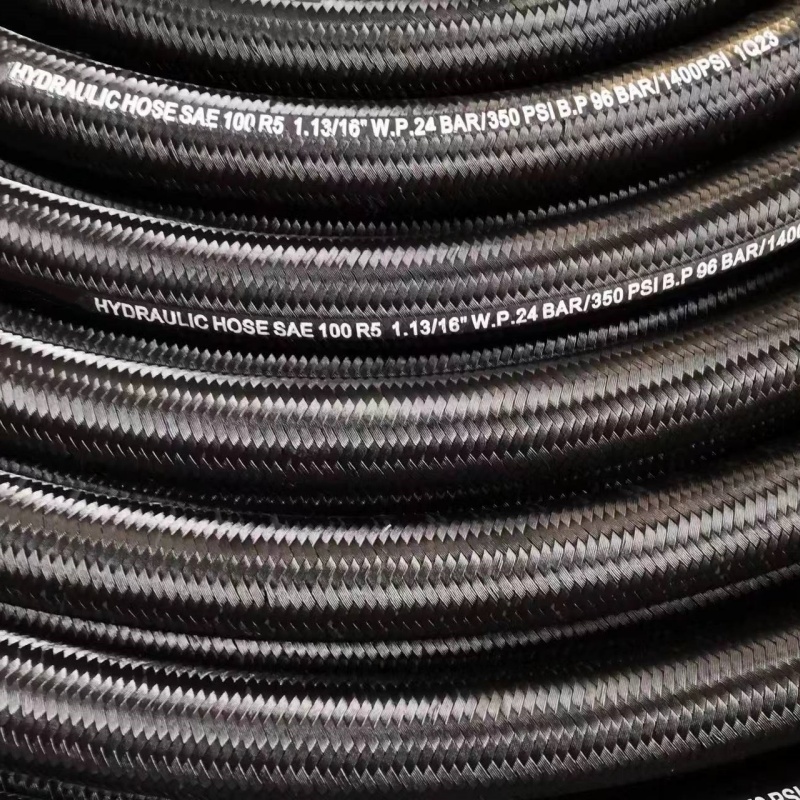

The SAE 100R5 hydraulic hose is a medium-pressure hydraulic hose designed according to the international standard SAE J517. It is widely used in hydraulic systems requiring a balance of oil resistance, flexibility, and high-pressure resistance. This hose features a three-layer precision structure: the inner rubber layer is made of oil-resistant synthetic rubber, ensuring stability under long-term contact with various hydraulic media; the reinforcing layer is a high-tensile-strength steel wire braid, giving the hose excellent pressure resistance; the outer rubber layer uses a synthetic rubber-embedded fiber braided structure, providing additional protection and MSHA certification, suitable for harsh environments such as underground mining. The hose has a wide operating temperature range, capable of stable operation continuously from -40℃ to +100℃, meeting the needs of operations in extreme climatic conditions. Its unique structural design allows it to maintain high strength while possessing good flexibility, facilitating flexible deployment in space-constrained equipment.
SAE 100R5 hydraulic hoses are ideal for numerous mobile and industrial hydraulic equipment due to their broad media compatibility and excellent durability. Specific applications include:
Agricultural Machinery: Suitable for hydraulic lines in agricultural equipment such as tractors, harvesters, and seeders, capable of withstanding oil contamination, sun exposure, and mechanical abrasion in agricultural operations.
Construction Machinery: Widely used in equipment such as excavators, loaders, bulldozers, and concrete pump trucks. Its steel wire reinforcement layer can withstand the high-pressure impact of the hydraulic system, ensuring reliable power transmission.
Industrial and Manufacturing Equipment: Used in industrial hydraulic circuits such as machine tools, injection molding machines, and presses, as well as lubrication systems and cooling lines. Compatible with petroleum-based, water-based hydraulic oils, and various lubricants.
Mining and Underground Operations: Due to its MSHA-certified outer layer, it is particularly suitable for flammable and explosive environments such as coal mines, ensuring operational safety; the wear-resistant outer layer also resists scratches from ore.
Material handling and transportation: Used in forklifts, lifting platforms, truck hydraulic tailgates, etc. The hose's flexibility allows for frequent bending, and its weather resistance makes it suitable for outdoor storage.
Petroleum and chemical industry: Can transport gasoline, diesel, mineral oil, and ethylene glycol, meeting the general fuel and chemical fluid transmission needs.
SAE 100R5 hydraulic hoses offer multiple advantages in performance, safety, and service life, meeting the requirements of various harsh operating conditions:
Excellent oil and chemical resistance: The inner rubber layer is made of special oil-resistant synthetic rubber, exhibiting good compatibility with petroleum-based hydraulic fluids, water-based hydraulic fluids, lubricating oils, diesel, and gasoline, preventing hose aging caused by media corrosion.
Excellent temperature adaptability: Can operate continuously in a wide temperature range of -40℃ to +100℃, maintaining stable physical and mechanical properties in both cold-climate outdoor operations and high-temperature workshop environments.
High flexibility and easy installation: The compact design and small bending radius allow the hose to be easily bent and arranged even in confined spaces, reducing the number of joints and lowering system costs.
Exceptional abrasion and weather resistance: The outer fiber braided layer embedded with synthetic rubber not only enhances abrasion resistance but also resists UV radiation, ozone, and humid environments, significantly extending the hose's service life.
Safety and compliance assurance: The outer rubber layer is MSHA certified, meeting the access standards of high-risk industries such as mining. The hose also features flame-retardant and antistatic properties, providing additional protection for operators and equipment.
Wide industry applicability: From agriculture and construction to manufacturing and mining, SAE 100R5 hoses, with their comprehensive media compatibility and mechanical strength, have become the standard choice for a variety of hydraulic applications, facilitating unified inventory and management for users.
Metric Size | Inch Size | SAE Dash Size | I.D. | O.D. | Max W.P. | Min B.P. | Min B.R. | Weight | |||
Standard(mm) | Standard(mm) | ||||||||||
mm | Inches | Dash | Min | Max | Min | Max | Mpa | Psi | Mpa | mm | Kg/m |
5 | 3/16 | 03 | 4.8 | 5.5 | 12.7 | 13.7 | 21.0 | 3045 | 84.0 | 75 | 0.22 |
6.4 | 1/4 | 04 | 6.4 | 7.2 | 14.3 | 15.3 | 21.0 | 3045 | 84.0 | 85 | 0.26 |
8 | 5/16 | 05 | 7.9 | 8.7 | 16.7 | 17.6 | 15.7 | 2277 | 62.8 | 100 | 0.32 |
11 | 13/32 | 06 | 10.3 | 11.1 | 18.9 | 20.0 | 14.0 | 2030 | 56.0 | 115 | 0.37 |
12.5 | 1/2 | 08 | 12.7 | 13.7 | 22.8 | 24.0 | 12.2 | 1769 | 48.8 | 140 | 0.55 |
16 | 5/8 | 10 | 15.9 | 17.0 | 26.8 | 28.0 | 10.5 | 1523 | 42.0 | 165 | 0.63 |
22 | 7/8 | 14 | 22.2 | 23.3 | 30.6 | 32.2 | 5.6 | 812 | 22.4 | 185 | 0.70 |
29 | 1-1/8 | 18 | 28.6 | 29.8 | 37.3 | 38.9 | 4.3 | 624 | 17.2 | 230 | 0.83 |
35 | 1-3/8 | 22 | 34.9 | 36.1 | 43.7 | 45.2 | 3.5 | 508 | 14.0 | 265 | 0.98 |
46 | 1-13/16 | 29 | 46.0 | 47.2 | 55.2 | 57.6 | 2.4 | 348 | 9.6 | 335 | 1.37 |
60 | 2-3/8 | 38 | 60.3 | 61.9 | 71.8 | 74.2 | 2.4 | 348 | 9.6 | 610 | 1.89 |
76 | 3 | 48 | 76.2 | 77.8 | 89.3 | 91.7 | 1.4 | 203 | 5.6 | 840 | 2.71 |
This hose is designed for the transmission of petroleum-based hydraulic oils and water-glycol (HFA) fluids in medium-pressure hydraulic systems. It is commonly used in industrial, agricultural, and mobile equipment applications.
The hose operates effectively within a temperature range of approximately -40°C (-40°F) to +100°C (212°F), making it suitable for a variety of environmental conditions.
This hose is engineered primarily for medium-pressure discharge lines. Its construction is optimized for positive pressure. A dedicated hose type is recommended for suction (return) lines.
The hose is available in a standard range of inner diameters, typically from 3/16" (4.8 mm) to 1 1/4" (32 mm). Working pressure ratings vary by diameter, suitable for medium-pressure circuits. Custom specifications are available.
Yes, the hose is typically supplied as a complete assembly with permanently crimped end fittings. Common fittings include JIC, NPT, and BSPP threads, which can be customized to system requirements.
This hose is manufactured in accordance with the SAE 100R5 performance standard, which defines the requirements for a medium-pressure, single-wire-braid hydraulic hose.
Hose assemblies are custom-made to specified cut lengths with fittings attached. Bulk hose is also available on reels for on-site fabrication in various standard lengths.
Yes, the hose features an abrasion- and weather-resistant outer cover, making it suitable for both indoor and outdoor applications on mobile and industrial equipment.
Yes, this hose is widely used to connect components like pumps, control valves, and cylinders in standard medium-pressure hydraulic systems across various machinery.

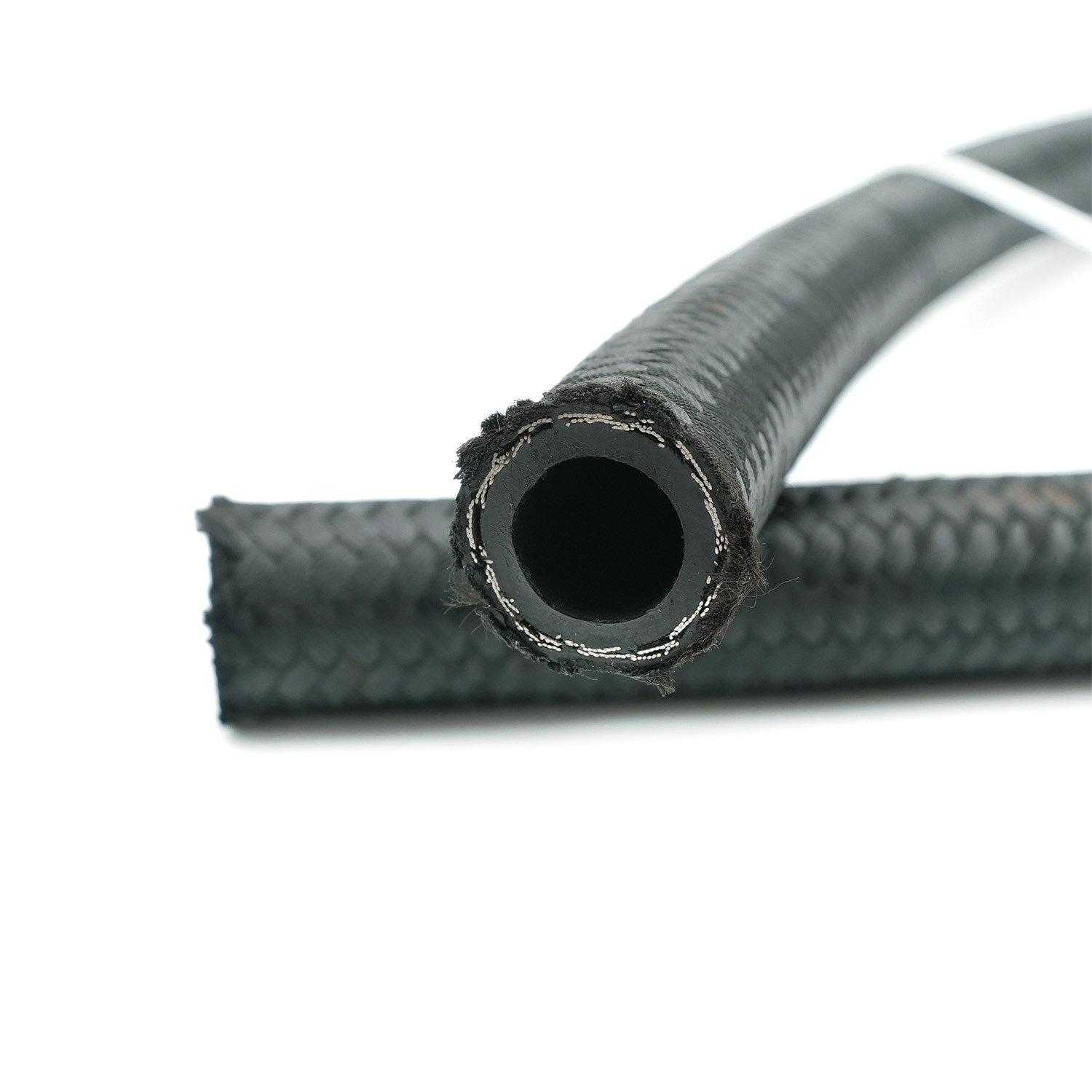

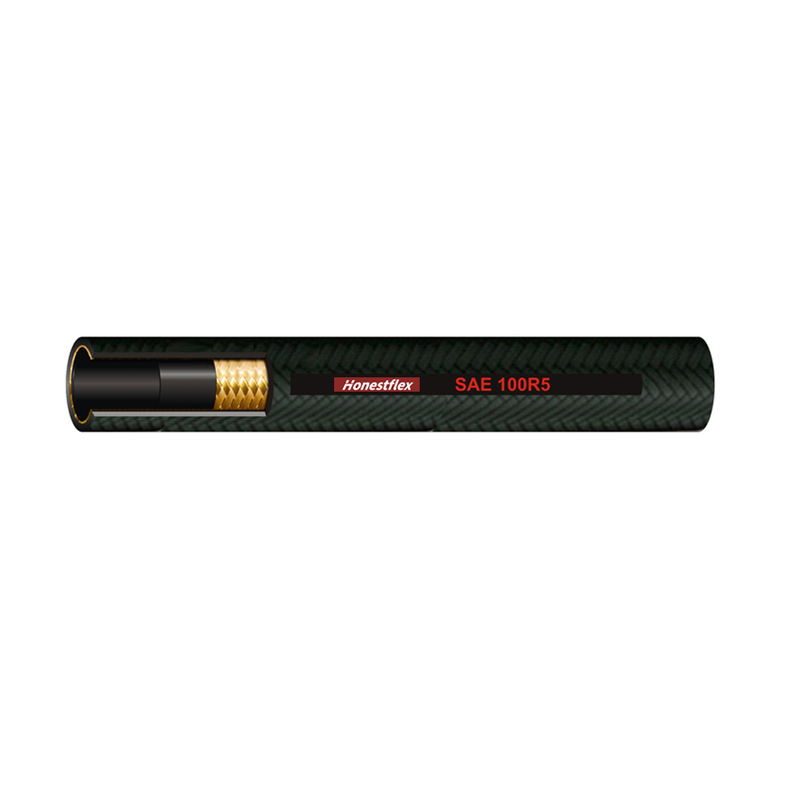

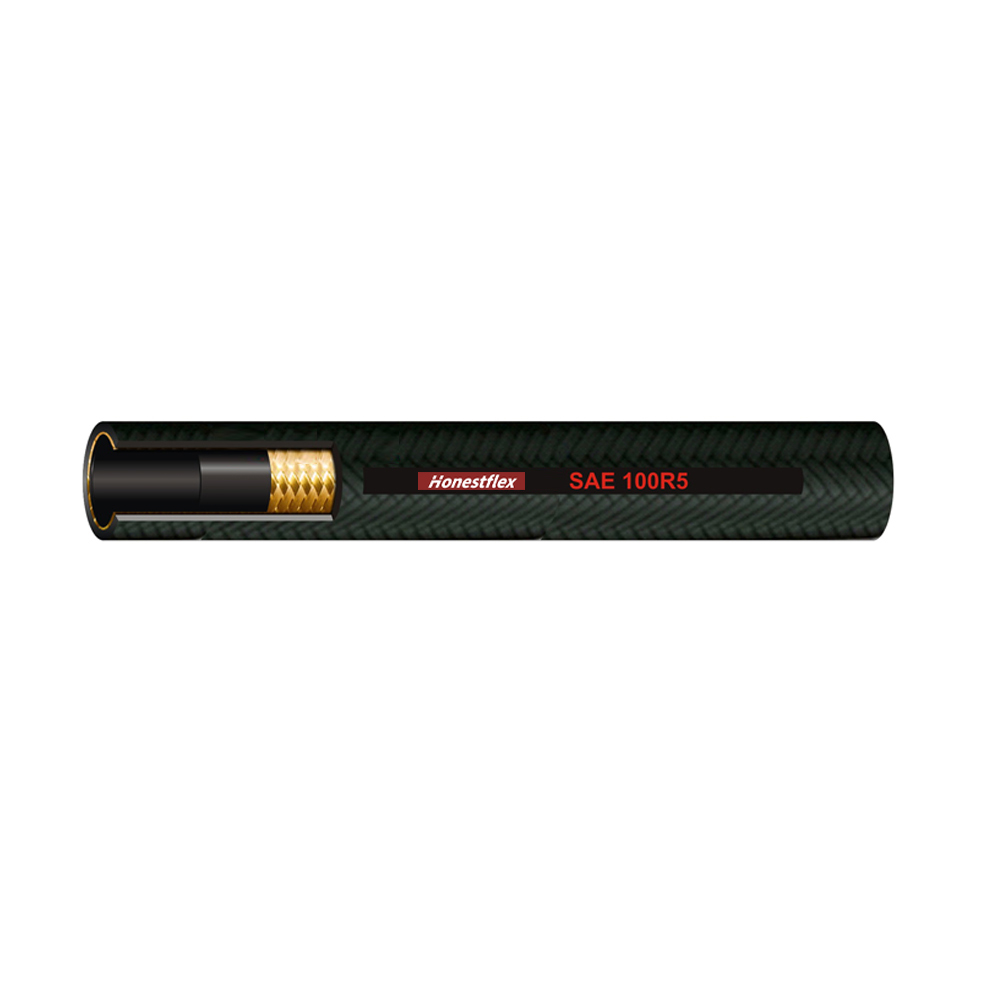

The hose is reinforced with a single layer of high-tensile steel wire braid. This construction provides the necessary strength and flexibility for reliable medium-pressure performance and good impulse resistance.
