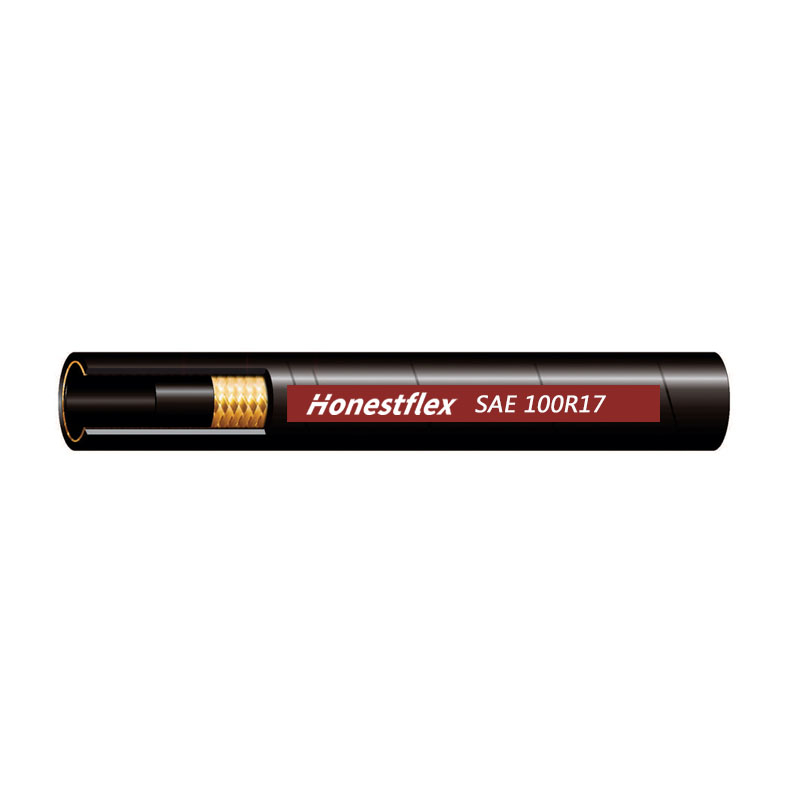

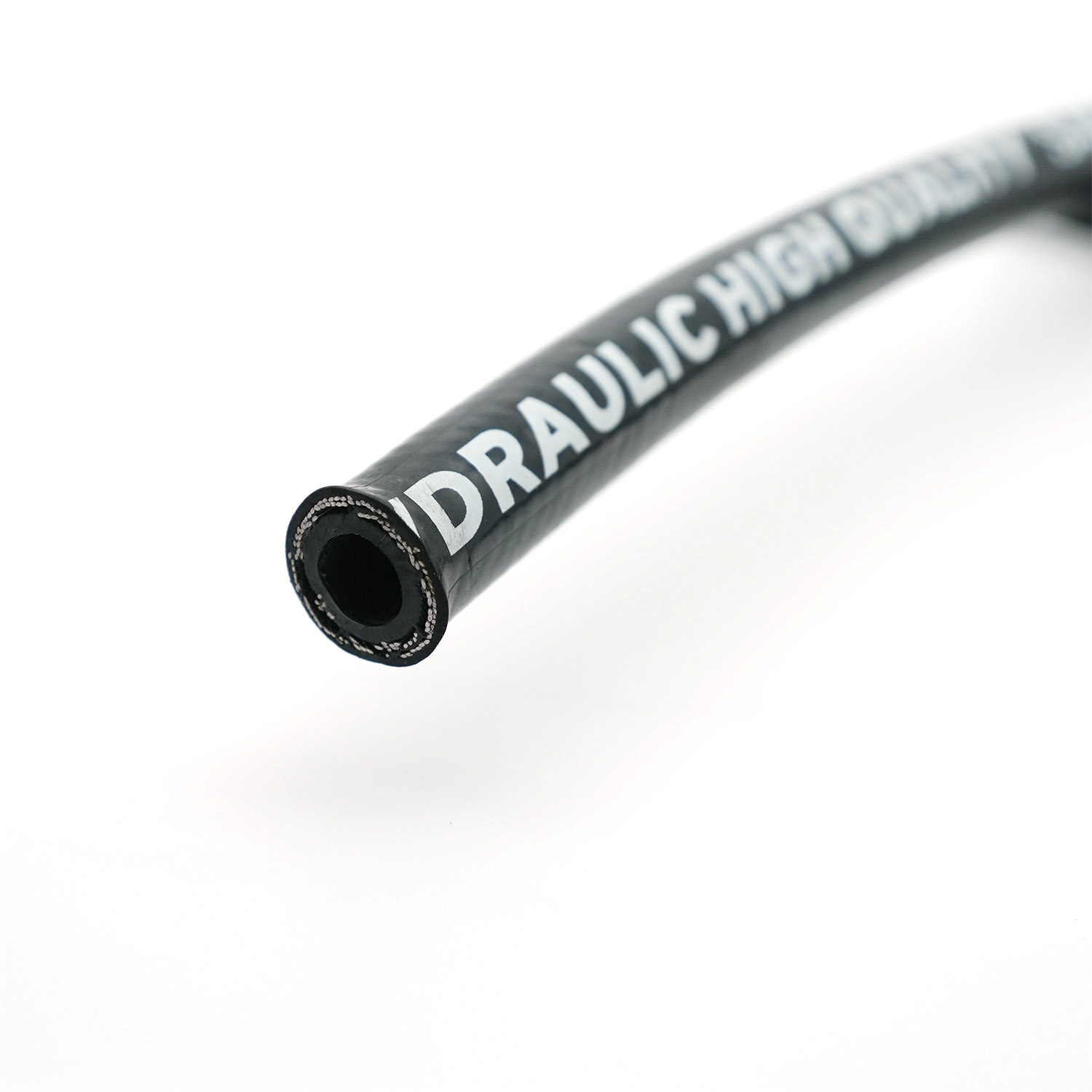

The SAE 100R17 hydraulic hose is a compact steel-braided hydraulic hose designed according to international standards, specifically developed for medium- and high-pressure hydraulic systems with limited installation space. This hose features a three-layer precision structure: the inner rubber layer is made of black oil-resistant synthetic rubber, ensuring long-term compatibility with petroleum-based hydraulic oils, lubricating oils, and media such as water-glycol; the reinforcing layer uses single or double layers of high-tensile-strength steel wire braiding, depending on the diameter, achieving a compact outer diameter design while ensuring pressure resistance; the outer rubber layer is made of wear-resistant and weather-resistant synthetic rubber and is MSHA certified, suitable for harsh environments such as underground mining. The hose operates in a temperature range of -40℃ to +100℃, meeting the stable operation requirements under various climatic conditions.
The SAE 100R17 hydraulic hose, with its compact outer diameter, small bending radius, and uniform pressure rating, is widely used in various medium- and high-pressure hydraulic systems with limited space. Specific application areas include:
Compact Mobile Machinery: Suitable for hydraulic systems of mini excavators, skid steer loaders, backhoe loaders, and compact agricultural tractors. The small bending radius of the hoses facilitates routing within equipment frame gaps and near hinge points.
Industrial Manufacturing Equipment: Used in machine tools, injection molding machines, presses, and automated production lines. The compact outer diameter design facilitates dense routing within cable chains and pipe shafts.
Material Handling Equipment: Used for hydraulic lines in forklifts, lifting platforms, and stackers. The hoses' kink-resistant properties prevent damage during frequent movement.
Forestry and Agricultural Machinery: Suitable for outdoor equipment such as timber harvesters, combine harvesters, and sprayers. The weather-resistant outer layer resists UV radiation, ozone, and humid environments.
Vehicles and Transportation Equipment: Used in hydraulic lifting systems for dump trucks, bus lift doors, and trailer braking systems, meeting the requirements of frequent start-stop operations and pressure fluctuations.
SAE 100R17 hydraulic hoses offer significant advantages in compact design, consistent pressure rating, and manufacturing process, providing reliable performance for space-constrained hydraulic systems:
Compact Design Saves Space: With a smaller outer diameter than comparable SAE 100R1 and SAE 100R2 hoses, the bending radius is significantly reduced, facilitating flexible hose routing in confined spaces such as equipment frame gaps, control cabinet interiors, and robotic arm joints.
Excellent Oil Resistance: The inner rubber layer is made of a special oil-resistant synthetic rubber, exhibiting excellent compatibility with petroleum-based hydraulic oils, lubricating oils, water-glycol, and water-oil emulsions, preventing aging caused by media corrosion.
Superior Fatigue Resistance: Rigorous pulse testing has verified that the hose maintains structural integrity under repeated pressure fluctuations, extending replacement cycles and reducing maintenance costs.
Superior Wear and Weather Resistance: The outer rubber layer is made of highly wear-resistant synthetic rubber, offering excellent resistance to mechanical friction and mineral scratches; the formula also includes ozone and UV resistant components, making it suitable for long-term outdoor use.
Cut Resistance and Aging Resistance: The outer rubber layer has excellent cut resistance, effectively resisting scratches from sharp objects; its aging resistance ensures the hose maintains excellent performance even after long-term use.
Wide Media Compatibility: Suitable for various media such as petroleum-based hydraulic oils, lubricating oils, water, water-glycol, and water-oil emulsions, offering versatility and reducing inventory variety.
Metric Size | Inch Size | SAE Dash size | I.D. | W.D. | O.D. | Max W.P. | Min B.P. | Min B.R | W.T | ||
(mm) | (mm) | (mm) | |||||||||
mm | inches | Dash | Min | Max | Max | Max | Mpa | psi | Mpa | mm | Kg/m |
5 | 3/16 | 03 | 4.6 | 5.4 | 10.1 | 11.6 | 21.0 | 3045 | 84.0 | 45 | 0.18 |
6.3 | 1/4 | 04 | 6.2 | 7.0 | 11.0 | 13.2 | 21.0 | 3045 | 84.0 | 50 | 0.21 |
8 | 5/16 | 05 | 7.7 | 8.5 | 13.0 | 15.0 | 21.0 | 3045 | 84.0 | 55 | 0.26 |
10 | 3/8 | 06 | 9.3 | 10.1 | 15.0 | 17.0 | 21.0 | 3045 | 84.0 | 65 | 0.32 |
12.5 | 1/2 | 08 | 12.3 | 13.5 | 18.8 | 21.1 | 21.0 | 3045 | 84.0 | 90 | 0.42 |
16 | 5/8 | 10 | 15.5 | 16.7 | 23.6 | 25.9 | 21.0 | 3045 | 84.0 | 100 | 0.73 |
19 | 3/4 | 12 | 18.6 | 19.8 | 27.7 | 30.3 | 21.0 | 3045 | 84.0 | 120 | 0.93 |
25 | 1 | 16 | 25.0 | 26.4 | 35.6 | 38.6 | 21.0 | 3045 | 84.0 | 150 | 1.32 |
This hose is designed for the transmission of hydraulic fluids, including petroleum-based oils, synthetic lubricants, and oil-in-water emulsions, commonly used in industrial, mobile, and agricultural hydraulic systems.
The hose is designed to operate effectively within a temperature range of approximately -40°C (-40°F) to +100°C (212°F), making it suitable for use in a wide variety of climate and operating conditions.
This hose is designed primarily for high-pressure discharge lines in hydraulic systems. Its construction is optimized for positive pressure. For suction (return) lines, a hose specifically designed for low pressure or vacuum service is recommended.
The hose is available in a comprehensive range of inner diameters, typically from 1/4" (6.3 mm) to 2" (51 mm). Working pressure ratings vary significantly by diameter and the number of wire braid layers. Custom specifications for high-pressure applications are available upon request.
Yes, the hose is typically supplied with permanently attached, crimped fittings (such as JIC, NPT, or flange ends) to ensure a leak-proof, high-pressure connection. Fitting types and thread standards can be customized per system requirements.
This hose is manufactured in strict accordance with the SAE 100R17 performance standard, which defines the requirements for high-pressure, high-temperature hydraulic hoses with two steel wire braid reinforcements.
Standard hose lengths are typically measured to order (MTO) based on the customer's specified assembly length with fittings. Bulk hose is also available on reels for on-site fabrication.
Yes, the hose features a rugged, abrasion- and weather-resistant outer cover, making it suitable for both indoor and demanding outdoor applications on mobile and stationary equipment.
Yes, this hose is the standard choice for connecting high-pressure hydraulic components such as pumps, valves, cylinders, and motors on a vast majority of industrial and mobile machinery.
The hose features two high-tensile steel wire braid layers as its primary reinforcement. This construction provides the exceptional strength needed to contain high pressure, resist impulse fatigue, and ensure reliable, long-lasting performance.
The SAE 100R17 hydraulic hose is a compact steel-braided hydraulic hose designed according to international standards, specifically developed for medium- and high-pressure hydraulic systems with limited installation space. This hose features a three-layer precision structure: the inner rubber layer is made of black oil-resistant synthetic rubber, ensuring long-term compatibility with petroleum-based hydraulic oils, lubricating oils, and media such as water-glycol; the reinforcing layer uses single or double layers of high-tensile-strength steel wire braiding, depending on the diameter, achieving a compact outer diameter design while ensuring pressure resistance; the outer rubber layer is made of wear-resistant and weather-resistant synthetic rubber and is MSHA certified, suitable for harsh environments such as underground mining. The hose operates in a temperature range of -40℃ to +100℃, meeting the stable operation requirements under various climatic conditions.
The SAE 100R17 hydraulic hose, with its compact outer diameter, small bending radius, and uniform pressure rating, is widely used in various medium- and high-pressure hydraulic systems with limited space. Specific application areas include:
Compact Mobile Machinery: Suitable for hydraulic systems of mini excavators, skid steer loaders, backhoe loaders, and compact agricultural tractors. The small bending radius of the hoses facilitates routing within equipment frame gaps and near hinge points.
Industrial Manufacturing Equipment: Used in machine tools, injection molding machines, presses, and automated production lines. The compact outer diameter design facilitates dense routing within cable chains and pipe shafts.
Material Handling Equipment: Used for hydraulic lines in forklifts, lifting platforms, and stackers. The hoses' kink-resistant properties prevent damage during frequent movement.
Forestry and Agricultural Machinery: Suitable for outdoor equipment such as timber harvesters, combine harvesters, and sprayers. The weather-resistant outer layer resists UV radiation, ozone, and humid environments.
Vehicles and Transportation Equipment: Used in hydraulic lifting systems for dump trucks, bus lift doors, and trailer braking systems, meeting the requirements of frequent start-stop operations and pressure fluctuations.
SAE 100R17 hydraulic hoses offer significant advantages in compact design, consistent pressure rating, and manufacturing process, providing reliable performance for space-constrained hydraulic systems:
Compact Design Saves Space: With a smaller outer diameter than comparable SAE 100R1 and SAE 100R2 hoses, the bending radius is significantly reduced, facilitating flexible hose routing in confined spaces such as equipment frame gaps, control cabinet interiors, and robotic arm joints.
Excellent Oil Resistance: The inner rubber layer is made of a special oil-resistant synthetic rubber, exhibiting excellent compatibility with petroleum-based hydraulic oils, lubricating oils, water-glycol, and water-oil emulsions, preventing aging caused by media corrosion.
Superior Fatigue Resistance: Rigorous pulse testing has verified that the hose maintains structural integrity under repeated pressure fluctuations, extending replacement cycles and reducing maintenance costs.
Superior Wear and Weather Resistance: The outer rubber layer is made of highly wear-resistant synthetic rubber, offering excellent resistance to mechanical friction and mineral scratches; the formula also includes ozone and UV resistant components, making it suitable for long-term outdoor use.
Cut Resistance and Aging Resistance: The outer rubber layer has excellent cut resistance, effectively resisting scratches from sharp objects; its aging resistance ensures the hose maintains excellent performance even after long-term use.
Wide Media Compatibility: Suitable for various media such as petroleum-based hydraulic oils, lubricating oils, water, water-glycol, and water-oil emulsions, offering versatility and reducing inventory variety.
Metric Size | Inch Size | SAE Dash size | I.D. | W.D. | O.D. | Max W.P. | Min B.P. | Min B.R | W.T | ||
(mm) | (mm) | (mm) | |||||||||
mm | inches | Dash | Min | Max | Max | Max | Mpa | psi | Mpa | mm | Kg/m |
5 | 3/16 | 03 | 4.6 | 5.4 | 10.1 | 11.6 | 21.0 | 3045 | 84.0 | 45 | 0.18 |
6.3 | 1/4 | 04 | 6.2 | 7.0 | 11.0 | 13.2 | 21.0 | 3045 | 84.0 | 50 | 0.21 |
8 | 5/16 | 05 | 7.7 | 8.5 | 13.0 | 15.0 | 21.0 | 3045 | 84.0 | 55 | 0.26 |
10 | 3/8 | 06 | 9.3 | 10.1 | 15.0 | 17.0 | 21.0 | 3045 | 84.0 | 65 | 0.32 |
12.5 | 1/2 | 08 | 12.3 | 13.5 | 18.8 | 21.1 | 21.0 | 3045 | 84.0 | 90 | 0.42 |
16 | 5/8 | 10 | 15.5 | 16.7 | 23.6 | 25.9 | 21.0 | 3045 | 84.0 | 100 | 0.73 |
19 | 3/4 | 12 | 18.6 | 19.8 | 27.7 | 30.3 | 21.0 | 3045 | 84.0 | 120 | 0.93 |
25 | 1 | 16 | 25.0 | 26.4 | 35.6 | 38.6 | 21.0 | 3045 | 84.0 | 150 | 1.32 |
This hose is designed for the transmission of hydraulic fluids, including petroleum-based oils, synthetic lubricants, and oil-in-water emulsions, commonly used in industrial, mobile, and agricultural hydraulic systems.
The hose is designed to operate effectively within a temperature range of approximately -40°C (-40°F) to +100°C (212°F), making it suitable for use in a wide variety of climate and operating conditions.
This hose is designed primarily for high-pressure discharge lines in hydraulic systems. Its construction is optimized for positive pressure. For suction (return) lines, a hose specifically designed for low pressure or vacuum service is recommended.
The hose is available in a comprehensive range of inner diameters, typically from 1/4" (6.3 mm) to 2" (51 mm). Working pressure ratings vary significantly by diameter and the number of wire braid layers. Custom specifications for high-pressure applications are available upon request.
Yes, the hose is typically supplied with permanently attached, crimped fittings (such as JIC, NPT, or flange ends) to ensure a leak-proof, high-pressure connection. Fitting types and thread standards can be customized per system requirements.
This hose is manufactured in strict accordance with the SAE 100R17 performance standard, which defines the requirements for high-pressure, high-temperature hydraulic hoses with two steel wire braid reinforcements.
Standard hose lengths are typically measured to order (MTO) based on the customer's specified assembly length with fittings. Bulk hose is also available on reels for on-site fabrication.
Yes, the hose features a rugged, abrasion- and weather-resistant outer cover, making it suitable for both indoor and demanding outdoor applications on mobile and stationary equipment.
Yes, this hose is the standard choice for connecting high-pressure hydraulic components such as pumps, valves, cylinders, and motors on a vast majority of industrial and mobile machinery.
The hose features two high-tensile steel wire braid layers as its primary reinforcement. This construction provides the exceptional strength needed to contain high pressure, resist impulse fatigue, and ensure reliable, long-lasting performance.
