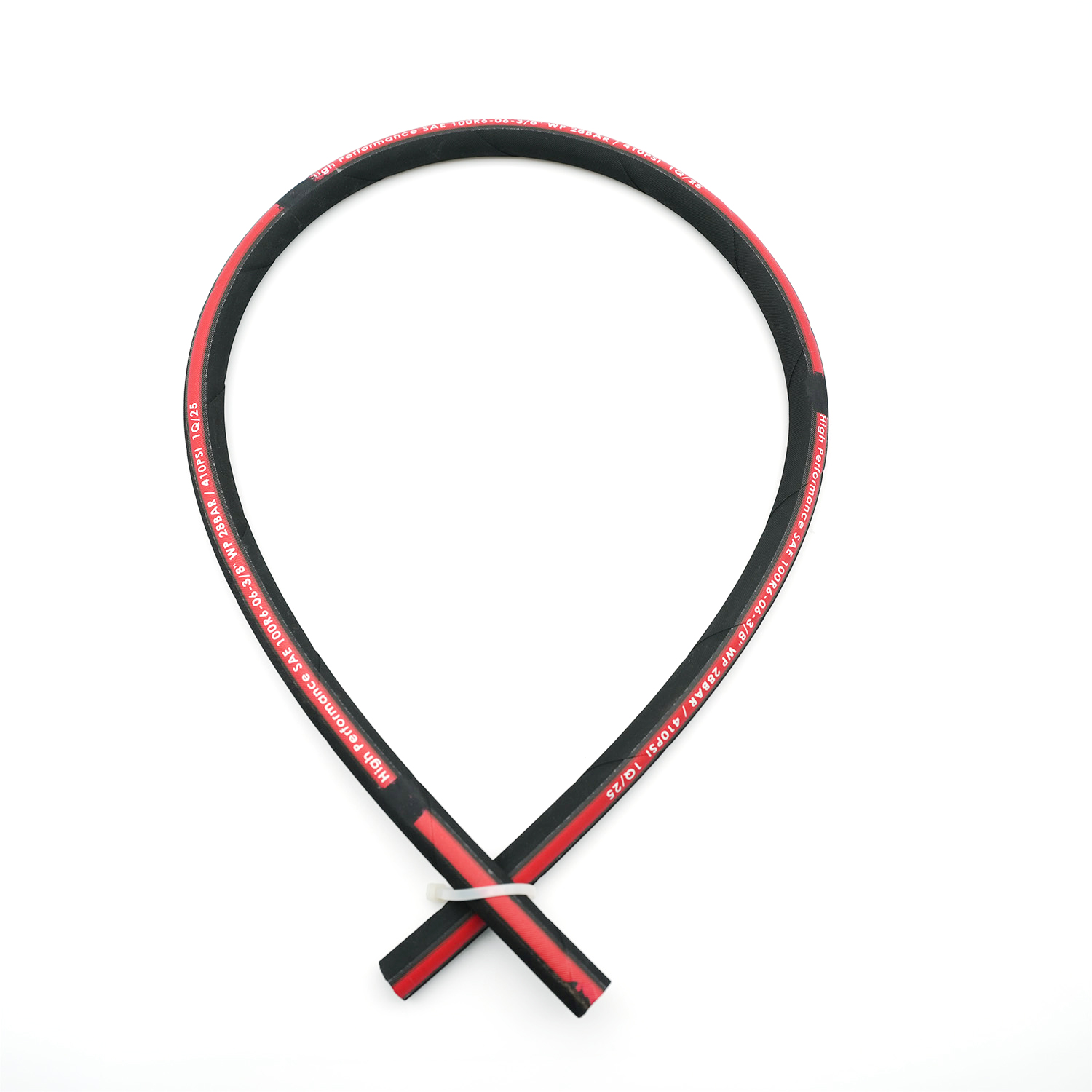

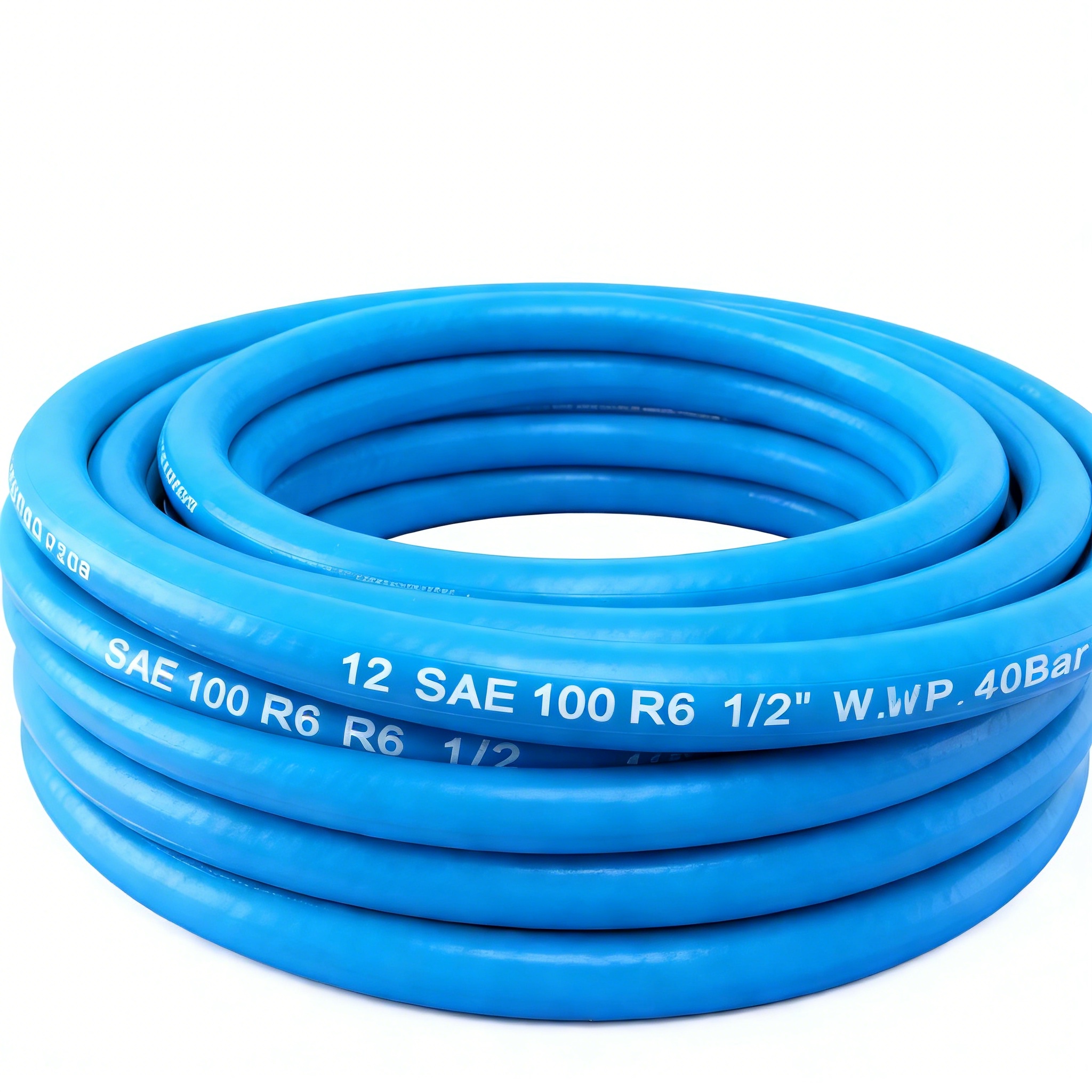

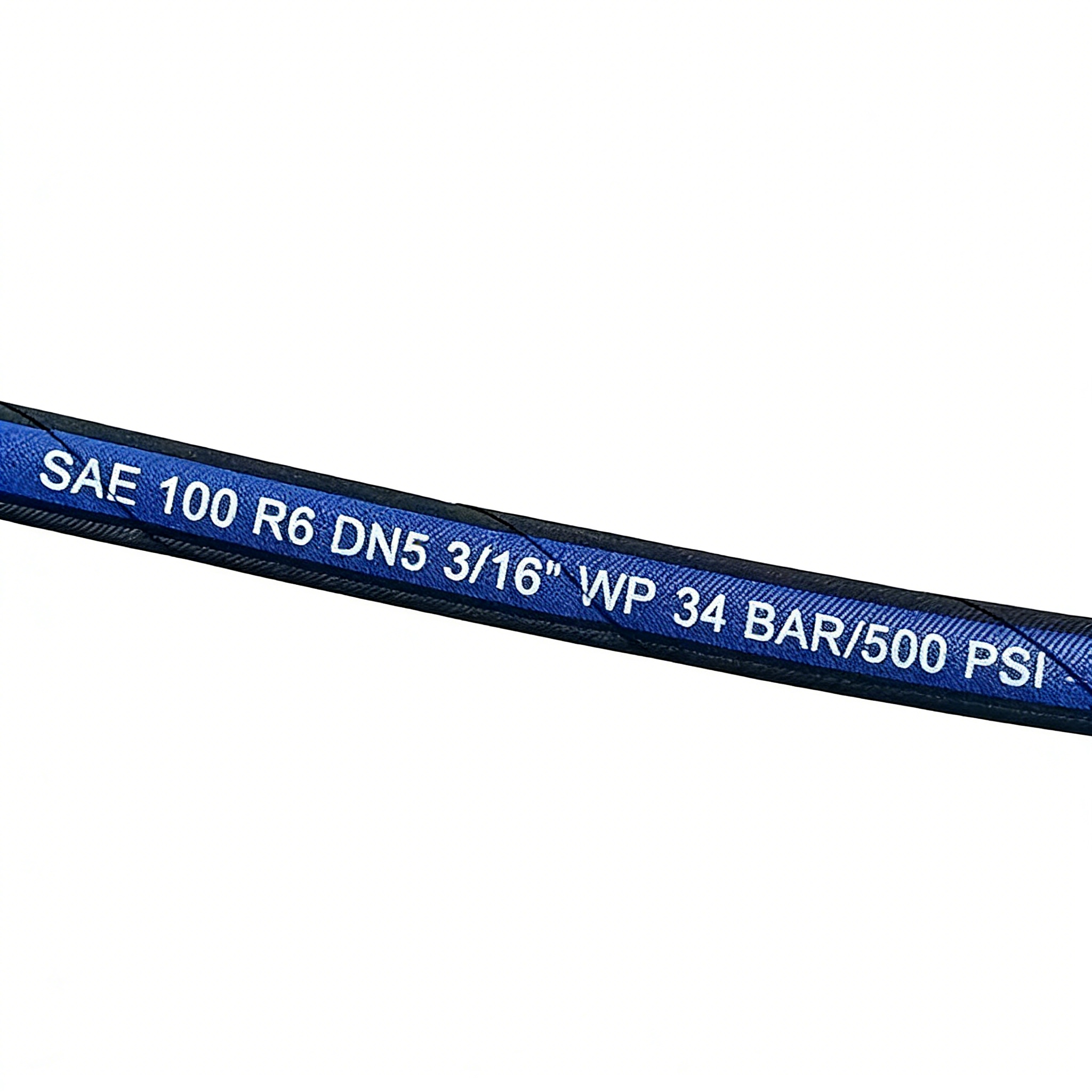

The SAE 100R6 hydraulic hose is a low-pressure hydraulic hose designed and manufactured strictly according to international standards. It is widely applicable to various hydraulic systems requiring both performance and economy. This hose features a three-layer precision structure: the inner layer is made of oil-resistant synthetic rubber, effectively conveying media such as petroleum-based hydraulic oil, water-glycol flame-retardant hydraulic fluid, and emulsions, exhibiting excellent chemical compatibility; the reinforcing layer uses a high-tensile-strength synthetic fiber braided structure, providing stable pressure resistance while giving it excellent flexibility, particularly suitable for applications with limited space for hose installation; the outer layer is made of black oil-resistant, wear-resistant, and weather-resistant synthetic rubber, and is MSHA certified, ensuring safety and reliability even in harsh working conditions such as mining. The hose operates within a temperature range of -40°C to +100°C, adapting to various environments from cold outdoor conditions to high-temperature workshops, making it an ideal choice for low-pressure hydraulic circuits in construction machinery, transportation, and general equipment.
Low-Pressure Hydraulic Circuits:Suitable for low-pressure hydraulic lines in various mechanical equipment, such as power steering return lines, hydraulic control system pilot lines, lubrication lines, and return lines.
Construction Machinery and Equipment: Widely used in the low-pressure hydraulic systems of construction machinery such as excavators, loaders, forklifts, road machinery, and lifts to meet on-site operation needs.
Transportation: Suitable for hydraulic auxiliary systems of trucks, buses, and special vehicles, such as dump truck lifting control and garbage truck hydraulic circuits.
Industrial Manufacturing and Machine Tools:Used for hydraulic control lines and lubricating oil delivery lines in various machine tools, injection molding machines, presses, and other industrial equipment.
Agricultural Machinery Support: Suitable for the low-pressure hydraulic systems of agricultural equipment such as tractors and combine harvesters, enabling stable operation in harsh field environments.
General Industrial Conveying: In addition to hydraulic oil, it can also be used to convey compressed air, water, and mild water-soluble chemicals, meeting the diverse fluid conveying needs of factory workshops.
Standard Compliance and Reliable Quality: Manufactured strictly according to the SAE 100R6 international standard, with some models also meeting MSHA safety certification, ensuring consistent product performance and stable quality.

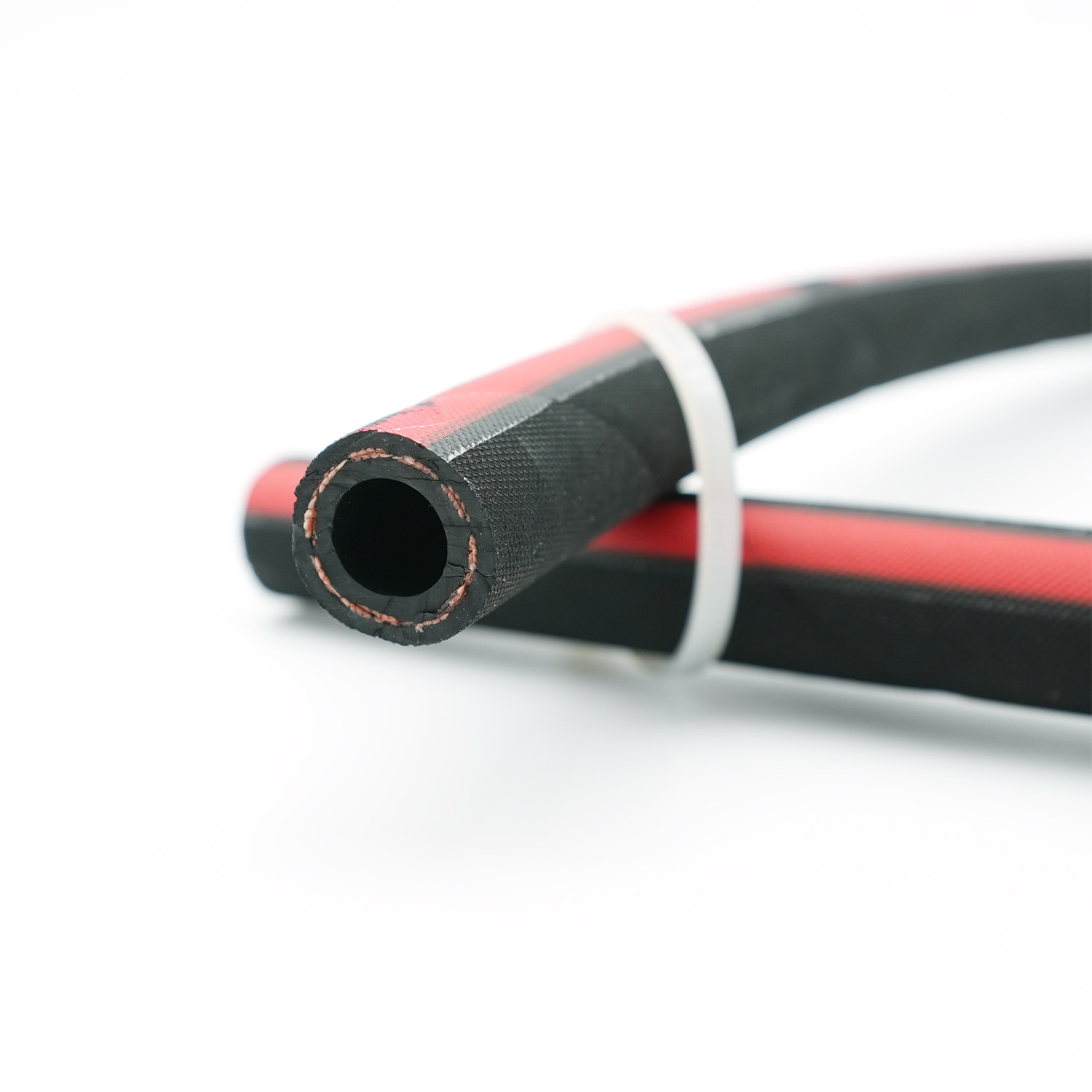

Excellent Flexibility and Easy Laying: Utilizing single-layer fiber braiding reinforcement, the hose is soft and has a small bending radius, allowing for easy laying even in confined spaces, reducing the number of joints and lowering system costs.
Oil and Weather Resistant for Long-Term Durability: The inner oil-resistant rubber layer is highly compatible with petroleum-based hydraulic fluids, while the outer layer is ozone-resistant, UV-resistant, and abrasion-resistant, suitable for long-term outdoor and harsh climate use, effectively extending hose life.
Wide Temperature Adaptability and Stable Performance: Operating temperature range covers -40°C to +100°C, maintaining stable performance in extreme cold or high temperatures, meeting the operational needs of diverse global climates.
Lightweight Design for Easy Handling: The overall lightweight design facilitates handling, installation, and coiling, reducing operator workload and improving on-site work efficiency. Wide Media Compatibility: Suitable for various media including petroleum-based hydraulic oils, water-glycol fire-retardant hydraulic fluids, emulsions, lubricating oils, diesel fuel, and compressed air. One pipe offers multiple uses, reducing inventory costs.
Customized Assembly Service: Pre-assembled assemblies of different lengths and connector types can be provided according to customer requirements. Pressure testing is conducted before shipment to ensure plug-and-play functionality and reliable performance.
Metric Size | Inch Size | SAE Dash Size | I.D. | O.D. | Max W.P. | Min B.P. | Min B.R. | Weight | |||
Standard(mm) | Standard(mm) | ||||||||||
mm | Inches | Dash | Min | Max | Min | Max | Mpa | Psi | Mpa | mm | Kg/m |
5 | 3/16 | 03 | 4.2 | 5.4 | 10.3 | 11.9 | 3.5 | 508 | 14 | 50 | 0.12 |
6.3 | 1/4 | 04 | 5.6 | 7.2 | 11.9 | 13.5 | 2.8 | 406 | 11.2 | 65 | 0.15 |
8 | 5/16 | 05 | 7.2 | 8.8 | 13.5 | 15.1 | 2.8 | 406 | 11.2 | 75 | 0.18 |
10 | 3/8 | 06 | 8.7 | 10.3 | 15.1 | 16.7 | 2.8 | 406 | 11.2 | 75 | 0.21 |
12.5 | 1/2 | 08 | 11.9 | 13.5 | 19.0 | 20.6 | 2.8 | 406 | 11.2 | 100 | 0.27 |
16 | 5/8 | 10 | 15.1 | 16.7 | 22.2 | 23.8 | 2.4 | 348 | 9.6 | 9.6 | 0.32 |
19 | 3/4 | 12 | 18.3 | 19.9 | 25.4 | 27.8 | 2.1 | 305 | 8.4 | 8.4 | 0.42 |
Q1: What types of hydraulic fluids can this SAE 100R6 Hydraulic Hose handle?
This hose is specifically designed for petroleum-based hydraulic fluids and lubricating oils commonly used in low-pressure hydraulic systems, return lines, and drain lines. For compatibility with other fluids such as water-glycol or phosphate esters, please consult our technical team for specific recommendations.
Q2: What is the working temperature range of the hose?
The SAE 100R6 hydraulic hose operates effectively within a temperature range of approximately -40°C (-40°F) to +100°C (212°F), making it suitable for various industrial and mobile equipment applications operating in diverse climatic conditions.
Q3: What are the working pressure ratings for different sizes?
Working pressures vary by inner diameter, typically ranging from 13 bar (190 psi) for larger sizes up to 28 bar (400 psi) for smaller diameters. Please refer to our technical data sheet for specific pressure ratings for each size and construction option.
Q4: What are the available sizes and minimum bend radii?
The hose is available in inner diameters ranging from 1/4 inch (6 mm) to 1 inch (25 mm). Minimum bend radii vary by size, typically from 50 mm to 125 mm, allowing for flexible routing in tight spaces common in compact machinery and equipment.
Q5: What type of end fittings are compatible with this hose?
This hose is compatible with standard SAE 100R6 fittings, including crimp-type and field-attachable fittings. Common connection types include JIC, NPT, BSP, and ORFS configurations according to customer requirements and system specifications.
Q6: What standards does this hose meet?
This hose is manufactured in accordance with SAE 100R6 and EN 854 R6 standards, ensuring compliance with international requirements for low-pressure hydraulic hose applications in industrial and mobile equipment.
Q7: What are the standard hose lengths available?
Standard hose lengths are typically available in random lengths up to 100 meters in continuous coils. Custom cut lengths with pre-assembled fittings can be produced to meet specific equipment and installation requirements.
Q8: Is this hose suitable for suction applications?
No, this SAE 100R6 hose is designed for return lines, drain lines, and low-pressure delivery applications. It is not suitable for suction/vacuum service. For suction applications, please consult our selection of suction-rated hydraulic hoses.
Q9: What are the main advantages of SAE 100R6 compared to other hydraulic hoses?
The SAE 100R6 hose offers a compact, lightweight design with excellent flexibility, making it ideal for tight-space installations where higher-pressure hoses would be too rigid or bulky. Its smaller outside diameter allows for easier routing in complex hydraulic systems.
Q10: What type of reinforcement is used in this hose?

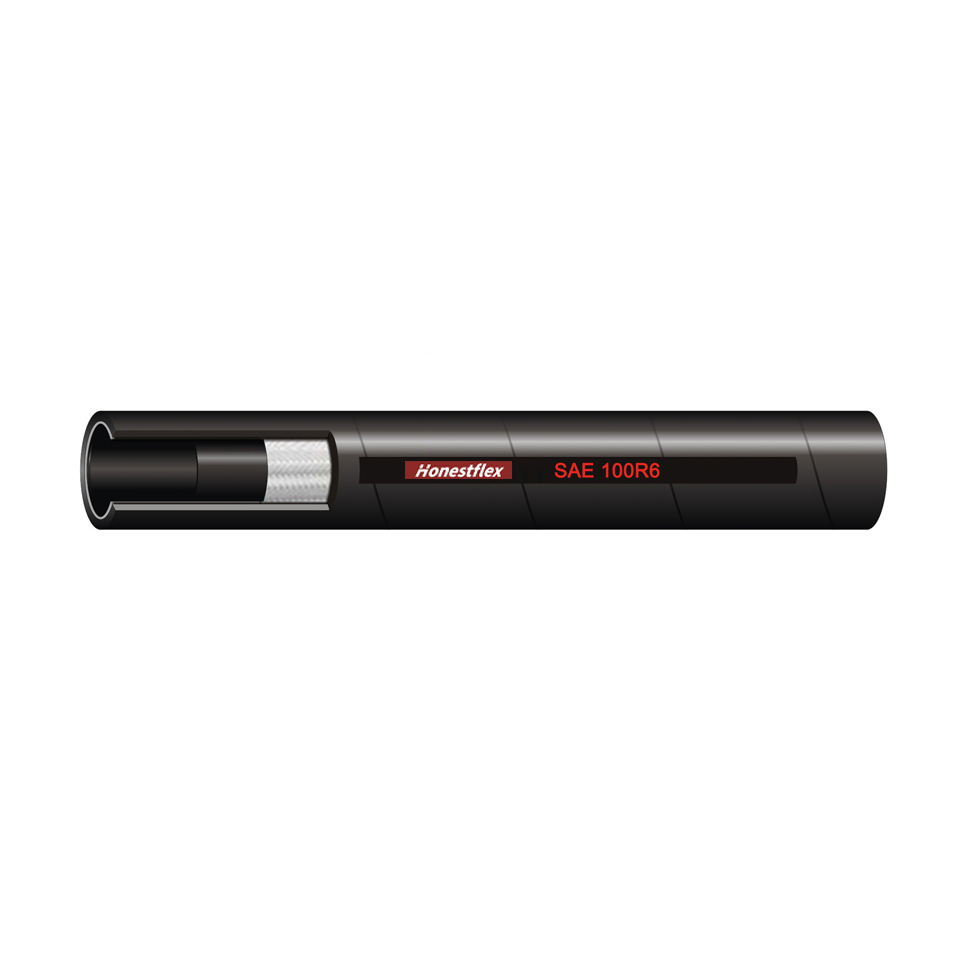

The hose features a single layer of high-strength textile yarn braid reinforcement, providing excellent flexibility and pressure resistance for low-pressure hydraulic applications while maintaining a compact and lightweight construction.
Q11: Can this hose be used for fuel or oil transfer applications?
While the hose is compatible with petroleum-based oils, it is specifically designed for hydraulic applications. For dedicated fuel transfer or constant fuel conveyance, please consult our range of fuel-rated hoses designed specifically for those applications.
Q12: Is this hose resistant to abrasion and weathering?
Yes, the outer cover is manufactured from synthetic rubber that provides good resistance to abrasion, oil, weathering, and ozone, ensuring reliable performance in typical industrial and mobile equipment environments.
